Cedral Bluclad Proboard - Fibre Cement Exterior Render Board

Verified by manufacturer 10 days ago

Cedral

High performance fibre cement board for external application.

Jump to:
+44 (0)1283 501 555 Website

Application

Its range of uses are:

  • Render carrier board on timber or metal frames for ventilated facade systems.
  • Render carrier board for the thermal upgrade of existing masonry walls.
  • Carrier board for brick slips for ventilated facades on timber or metal frames.
  • Render carrier board for external ceilings.

Description

Cedral Bluclad Proboard is a high-performance fibre cement board for external applications. Its main use is to provide a good, stable surface for a direct render facade – smooth or textured.

Bluclad Proboard has a long-standing heritage and is a tried and tested carrier board for specifications and professionals.

Features and benefits:

  • Has a BBA Certificate with the weberend MT system.
  • Does not require time-consuming joint treatment before rendering.
  • Is CE certified and approved by major European render manufacturers.
  • Has an Environmental Product Declaration available according to ISO 14025.
  • Improves the impact resistance of the facade for high traffic areas.
  • Improves the sound insulation of the facade.
  • It is not system-bound, so accessories can be freely selected.
  • It is extremely durable and has a long life expectancy.
  • Is not affected by mould and is resistant to rodents, termites and other insects.
  • Is water repellent and can be exposed to weather without rendering for up to 3 months.
  • Cedral has a long-standing commitment to ensuring the facade materials comprehensively meet the fire performance classification A2-s1,d0 to EN 13501-1:2018.
  • Installation is simple. A 3 mm gap is required between boards. Joints do not need to be treated prior to rendering which supports a speedy installation.

General information

Color

Beige

Finish

Smooth

Textured

Material

Fibre cement

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

10 mm

Manufacturer guidance

Thickness.

Uniclass

Pr_25_71_80_23 Fibre-reinforced calcium silicate boardsPrimary

CAWS

H30/10 Fibre cement

H30/120 Fibre cement

H20/10 Sheet cladding

H20/155 Sheet cladding (attached to timber battens)

H20/150 Sheet cladding (attached to metal support systems)

Specification data - Fibre-reinforced calcium silicate boards

Classification data

Supplied by

Cedral.

Standard

To BS EN 12467.

Reaction to fire class

To EN 13501-1, A2-s1, d0.

Weather resistance

To BS EN 12467, Category B.

Third-party product certification

British Board of Agrément (BBA) Certificate.

Sheet size

2400 x 1200 mm.

Thickness

10 mm.

Manufacturer guidance

Tolerance: +5%.

Edges

Square.

Finish as delivered

Smooth.
Textured.

Colour

Beige.

Environmental information

-

Environmental rating

Environmental Product Declaration available according to ISO 14025.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

5.8%.

Nominal weight

14.2 kg/m².

Dry density

1180 kg/m².

Bending strength

14 N/mm² (perpendicular); 8.5 N/mm² (parallel).

Modulus of elasticity

9.0 N/mm² perpendicular.
7.8 N/mm² parallel.

Movement

0.7 mm/m.

Manufacturer guidance

Hydric movement.

Thermal conductivity

0.212 W/m·K.

Coefficient of thermal expansion

<6.5E-6 m/mK.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Guidance for specification option:

Europe/ World.

Country of product manufacture

Belgium

Manufacturing plant location

Material

Fibre cement

A1-A3 (production stage)

Normalised unit

4.16 kg CO₂ eq/kg

Declared unit

4.16 kg CO₂ eq/kg

Self-declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

5.8 %

Guidance for specification option:

Bluclad Proboard contains 17.9% circular content:

  • 5.8% pre-consumer recycled content.
  • 4.1% other Waste-derived material content.
  • 8.0% renewable material content.

Expected Life

60 year

Literature

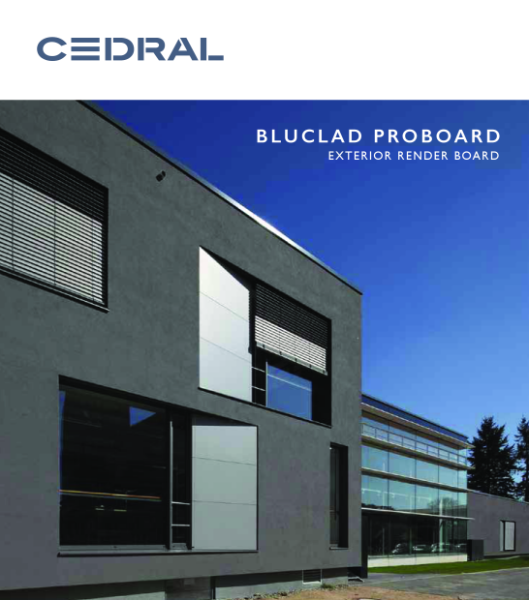

Cedral Bluclad Proboard

Cedral Bluclad Proboard

Cedral Bluclad Proboard Application Guidelines

Cedral Bluclad Proboard Application Guidelines

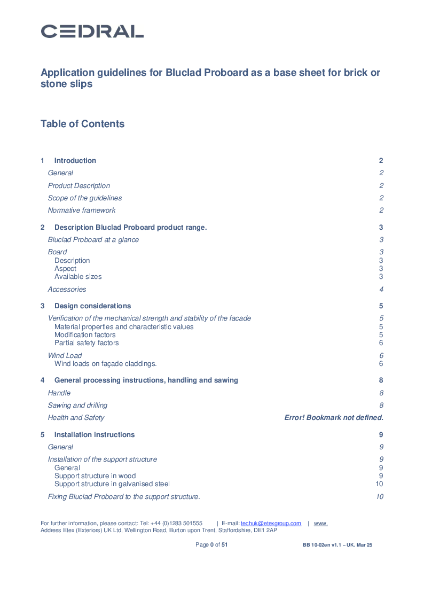

Application guidelines for Bluclad Proboard as a base sheet for brick or stone slips

Application guidelines for Bluclad Proboard as a base sheet for brick or stone slips

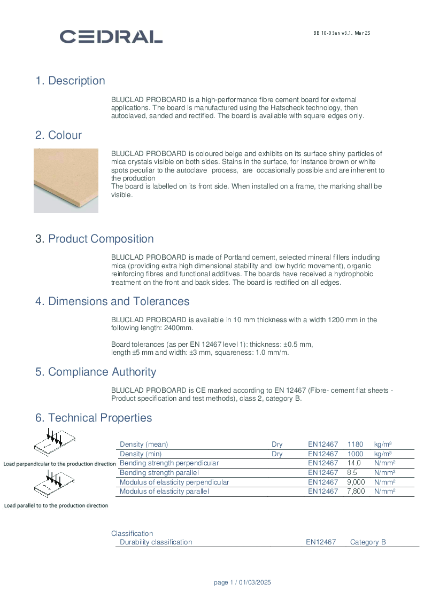

Cedral Bluclad Proboard Material Information Sheet

Cedral Bluclad Proboard Material Information Sheet

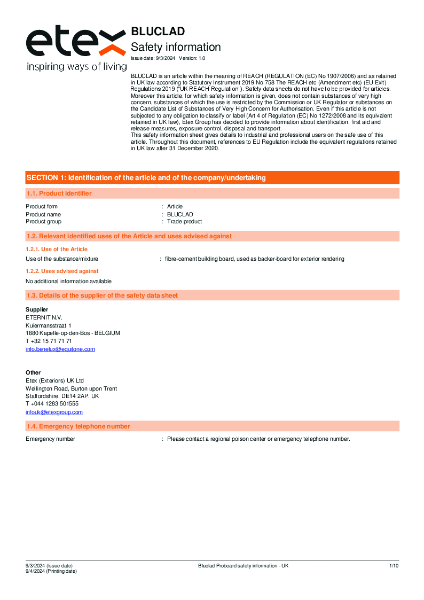

Cedral Bluclad Proboard Safety Information

Cedral Bluclad Proboard Safety Information

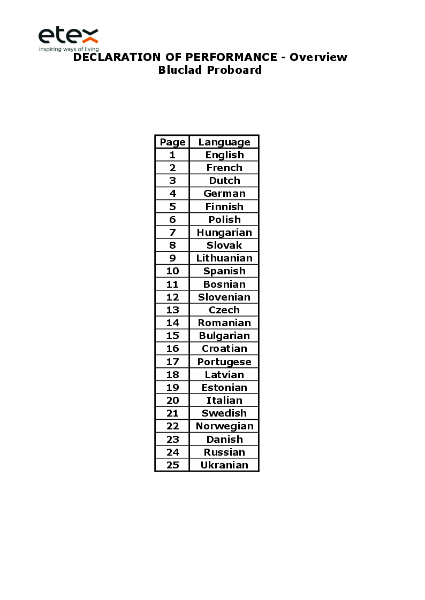

Cedral Bluclad Proboard Declaration of Performance

Cedral Bluclad Proboard Declaration of Performance
