Celotex XPS 300 SL FN - Thermal Insulation Board
Verified by manufacturer 5 days ago
Thickness: 40 mm
Thickness: 40 mm
Rigid extruded polystyrene (XPS) thermal insulation board.
Application
Mainly used as thermal insulation for floors, underground constructions, and basements.
Description

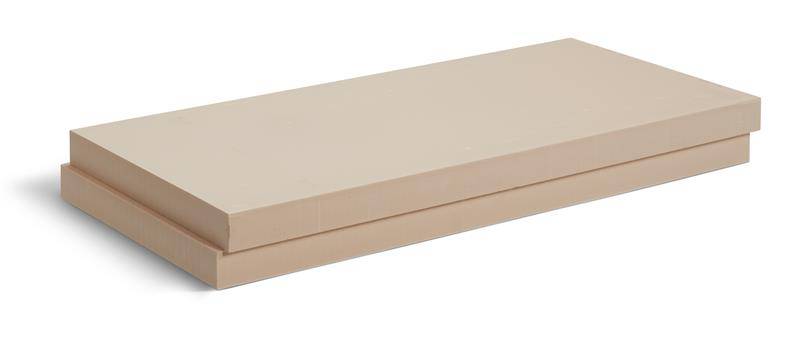

Celotex XPS 300 SL FN is a rigid thermal insulation board made of extruded polystyrene (XPS) foam.
Features and benefits:
- Lightweight 1250 x 600 mm and 2500 x 600 mm boards.
- Compressive strength of 300 kPa.
- Rebate edge profile.
- BBA approved.
General information
Color | Orange |
Finish | Smooth |
Material | Extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1250 mm 2500 mm |
Width | 600 mm |
Height | 40 mm 50 mm 60 mm 80 mm 100 mm |
Uniclass | |
CAWS | M40/27 Intermediate substrate M40/470 Intermediate substrate |
Specification data - Extruded polystyrene (XPS) boards
Classification data | |
Standard | To BS EN 13164. |
Third-party certification | British Board of Agrément (BBA) certification. |
Fire performance | To BS EN 13501-1, Euroclass F. |
Compressive strength (minimum) at 10% compression | 300 kPa. |
Thermal conductivity (maximum) | 0.032 W/m.K. |
Thickness | 40 mm. |
Face size (length x width) | 1250 x 600 mm. 2500 x 600 mm. |
Facing | Unfaced. |
Edges | Rebated. |
Thermal resistance | 1.25 m².K/W. |
Density | 34 kg/m³ (±15%). |
Thickness tolerance | T1. |
Sustainability data
Material | Extruded polystyrene (XPS) |
