Verified by manufacturer 3 months ago
16786
EPD
Certificate type

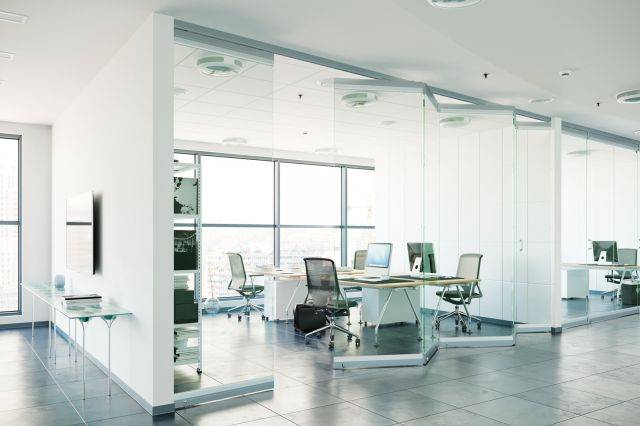

Centre-folding hardware for all-glass concertina walls with panel weights up to 80 kg.
Suitable for residential and commercial settings, including:
Centre-folding hardware for all-glass concertina walls without a bottom guide channel, for panel weights up to 80 kg.
Features and benefits:
Components:
Quantities of each component will vary dependent on variant specified, consult manufacturer for details.
Color | Grey |
Finish | Anodized Chrome Guidance for specification option: Dull chromium finish. |
Material | Aluminium Zinc |
Shape | Rectangle |
Length | 6500 mm |
Height | 2600 mm |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Standard | To EN 1527:1998. |
Third party certification | LGA Qualitätszertifikat. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 2. |
Initial friction | 3. |
Form | Aluminium, plain anodized, pre-drilled, sliding, stacking, centre folding running track and bottom guide channel. |
Running track | 6000 mm. Cut to size. Guidance for specification option: Insert requirements. |
Bottom guide channel | 6000 mm. Cut to size. Guidance for specification option: Insert requirements. Manufacturer guidancePre-drilled, 31 x 28 mm. |
Suspension/ Retainer profile | Aluminium, plain anodized, brushed. Aluminium, plain anodized, brushed (straight). Aluminium, un-anodized. |
Length | 6500 mm. Cut to size. Guidance for specification option: Insert requirements. Manufacturer guidanceSuspension/ retainer profile. |
Hinges | Zinc alloy, dull chromium finish. Zinc alloy, dull chromium finish (straight). Zinc alloy, raw finish. |
Locking | Hawa bar bolt lock with retention pin, 17 mm profile cylinder. Guidance for specification option:
Hawa bar bolt lock with retention pin, 22 mm round cylinder. Guidance for specification option:
Hawa bar bolt lock, square/ hexagon socket 7/ 8 mm, complete with pivot. Guidance for specification option:
Manufacturer guidanceVarious accessories are available, consult manufacturer for details. |
Accessories/ Other requirements | Not required. Additional top lock. Brush seal for glass suspension and retainer profile. Cover cap. Guidance for specification option:
Drilling jig, for hinge retention bolts. Manufacturer guidanceOther accessories and spares are also available, consult manufacturer for details. |
Maximum width per module | 1400 mm. |
Panels | Set for 1½ panels. |
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
