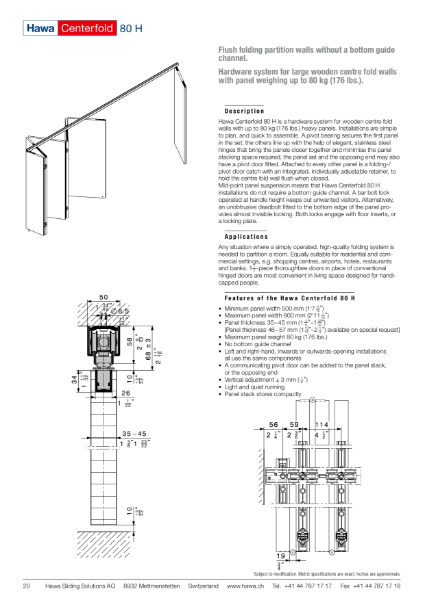

Centerfold 80 H (Folding Sliding Wall Hardware)

Name: Centerfold 80 H (Folding Sliding Wall Hardware)
Brand: Hawa Sliding Solutions AG
SKU: cJ8qXnT7pWMZs8ppyWcbBB

Verified by manufacturer 4 months ago

19535

Third party certifications:

Door hardware for large wooden centre folding walls with panel weights up to 80 kg.

Jump to:

Application

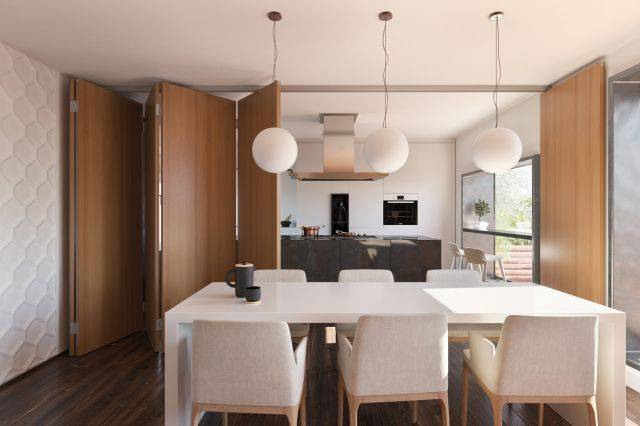

Suitable for residential and commercial settings, including:

Door hardware for large wooden centre folding walls without a bottom guide channel, for panel weights up to 80 kg.

Features and benefits:

Quick assembly.
Panel width: 500–900 mm.
Suitable for door panel thickness of 35–57 mm.
Left and right-handed configurations, as well as inwards or outwards-opening installations can all be achieved using the same components.
Light and quiet running.
A pivot bearing secures the first panel in the set. The other panels line up with the stainless steel hinges that bring the panels closer together and minimize the panel stacking space required.
Attached to every other panel is a folding (pivot) door catch with an integrated, individually adjustable retainer, to hold the centre fold wall flush when closed without operating a locking mechanism.
A communicating pivot door can be added to the panel stack, or the opposing end, consult manufacturer for details.
Has mid-point panel suspension, which means that the installation does not require a bottom guide channel.
Hollow cross-section seal strips eliminate the problem of light penetrating through gaps between panels.
Choice of locking configurations available.
Vertical adjustment (±3 mm).

Installation and design:

One-sided installations, filling an aperture up to 6000 mm width are possible using the one-panel basic sets, supplementary and pivot door sets (or double this figure for two-sided installations).
Consult manufacturer for further details.

Components:

Quantities of each component will vary dependent on variant specified, consult manufacturer for details.

Top pivot bearing.
Folding pivot door catch (adjustable).
Four-wheeled trolley M10, plastic-tyred wheels and suspension plate (19535 only).
Four-wheeled trolley M10, plastic-tyred wheels with suspension plate and spacer (19536 only).
Suspension profile, aluminium, 208 mm (plain anodized, predrilled).
Suspension profile, aluminium, 550 mm (plain anodized, predrilled).
Thrust bearing sleeve, 20 mm including driver.
Plastic cover cap for top fixed suspension, anthracite grey RAL 7016.
Vertical adjustment key.
Suspension assembly locking wrench.
Fork spanner SW 13 mm.

Color	Grey Silver
Finish	Anodized
Material	Aluminium Stainless steel Steel
Shape	Rectangle
Warranty description	Two year

Uniclass	Pr_30_36_36_23 Door track and running gearPrimary
CAWS	P21/10 Door track and running gear P21/350 Door track and running gear

Standard	To EN 1527:1998.
Third-party certification	LGA Qualitätszertifikat.
Classification grades (minimum)	-
Durability	6.
Door mass	2.
Initial friction	3.
Form	Running track: Aluminium, plain anodized, pre-drilled, sliding, stacking, centre folding, Hinges: Stainless steel, grade 1.4401 (316). Guidance for specification option: Hinges with heavy load bearings and fixing screws. Panels up to 2500 mm tall require two hinges. Panels up to 3500 mm tall require three hinge. Insert quantity for hinges.

Running track	6000 mm. Cut to size. Guidance for specification option: Insert requirements.
Hollow seals	Guidance for specification option: Insert quantity. Provided in rolls of 10 m (black, rubber).
Locking	Not required. Bar bolt lock. Guidance for specification option: Allows locking of the folding wall at handle height. Square or hexagonal socket, backset 42.5 mm. Deadbolt. Guidance for specification option: Provides unobtrusive, barely visible locking at the panel bottom edge. Galvanized steel deadbolt, 13 mm. Manufacturer guidance Additional deadbolt or bar bolt locks may be fitted for safety and to keep out unwanted visitors. Both locks engage with floor inserts, or a locking plate. Locking from the inside engages the floor-mounted sleeve (13787). Mortice locks can be used to secure pivot doors (supplied by others). Various locking positions and accessories are available including thumbturns and deadbolt lock keys, consult manufacturer for details.
Accessories/ Other requirements	Not required. Wall attachment. Guidance for specification option: Version A: With premises-fitted compensation strip and hollow seal (19657). Version B: Direct wall attachment, requires 6 mm clearance. Manufacturer guidance Other accessories and spares are also available, consult manufacturer for details.
Components	Basic set with pivot bearing, without guide.
