Ceramic Tiled Access Panel (EX08) - Beaded Frame - Non Fire Rated - Touch Catch - Tiled Access Panel
Verified by manufacturer 2 months ago

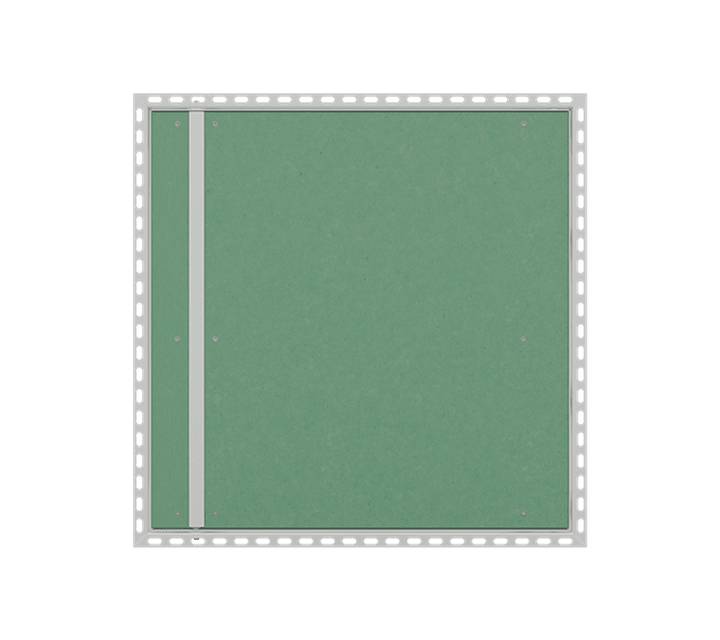

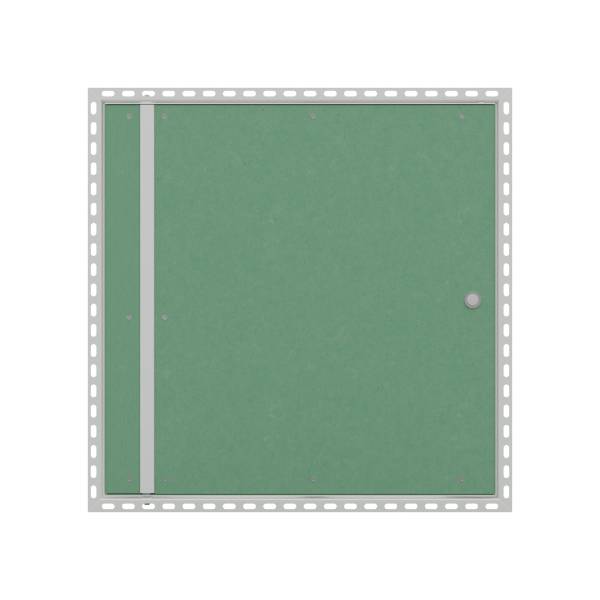

Metal Access Panel Tray with moisture board infill for tiling, Non Fire Rated, Beaded Frame, Touch Catch for an Extremely Discreet Finish.
Application
- Suitable for use in jointless plasterboard wall systems.
- Suitable for tiling.
Description
This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a perforated frame for tiles to adhere to. The panel has a moisture board faced door for applying ceramic tiles. The door leaf is locked in place via mini touch catches as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
- Manufactured from Zintec steel with a 1.5 mm thick door and a 1.5 mm frame.
- The door leaf is hinged by a fixed pivot hinge system.
- Available up to 1800 x 600 mm in a wall application.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plasterboard |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Wall-mounted. |
Size | Manufacturer guidanceInsert requirements. Available up to 1800 x 600 mm. |
Frame | Perforated for tiling. |
Panel | |
Material | Steel with moisture board infill. |
Integral finish | Powder-coated. |
Latch or lock type | Mini touch catches.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Operation | Concealed hinges, outward opening. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

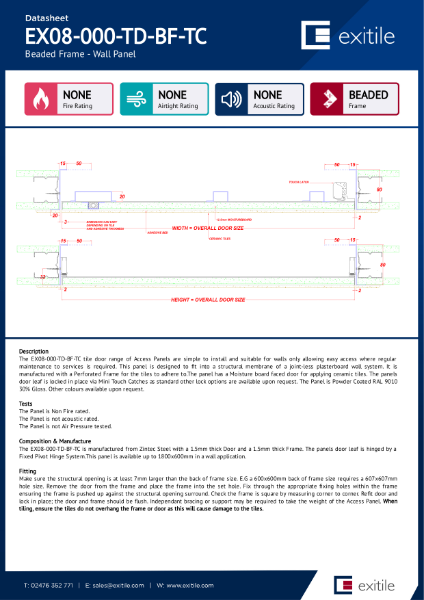

Datasheet - Tiled Access Panel (Range 8) - Beaded Frame - Non Fire Rated

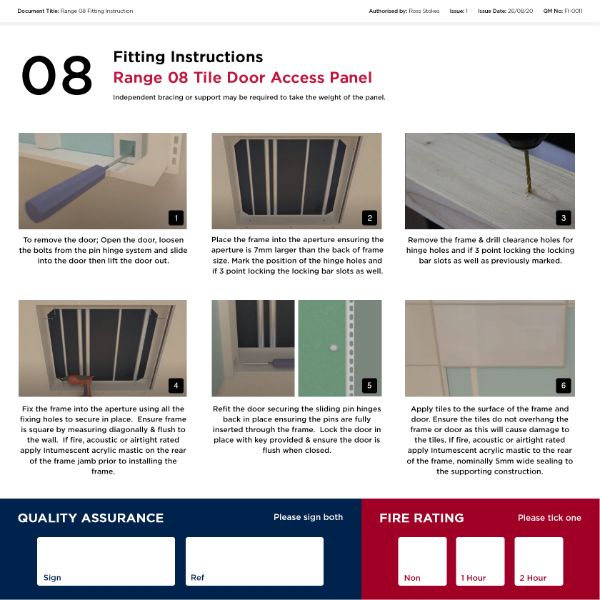

Fitting Instructions - EX08 Tile Door Range
