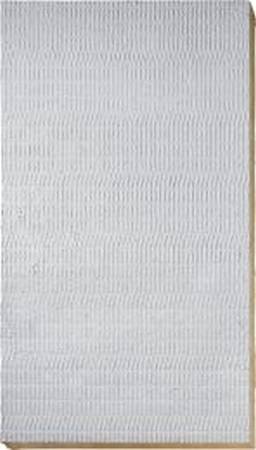

CFS-CT B Firestop Board
Verified by manufacturer 2 months ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Firestop Board
Application
- Mixed penetrations in flexible and rigid walls from 100 mm and rigid floors from 150 mm
- Cables, cable bundles, cable trays and cable conduits
- Non-combustible (metal) pipes with non-combustible insulation
- Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage or CFS-C P firestop collar
- Combustible pipes in combination with CFC-C P or CFS-C firestop collars or CFS-W firestop wrap
Description
Firestop coated board system with wide approval range.
Features and benefits:
- Board pre-coated for immediate use
- Strong bonding of coating on board to reduce cracking and delamination while cutting
- Broad approval range
- Smoke-tight coating
- Can be re-penetrated
General information
Color | White |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 50 mm |
Uniclass | |
CAWS | P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts P12/41 Mineral wool rigid batts - ablative coated |
Specification data - Compressed mineral wool fire protection boards
Fire rating | Up to 2 hours. |
Thickness | 50 mm. |
Edges | Square. |
Colour | White. |
Application temperature | 5–40°C. |
Temperature resistance | -40 to +100°C. |
Bacteria resistance (to EN846) | Class 0. |
Acoustic performance | ≤62 dB. |
Third party certifications
European Technical Approval (ETA)
ETA-11/0429 for CFS-CT Firestop Coating Double Board for Penetrations
UK Technical Assessment (UKTA)
UKTA22 0052 CFS-CT B Board
