CFS-FIL Filler Mastic

Verified by manufacturer 12 days ago

Hilti (Gt Britain) Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • UK Technical Assessment (UKTA)

    UK Technical Assessment (UKTA)

    Certificate type

Firestop Filler Mastic

Jump to:
+44 (0)800 886100 Website

Application

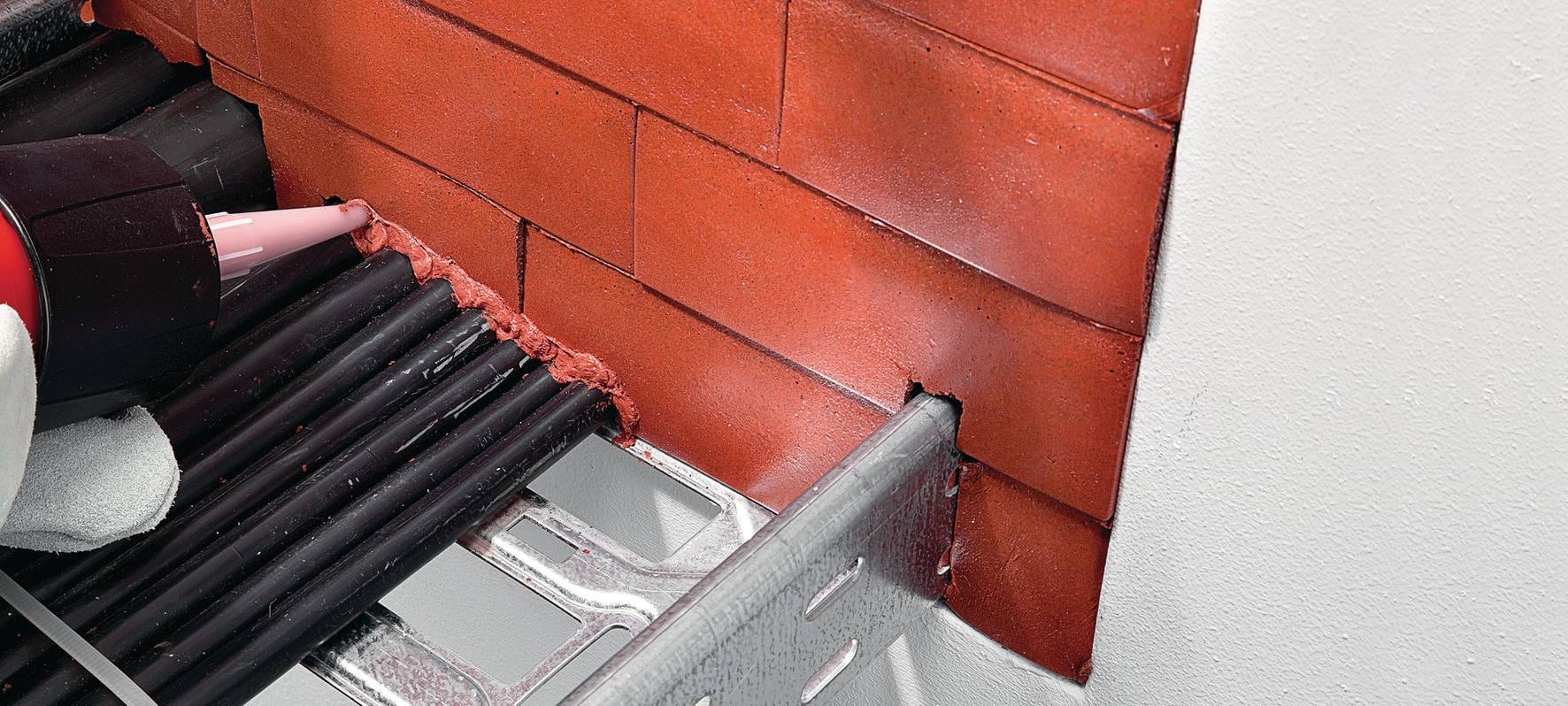

  • Suitable for aerated concrete or concrete substrates.
  • Approved to seal single cables, cable bundles and cPVC pipes Blazemaster and Spears.
  • For use with CFS-BL firestop block, CFS-BL P firestop block, CFS-PL firestop plug, CFS-CC firestop cable collar and CFS-RCC firestop cable collar.
  • Range of approved applications publicly present in 3rd party documents: UKTA – 22/0049


Description

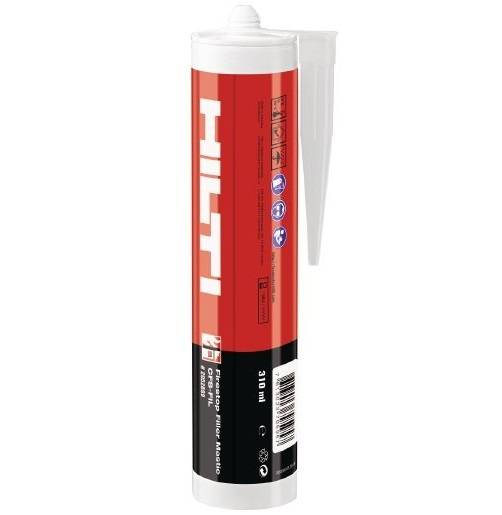

CE marked, firestop filler mastic for use in combination with firestop blocks, plugs and cable collars.


Features and benefits:

  • Fits the CFS-DISP and CS 270-P1 dispensers.
  • Easy to work with and fast clean up.
  • Water-based.
  • Fire resistance rating of up to two hours.
  • ETA-10/0291.

General information

Color

Red

Material

Acrylic

Manufacturer guidance

Water-based 1-component acrylic sealant with intumescent fire protection additives and binder.

Shape

Formless

Uniclass

Pr_30_31_76_02 Acrylic construction joint sealantsPrimary

CAWS

P12/48 Sealant – fire-resisting acrylic

Specification data - Acrylic construction joint sealants

Standard

To EN 1366-3.

Third-party certification

ETA-13/0099, ETA-13/0125, ETA-13/0704, ETA-20/0990, ETA-21/0256, UKTA22 0049.

Sealant type

Water based acrylic.

Colour

Red.

Fire performance

-

Fire resistance

Up to two hours.

Application temperature

2–40°C.

Temperature resistance

-20 to +60°C.

VOC emissions

9 g/L.

Curing time

2 mm/ 3 days.

Reaction to fire class

Class E.

Third party certifications

European Technical Approval (ETA)

ETA-13/0125 for CFS-PL Firestop Plug for Penetrations

European Technical Approval (ETA)

ETA-21/0256 for CFS-FIL Firestop Filler Mastic for Penetrations

UK Technical Assessment (UKTA)

UKTA22 0049 CFS-FIL

European Technical Approval (ETA)

ETA-20/0990 CFS-RCC

European Technical Approval (ETA)

ETA-13/0704 CFS-CC

European Technical Approval (ETA)

ETA-13/0099 for CFS-BL firestop block for penetration
