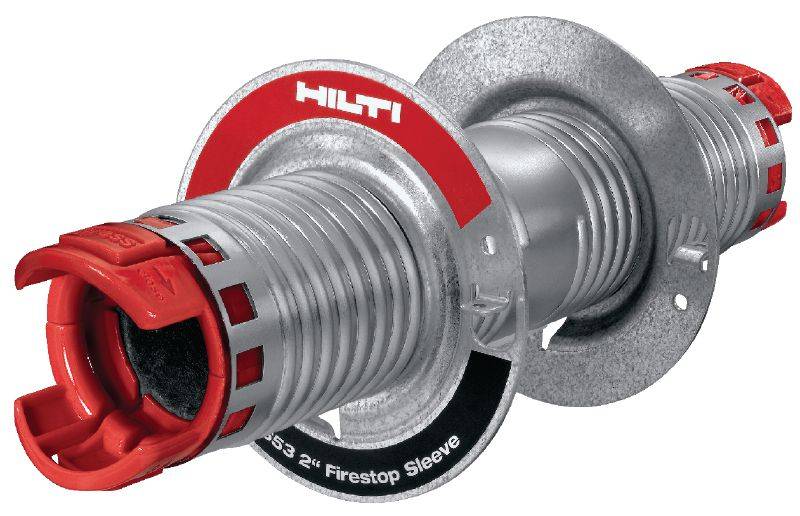

CFS-SL Firestop Speed Sleeve
Verified by manufacturer 29 days ago
CFS-SL Medium
CFS-SL Medium
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Firestop speed sleeve.
Application
- Suitable for small to medium-sized circular openings in drywall, concrete, masonry, clt panels, and sandwich panel walls or rigid ceilings.
- For use where cable configurations are regularly changed, such as in data centres, server rooms, hospitals, event halls or production plants.
- Range of approved applications publicly present in 3rd party documents: ETA-20/1234.
Description
Firestop sleeve for sealing penetrations of single cables and cable bundles.
Features and benefits:
- Easy to install and to inspect.
- Fully functional immediately after installation.
- Robust.
- Optimum smoke-proofing performance.
- Easy subsequent installation of additional cables.
- Fire resistance rating of up to two hours.
- Mould and mildew resistant.
- Easy re-penetration.
General information
Color | Red Black Silver |
Material | Metal |
Shape | Other Guidance for specification option: Cylinder. |
Length | 315 mm 415 mm |
Width | 63 mm 113 mm |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Specification data - Concealed intumescent pipe collars
Sizes | 113 x 315 mm. |
Fire performance | Up to 180 minutes.Guidance for specification option: Dependent on substrate and application. |
Air leakage | 0.24 m³/h at 10 Pa.4.79 m³/h at 600 Pa. |
Application temperature | -5 to +50°C. |
Temperature resistance | -30 to +100°C. |
Reaction to fire | To BS EN 13501-1, Class E. |
Diameter | 113 mm. Manufacturer guidanceOutside diameter. |
Opening size | Manufacturer guidance113–122 mm recommended. |
Thickness | Manufacturer guidance100–200 mm wall/ floor thickness. |
Position | Fitted in hole or opening. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Third party certifications
European Technical Approval (ETA)
ETA-20/1234 for CFS-SL GA Firestop Speed Sleeve
UK Technical Assessment (UKTA)
UKTA22 0036 for CFS-SL GA Firestop Speed Sleeve
