CFS-VB

Verified by manufacturer 2 months ago

FIRESTOP CAVITY BARRIER CFS-VB E60 25 mm

Hilti (Gt Britain) Ltd Variant:
Third party certifications:
  • Certificate of Compliance

    Certificate type

Ventilated Fire Cavity Barrier.

Jump to:
+44 (0)800 886100 Website

Application

  • Suitable for firestopping ventilated rain screen cladding façades with gaps of 50mm or 25 mm or less.Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding while leaving air gaps up to 50 mm for greater installation tolerance
  • Verified fire resistance for 120 minutes integrity and 30 minutes insulation for 25mm air gaps and 60 minutes integrity and 30 minutes insulation for 50mm air gaps according to ASFP TGD19


Description

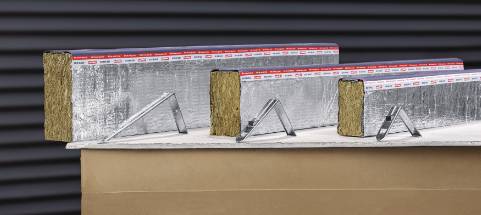

Pre-formed fire cavity barrier for rainscreen cladding with either 60 miutes fire integrity with air gaps up to 50mm or 120 minutes of fire integrity with air gaps up to 25 mm.


Features

  • Faster installations – new push-to-fit bracket system eliminates bending, cutting, and trimming, so you can install up to 40% faster than standard brackets
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of specialty applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for rainscreen cladding
  • Direct fastening tested – combine with our range of direct fastening solutions for even faster installations.
  • Mould and mildew performance Class 0 (ASTM G21, ISO 846 Method A).

General information

Color

Silver

White

Red

Black

Material

Mineral wool

Aluminium

Intumescent

Shape

Rectangle

Length

1200 mm

Width

50 mm

75 mm

100 mm

125 mm

150 mm

Show more

Height

80 mm

100 mm

Uniclass

Pr_25_80_80_44 Intumescent sleeved mineral wool cavity fire barriersPrimary

CAWS

P10/435 Ventilated cavity barriers

P10/77 Ventilated cavity barriers

Specification data - Intumescent sleeved mineral wool cavity fire barriers

Standard

To EN 13501-1.

Third-party certification

ASFP TGD-19.

Fire performance

Reaction to fire classification of A1, as defined in BS EN 13501-1.

Guidance for specification option:

Refers to the mineral wool component.

Material

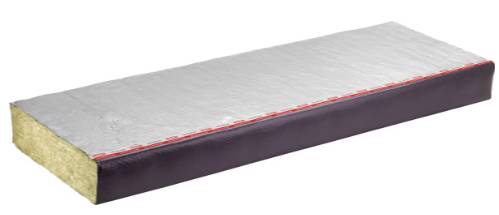

Aluminium foil-faced mineral wool slab.

Thickness

80 mm.

Cavity width

100 mm.

125 mm.

150 mm.

175 mm.

200 mm.

225 mm.

250 mm.

275 mm.

300 mm.

350 mm.

400 mm.

Air gap

25 mm (nominal).

Attachment

Push-to-fit bracket system.

Density

Mineral wool density: 80 kg/m³.

Durability

Durability (EOTA TR024) Type X.

Guidance for specification option:

Refers to the intumescent component.

ThermalConductivity

λ= 0.039 W/(mK).

Sustainability data

Material

Mineral wool

Aluminium

Intumescent

Expected Life

Lifetime

Third party certifications

Certificate of Compliance

CFS-VB Certificate of Compliance E120 - EN 13501-1

Certificate of Compliance

CFS-VB Certificate of Compliance - ASFP TGD-19

Literature

CFS-VB Standard Details

CFS-VB Standard Details

CFS-VB-E120 Technical Data Sheet

CFS-VB-E120 Technical Data Sheet

CFS-VB Operating Instructions

CFS-VB Operating Instructions

CFS-VB-E60-50mm Operating Instructions

CFS-VB-E60-50mm Operating Instructions

CFS-VB-E60-50mm Technical Data Sheet

CFS-VB-E60-50mm Technical Data Sheet

CFS-VB-E60-25mm Technical Data Sheet

CFS-VB-E60-25mm Technical Data Sheet
