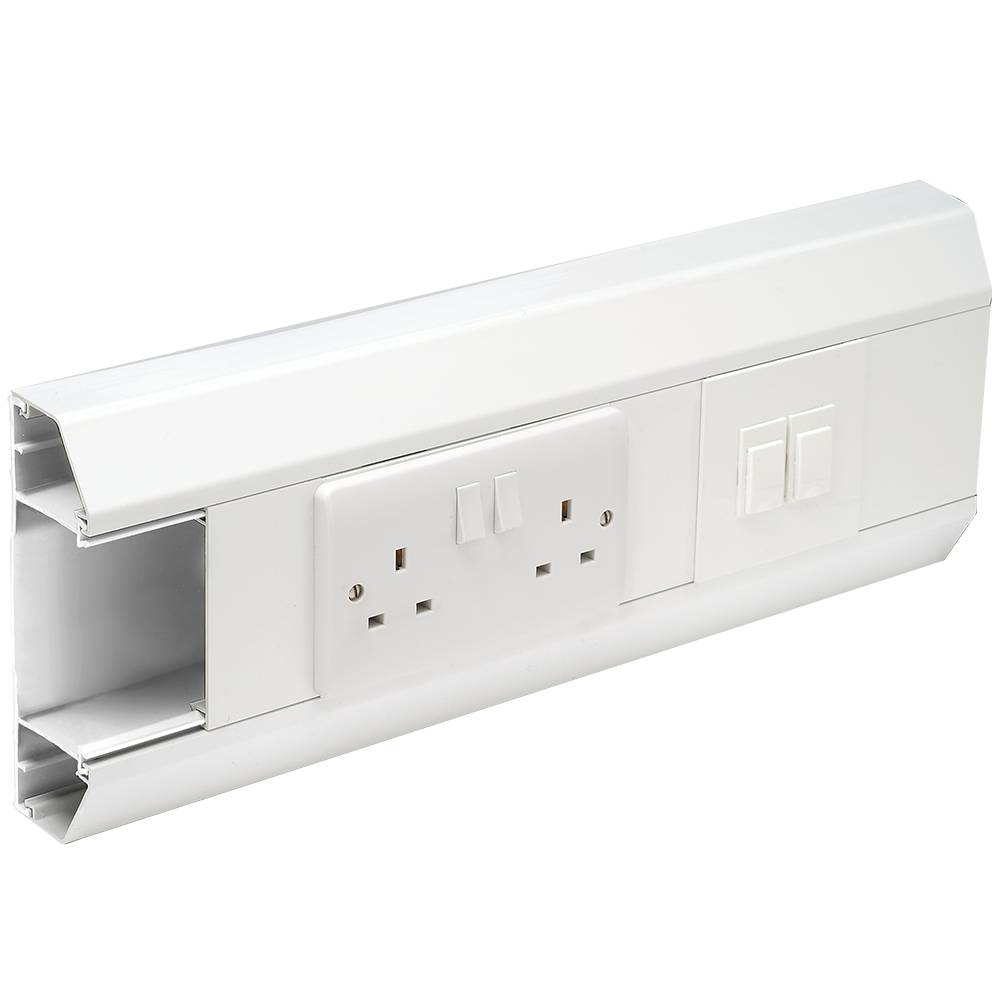

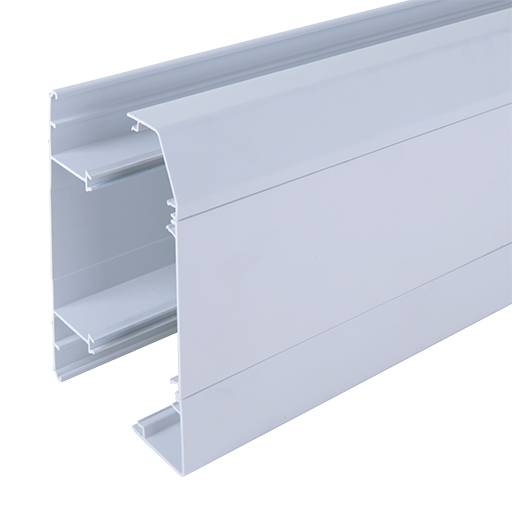

Challenger System 2 PVC-U Trunking
Verified by manufacturer 6 months ago
Perimeter dado and skirting system.
Application
Suitable for use in dado and skirting applications as well as for many different cable management installation needs.
Description
Challenger is a three compartment trunking system compliant up to Cat 7a, suitable for office school or college environments. This easy to install system, can be fitted at dado or skirting level and includes a pre-drilled base to speed up installation.
Features and benefits:
- 167 x 50 mm.
- Three segregated compartments.
- Suitable for dado and skirting application.
- Single piece moulded fittings.
- Flat tees and flat angles with integral bend radius control.
- Self-extinguishing and non-flame propagating PVC-U.
- Recycled PVC-U is utilized in the manufacturing process.
- Compliant up to Cat 7a.
- Standard bend radius 25 mm.
General information
Color | White Guidance for specification option: White (RAL9003). |
Material | PVC-U |
Shape | Rectangle |
Length | 3000 mm |
Width | 50 mm |
Height | 167 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Standards | To BS 7671:2018, BS EN 50085-1:2005+A1:2013, BS EN 50085-2-1:2006+A1:2011, BS 5733:2010+A1:2014, BS EN 60695-2-11:2014. |
Installation position | Surface mounted on the wall. |
Resistance to impact | 1 J.Guidance for specification option: IK06. |
Temperature properties | |
Storage and transport temperature (minimum) | -5°C. |
Installation and application temperature (minimum) | -5°C. |
Application temperature (maximum) | +60°C. |
Resistance to flame propagation | Non-flame-propagating. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | IP4X.Guidance for specification option: Protection against solid objects greater than 1 mm. |
Protection against ingress of water (minimum) | IP4X.Guidance for specification option: Protection level not formally tested. |
Protection against access to hazardous parts (minimum) | IP4X.Guidance for specification option: Protection against solid objects greater than 1 mm. |
Access method | Access via removable top, centre and bottom lids. |
Screening | Not required.Required.Manufacturer guidanceSpecial conductive spray coating can be applied to one compartment, the cover, accessory boxes and fittings, to screen data cables against EMI interference. For data/voice circuits only: Warning: Owing to its relatively high surface resistance, CS coating SHOULD NOT be in contact with low voltage circuits as per the current version of BS 7671 wiring regulations. 50 V.A.C. – 1000 V.A.C. unless additional measures are undertaken. |
Sizes | 167 x 50 mm |
Compartments | Three. |
Accessories and fittings | |
Types | Not required.Base unit.Main compartment cover.Angled cover.Square cover.Profile 2Coupler.Profile 2End cap.Profile 2Internal bend.Profile 2Internal bend cover.Profile 2Internal bend assembly.Profile 2External bend.Profile 2Flat angle –up/down cover (ABS).Profile 2 Flat angle –up/down complete (ABS).Profile 2Flat tee cover (ABS).Profile 2 Flat tee complete (ABS).Angled mini trunking adaptor MMT2.Angled mini trunking adaptor MMT4.Square mini trunking adaptor MMT2.Square mini trunking adaptor MMT4.Fire clip Sterling centre compartment.Fire clip Sterling angle & curve compartment.Fire clip Sterling square compartment.Main crossover bridge.Angled cable retainer.RCD/MCB Housing.1 gang accessory box.2 gang accessory box.Accessory box spacer.1 gang adjustable depth box.2 gang adjustable depth box.1 gang accessory plate.2 gang accessory plate.Steel screening divider.Steel screening divider bonding strap.Bonding strapScreened base unit(comp 1 & 3).Screened angled cover.1 gang screened accessory box.2 gang screened accessory box. |
Third-party certification | CAT 7A and EMI protection. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC-U |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 51 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
