Sovereign Plus Trunking
Verified by manufacturer 9 days ago

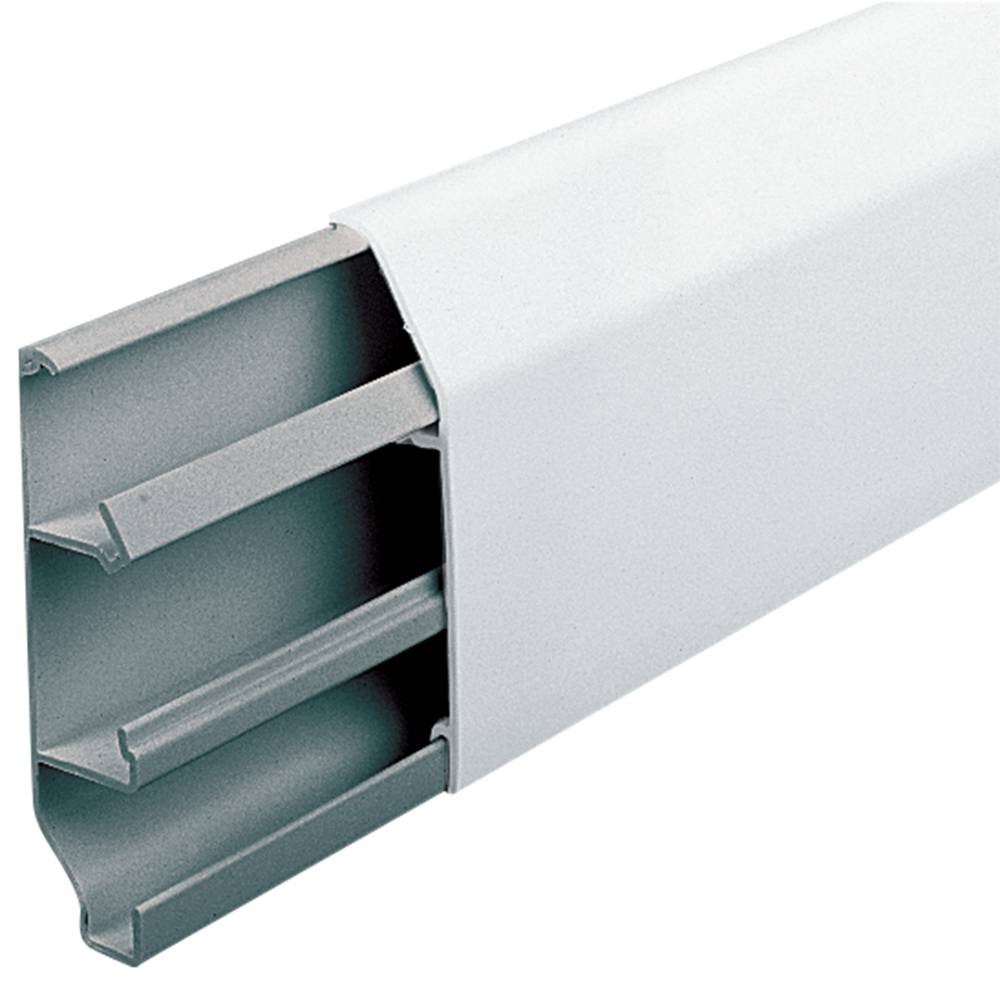

Sovereign Plus skirting trunking is a slim trunking system suitable for installation into hotels, small offices and residential properties.
Application
Suitable for skirting and architrave applications.
Description
Sovereign plus trunking.
Features and benefits:
- 75 x 20 mm.
- Three compartments.
- Suitable for skirting applications.
- Overlapping fittings.
- Accessory boxes designed to accept square and radius corner accessories.
- Designed for use with MMT2 mini trunking.
- Self extinguishing and non-flame propagating PVC-U.
General information
Color | White Guidance for specification option: White (RAL9003). |
Finish | Matt |
Material | PVC-U |
Shape | Rectangle |
Length | 3000 mm |
Width | 20 mm |
Height | 75 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Standards | To BS 7671:2018, BS EN 50085-1:2005+A1:2013, BS EN 50085-2-1:2006+A1:2011, IEC 61084-1:2017 and IEC 61084-2-1:2017. |
Installation position | Suitable for skirting applications. |
Resistance to impact | 1 J. |
Temperature properties | |
Storage and transport temperature (minimum) | -5°C. |
Installation and application temperature (minimum) | -5°C. |
Application temperature (maximum) | +60°C. |
Resistance to flame propagation | Non-flame-propagating. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | IP4X. |
Protection against ingress of water (minimum) | IP4X. |
Protection against access to hazardous parts (minimum) | IP4X. |
Access method | Access via removable top, centre and bottom lids. |
Sizes | 75 x 20 mm. |
Compartments | Three. |
Accessories and fittings | |
Types | Couplers.End caps.Internal bends.External bends. |
Materials | PVC-U. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC-U |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Sovereign Plus Product Data Sheet
