Chicago Metallic™ T15 Click 2790 Grid

Verified by manufacturer 2 months ago

Rockfon Third party certifications:
  • EPD

    EPD

    Certificate type

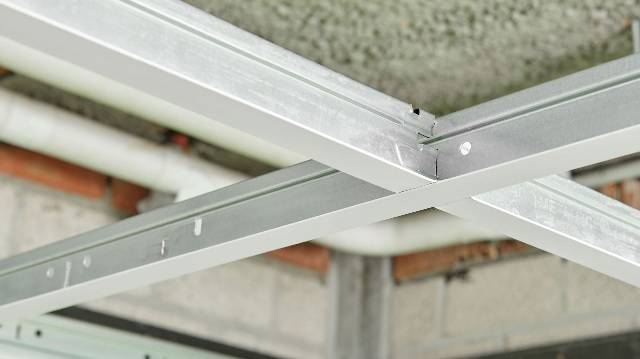

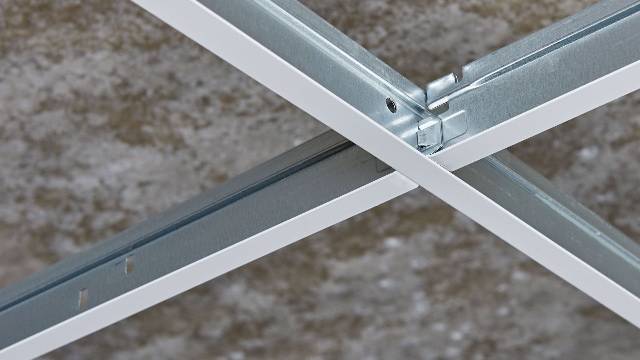

15 mm grid with universal main runner and joggled end cross tees.

Jump to:
+44 (0)208 2227457 Website

Application

Used to create semi-concealed and exposed ceiling solutions.

Description

15 mm grid with universal main runner and joggled end cross tees.


Features and benefits:

  • Features an audible 'click' for fast and accurate installation.
  • 38 mm high components allow for better load bearing and compatibility with accessories.
  • Strong and stable grid that can be easily demounted frequently.
  • Used for creating more discreet grid lines in the ceiling finish.
  • Can be fully recycled.
  • Other configurations may be available – consult manufacturer for details.


Suitable tile thickness:

12–25 mm.


Compatible edge details:

Stone wool A15, E15.


Compatible module sizes:

600, 1200, 1800, 2100 and 2400 x 600 mm.


Compatible edges, grids and systems:

  • A15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System T15 A™.
  • AM15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System Metal AM, EM™.
  • E15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System T15 E™.
  • EM15: Use with Chicago Metallic T15 2790 Click Grid to create Rockfon® System Metal AM, EM™.


Suspension clearance:

  • Minimum: 50 mm.
  • Easy access: 100 mm.

General information

Color

White

Guidance for specification option:

White 001, standard.

Black

Guidance for specification option:

Special order: Matt black 88.

Other

Guidance for specification option:

  • Other colours available by special order, including Matt White 11 and 34 matching colours for the Rockfon Colour-all tile range.
  • Consult manufacturer for details.

Finish

Semi-gloss

Material

Steel

Length

3600 mm

Width

15 mm

Height

38 mm

Uniclass

Pr_20_85_32_22 Demountable suspended ceiling gridsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

K40/250 Suspension system

K40/260 Perimeter trims

Product range

Grids

Specification data - Demountable suspended ceiling grids

Grid type

-

Exposed

15 mm grid with universal main runner and joggled end cross tees.

Components

Perimeter trims, main runners and cross tees.

Finish as delivered

-

Colour

White 001.

Special order.

Guidance for specification option:

  • Other colours are available including Matt Black 88, Matt White 11, and 34 matching colours for the Rockfon Color-all tile range.
  • Consult manufacturer for details.

Perimeter trim

L19 x 32.

Guidance for specification option:

Perimeter wall angle trim, 32 x 19 x 3050 mm.

W8 x 12.

Guidance for specification option:

Shadow angle 15 x 12 x 8 x 15 x 3050 mm.

Enhanced Corrosion Resistance (ECR)

Not required.

Required.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Poland

Recyclability

100%

Third party certifications

Third party certifications

EPD

EPD

EPD Rockfon Chicago Metallic grids and grid components
