Chicago Metallic™ T24 Click 2890 Grid - Suspension grid for suspended ceiling

Verified by manufacturer 2 months ago

Rockfon Third party certifications:
  • EPD

    EPD

    Certificate type

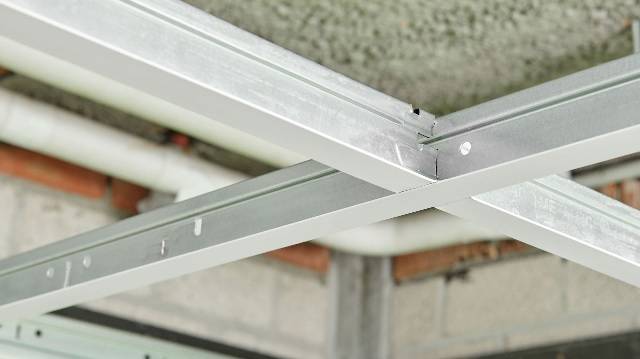

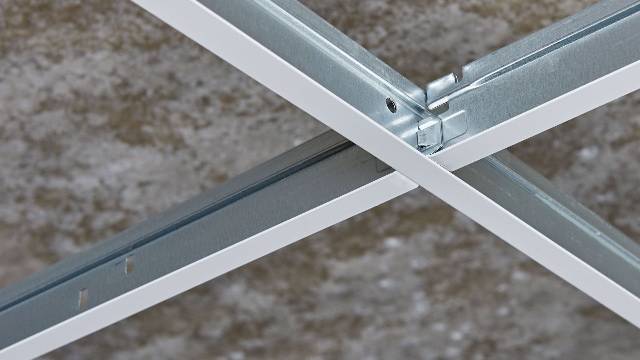

24 mm grid with universal main runner and joggled end cross tees.

Jump to:
+44 (0)208 2227457 Website

Application

Used to create concealed, semi-concealed and exposed ceiling solutions with stone wool A24, E24, M, X and Z edge tiles.

Description

24 mm grid with universal main runner and joggled end cross tees. Available in white, black and 34 colours to match the Rockfon Color-all ceiling tiles range.


Features and benefits:

  • Features an audible 'click' for fast and accurate installation.
  • Strong and stable grid that can be easily demounted frequently.
  • The use of 1800 cross tees allows the creation of Rockfon® System XLT24 A™ and E™, reducing the number of components and accessories required, making it cost-effective and time efficient.
  • Other configurations may be available - consult manufacturer for details.


Suitable tile thickness:

12–50 mm.


Compatible edge details:

Stone wool A24, E24, M, X, Z.


Compatible module sizes:

  • 600, 1200, 1800, 2100 and 2400 x 600 mm.
  • 1200 x 1200 mm.


Compatible edges, grids and systems:

  • A24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 A™.
  • AM24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System Metal AM, EM™.
  • E24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 E™.
  • EM24: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System Metal AM, EM™.
  • M: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System M™.
  • X: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 X™.
  • Z: Use with Chicago Metallic T24 2890 Click Grid to create Rockfon® System T24 Z™.


Suspension clearance:

  • Minimum: 50 mm.
  • Easy access: 100 mm (15–25 mm thick tiles), 200 mm (40–50 mm thick tiles).

General information

Color

White

Guidance for specification option:

White 001, standard.

Black

Guidance for specification option:

Special order: Matt black 88.

Other

Guidance for specification option:

  • Other colours available by special order, including Matt White 11 and 34 matching colours for the Rockfon Colour-all tile range.
  • Consult manufacturer for details.

Finish

Semi-gloss

Material

Steel

Length

3600 mm

Width

38 mm

Height

24 mm

Uniclass

Pr_20_85_32_22 Demountable suspended ceiling gridsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

K40/250 Suspension system

K40/260 Perimeter trims

Product range

Grids

Specification data - Demountable suspended ceiling grids

Grid type

-

Exposed

24 mm grid with universal main runner and joggled end cross tees.

Components

Perimeter trims, main runners and cross tees.

Finish as delivered

-

Colour

White 001.

Special order.

Guidance for specification option:

  • Other colours are available including Matt Black 88, Matt White 11, and 34 matching colours for the Rockfon Color-all tile range.
  • Consult manufacturer for details.

Perimeter trim

L19 x 32.

Guidance for specification option:

Perimeter wall angle trim, 32 x 19 x 3050 mm.

W8 x 12.

Guidance for specification option:

Shadow angle 15 x 12 x 8 x 15 x 3050 mm.

Enhanced Corrosion Resistance (ECR)

Not required.

Required.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Poland

Recyclability

100%

Third party certifications

Third party certifications

EPD

EPD

EPD Rockfon Chicago Metallic grids and grid components
