Classic Swan Touch Free Tap
Verified by manufacturer over a year ago

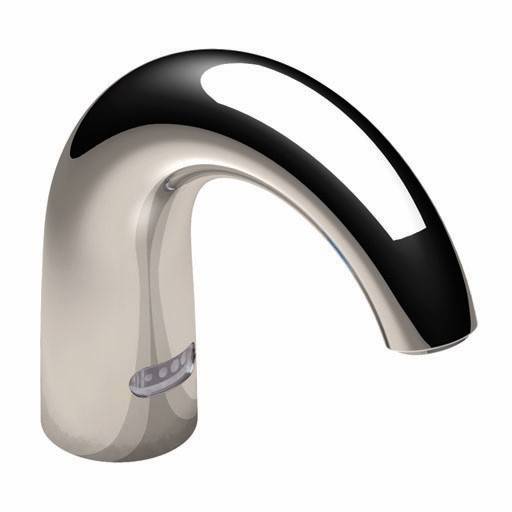

No-touch automatic chrome plated swan tap.
Application
Suitable for washrooms across a wide variety of applications in commercial and public sector environments including:
- Supermarkets.
- Laboratories.
- Hospitals.
- Schools.
- Universities.
- Airports.
- Motorway services.
- Food factories.
- Hotels.
Description
The Classic Swan Tap combines the benefits of no-touch technology with water savings and reliable performance. The no-touch taps have been developed and tested to achieve high levels of reliability and consistent performance, and heavy-duty construction offers resistance to vandalism and misuse.
Features and benefits:
- Fully programmable.
- Hygienic.
- Reliable.
- Provide water savings.
- Easy to use – suitable for the disabled or elderly.
- Battery or mains powered.
- No-touch control - mounted in shaft
- Adjustable run on time.
- Adjustable range and trigger level.
- Adjustable anti-vandal lockout time.
- Automatic purge.
- Adjustable purge run times.
- Commissioning flush.
- Traditional and elegant design.
General information
Color | Silver Guidance for specification option: Chrome. |
Finish | Chrome |
Material | Brass |
Length | 185 mm |
Width | 57 mm |
Height | 185 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 5 L/m. |
Controls | AT00-031. Guidance for specification option: Automatic tap battery backup unit. The automatic tap battery backup unit will automatically switch from mains supply to battery in the event of a power failure (comes complete with AT00-024 battery pack). When mains power is restored the unit will switch back to mains supply. AT00-032. Guidance for specification option: Automatic tap purge controller. The automatic tap purge controller reduces the risk of Legionella by purging the taps if they have not been operated for a predefined time. Purge run times are adjustable and can be set between 5 seconds and 5 minutes. A periodic purge can be switched on or off. AT07-001. Guidance for specification option: Tap control system. The tap control system can be used to control mixed water for one or two taps, or to control both hot and cold on a single tap using two sensors. The control system can be used with wave-on or tactile sensors. The tap control system also features built-in purge control option to avoid stagnation. When a user waves their hand past the sensor (or pushes the tactile switch) the control system activates the solenoid valve, the valve will then run for a pre-set time before automatically closing the valve and stopping the tap. |
Tap kit | AT00-001. Guidance for specification option: Single station battery kit standard pressure. AT00-002. Guidance for specification option: Single station mains kit standard pressure. AT00-003. Guidance for specification option: Two station mains kit standard pressure. AT00-004. Guidance for specification option: Three station mains kit standard pressure. AT00-005. Guidance for specification option: Single station battery kit low pressure. |
Type | AT01-001. Guidance for specification option: Chrome. AT01-012. Guidance for specification option: Chrome copper tails. AT01-013. Guidance for specification option: Chrome stainless steel tails. |
Dimensions | 185 x 57 x 185 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
