Conservation X Block
Verified by manufacturer 3 months ago
120 x 160 x 80 mm
120 x 160 x 80 mm
Two part unit with textured surface and shouldered edge.
Application

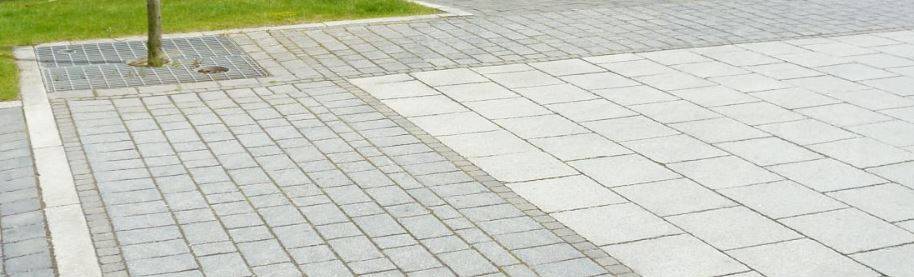

For pedestrianised and trafficked areas.
Description

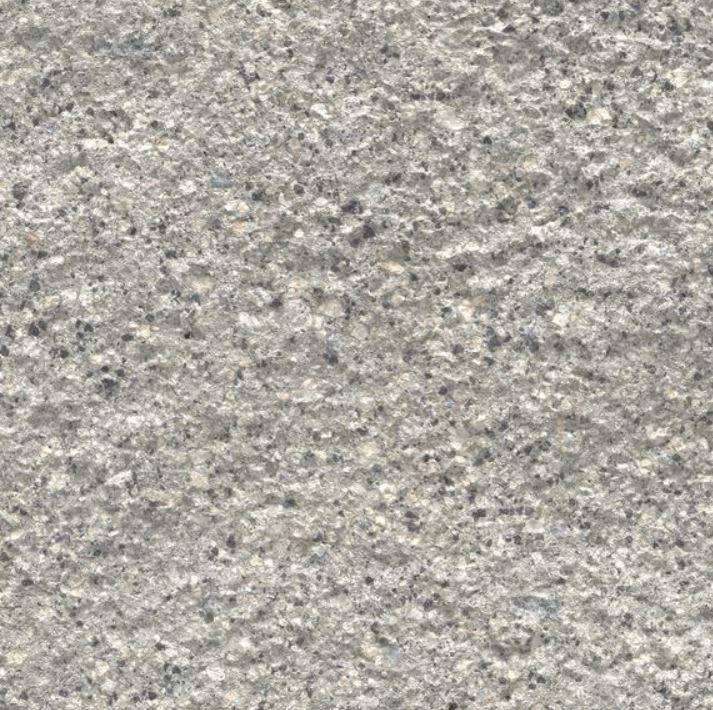

A multi-size range with a mix of natural crystalline aggregates that are exposed to achieve a granite-look finish.
There are three sizes to choose from and each can produce a secure, interlocking paving design when laid that is suitable for any loading requirement.
Features and benefits:
- Unique aggregates and an improved colour palette.
- Manufactured in mainland Britain.
- Capable of handling heavy loads.
- Also available in Conservation X flag, Priora permeable, kerbs setts and steps.
- Semi dry pressed & vibrated concrete.
General information
Color | Silver Grey Cream |
Finish | Textured |
Material | Concrete |
Shape | Square Rectangle |
Length | 160 mm 240 mm |
Width | 160 mm 120 mm |
Height | 80 mm 60 mm |
Uniclass | |
CAWS | Q24/113 Conventional concrete block paving overlay Q24/112 Conventional concrete block paving with bound base Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving |
Specification data - Concrete paving blocks
Standard | To BS EN 1338:2003. |
Physical properties | |
Colour | Charcoal.Silver grey.Cream. |
Finish | Textured riven. |
Profile | |
Paver type | Regular plan form. |
Arrises | Square. |
Dimensions and associated tolerances | |
Nominal sizes | 120 x 160 x 80 mm. |
Tolerances on diagonals | Manufacturer guidance
|
Arrises | Square. |
Weathering resistance | Manufacturer guidanceIt should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures. |
Abrasion resistance | ≤ 23 mm. |
Slip resistance | >45.Guidance for specification option: Polished / unpolished. |
Skid resistance | >45.Guidance for specification option: Polished / unpolished. |
Material density | 2300 kg/m³. |
Reaction to fire | Class A1 when used for internal flooring. |
ThermalConductivity | To BS EN 13369:2013. |
Unit weight | 3.5 kg. |
Third-party certification | Breeam rated. Guidance for specification option: These units can achieve an "A" rated system when used in conjunction with the correct sub-base components. |
TensileStrength | 3.6 MPa. Guidance for specification option: None of the individual results shall be less than 2.9 MPa, nor have a failure load less than 250 N/mm of splitting length . |
Sustainability data
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 34 kg CO₂ eq/m² Self declared |
