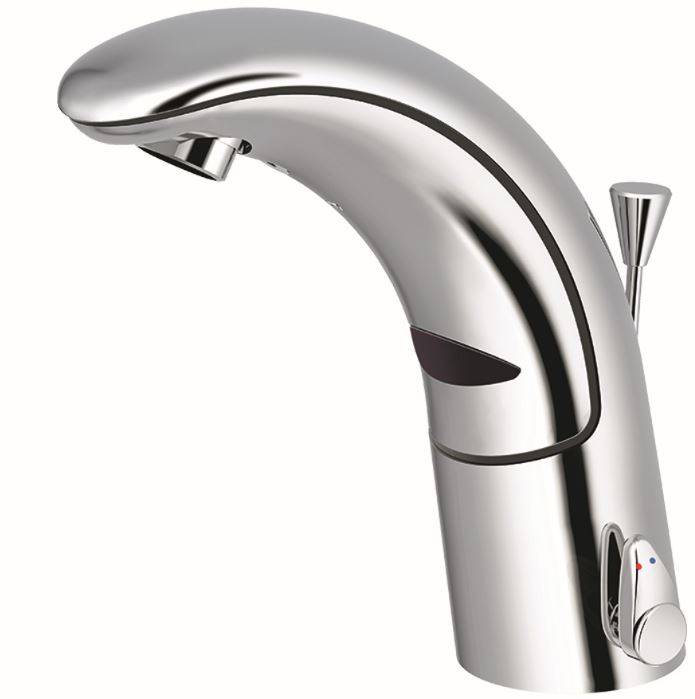

100.036.11 - iQ lavatory faucet A30
Touchless, electronically controlled lavatory faucets with IR sensors.

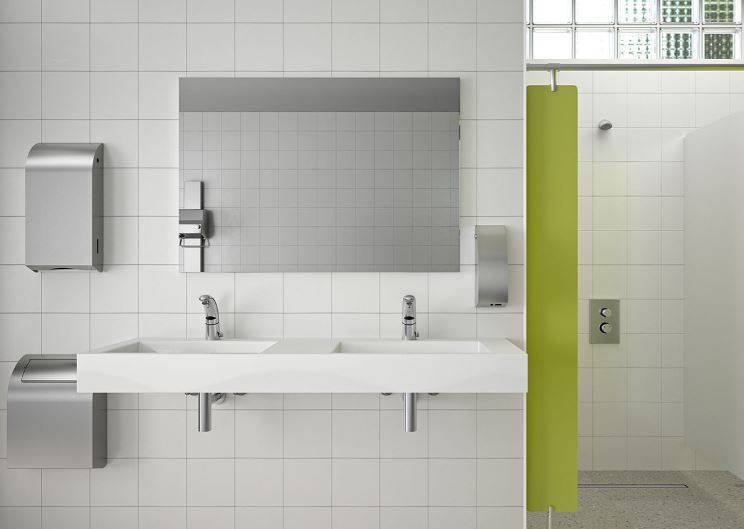

For use in public bathrooms.
Touchless, electronically controlled lavatory faucets with IR sensors and a modular single-piece design.
Features and benefits:
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Length | 152 mm Guidance for specification option: Water supply to spout. Consult manufacturer for further details. |
Width | 60 mm Guidance for specification option: Base diameter. |
Height | 186 mm Guidance for specification option: Base to spout height. |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Standards | To DIN EN 200. |
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Automatic-action tap (touchless). |
Materials | |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5 L/min at 3 bar.Guidance for specification option: Operating pressure: 0.3–10 bar. |
Water supply temperature (maximum) | 80°C. |
Integral accessories | IR sensor.Central control unit CNX 64 (CNX control center 64).Guidance for specification option: CONO140000. Central control unit CNX 64 with touchscreen (CNX control center 64 Touch).Guidance for specification option: CONO144918. Central control unit CNX 150 (CNX control center 150).Guidance for specification option: CONO150000. |
Accessories | Not required. Flush-mounted power supply unit for single installation. Guidance for specification option: 550.026.00. Central power supply, flush-mounted, for up to 30 units. Guidance for specification option: 550.041.00. Flush-mounted splitter set with flush-mounted outlet for multiple installations. Guidance for specification option: 550.042.00. Central power supply, flush mounted 230V/12V for multiple installations with flush mounted outlet. Guidance for specification option: 555.045.00. |
Connections | Angle valve: G3/8". |
Power supply | VARIOconnect plug-in power supply unit. |
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Brass |
