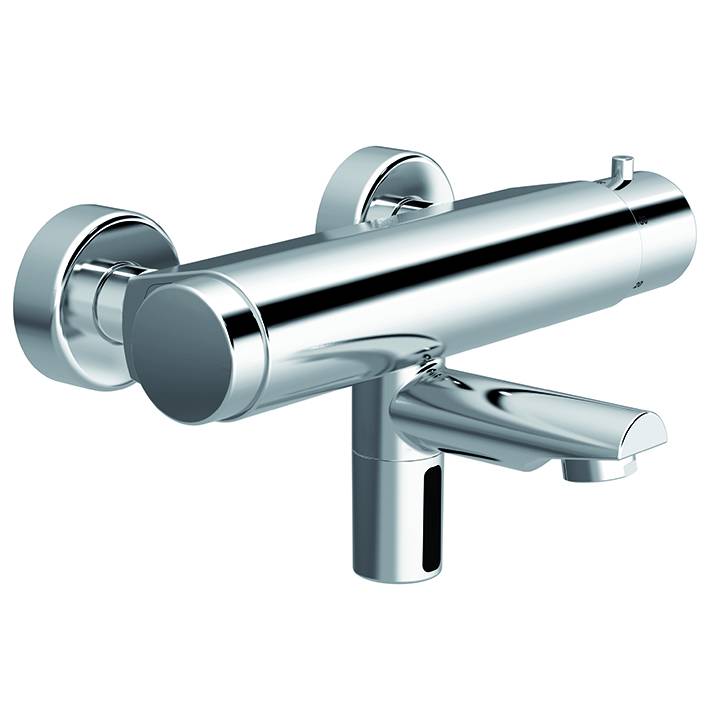

CONTI+ Lino Exposed Wall-Mounted Faucet With Thermostat, G3/8
Verified by manufacturer 4 months ago
110.305.11 - Lino exposed wall-mounted faucet W35
110.305.11 - Lino exposed wall-mounted faucet W35
Range of exposed, touchless wall-mounted electronically controlled lavatory faucets.
Application
For use in public bathrooms.
Description
Range of exposed, touchless wall-mounted electronically controlled lavatory faucets with thermostat and IR sensor.
Features and benefits:
- Sturdy version, faucet body made of brass, chromed as standard.
- Reliable solenoid valve ROBUST (minimal level of water pressure surge).
- Built in 0.5 mm mesh filter.
- Stiff spout.
- Dual infrared sensors (with automatic setting feature or close detection), microprocessor.
- Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus.
- Continuous water flow adjustable with Click (for 110.305.11, 110.306.11 only).
- Continuous-on and hygienic flush time activated by Touch (for 110.307.11, 110.308.11 only).
- Temperature adjustable with thermostat-cartridge.
- With anti-scalding and auto-thermic protection.
- 12, 24 or 48-hour hygienic flush.
- Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
General information
Color | Silver |
Finish | Chrome Gloss |
Material | Brass |
Shape | Other |
Length | 200 mm Guidance for specification option: Water supply to spout. Consult manufacturer for further details. 260 mm Guidance for specification option: Water supply to spout. Consult manufacturer for further details. |
Width | 260 mm |
Height | 60 mm Guidance for specification option: Base to spout height. 105 mm Guidance for specification option: Base to spout height. |
Warranty description | Two year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin taps
Standards | To DIN EN 200. |
Form | Automatic-action taps (touchless), wall mounted. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5 L/min at 3 bar.Guidance for specification option: Operating pressure: 0.3–10 bar. |
Water supply temperature (maximum) | 80°C. |
Integral accessories | IR sensor. |
Power supply | 6 V Lithium CRP2. Guidance for specification option: Lifetime up to four years. |
Connections | Valve connection: G3/8". |
Accessories | Not required. S-connector with stop valve, for surface-mounted faucets, chrome. Guidance for specification option: 550.016.11. Temperature handle 38°C with override button. Guidance for specification option: 550.069.11. Battery exchange kit, waterproof coating. Guidance for specification option: CONO560006. BLE Converter for CONTI+ Service APP (BLE converter). Guidance for specification option: CONO260000. |
Spout length | 200 mm. |
Height | 105 mm. Guidance for specification option: Base to spout height. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass |
