COR-TEN ® Weathered Steel Fully Supported Traditional Standing Seam Roofing and Facade Cladding - Standing Seam Roofing and Cladding

Verified by manufacturer 5 months ago

Metal Solutions Limited

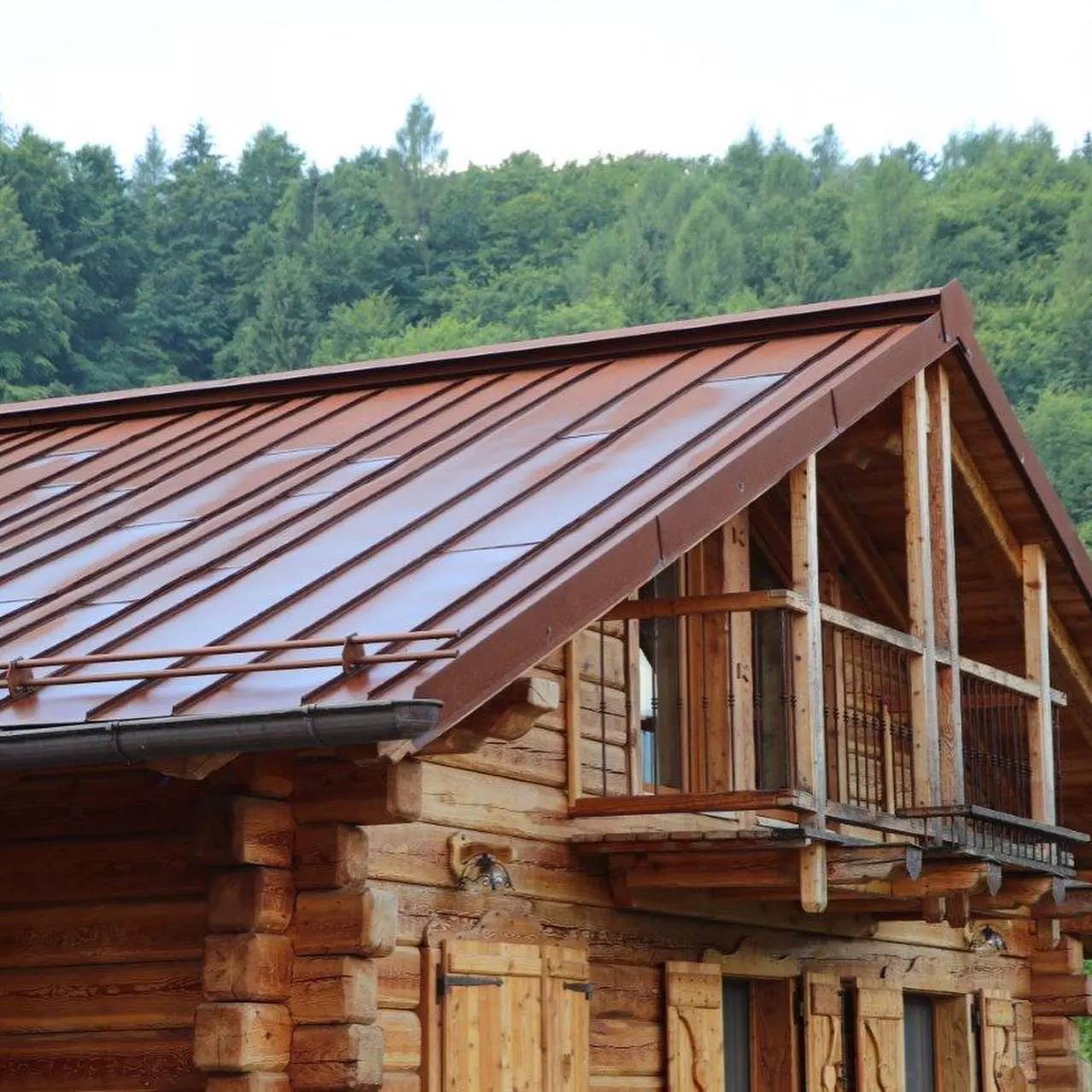

COR-TEN® Weathered Steel standing seam can be used on pitch roofs or facades. Consult Metal Solutions for further information.

Jump to:
+44 (0)1204 491800 Website

Application

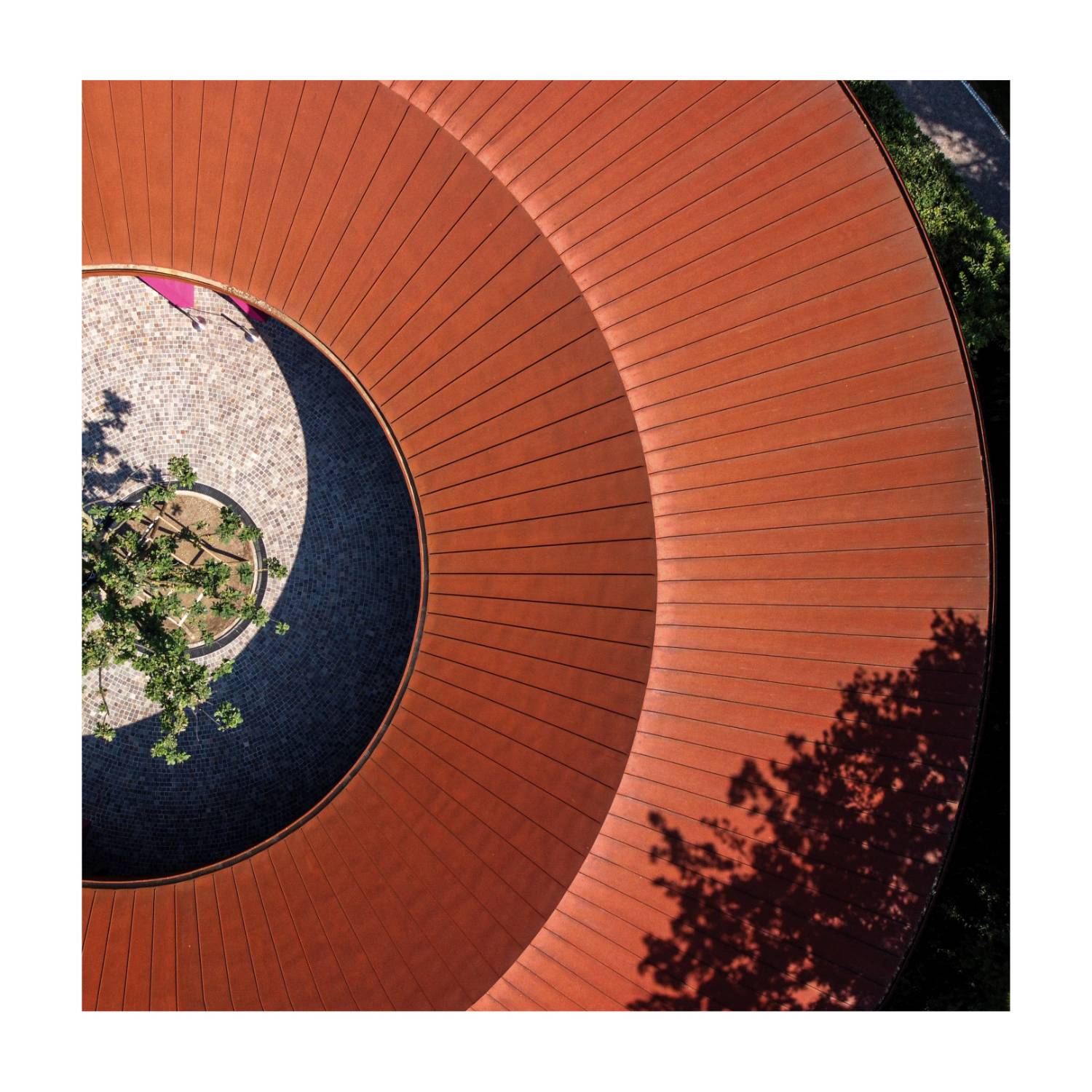

The product can be used to cover complex surfaces such as barrel vaulted roofs and domes etc. It can be laid on a ventilated timber substrate, composite panel or profiled metal decks. Can also be employed to clad small surfaces such as dormers, fascias or gables.


As well as being used in a roofing application the system can also be used as traditional standing seam wall cladding, also known as angle seam cladding. This system offers tremendous opportunity to change cover widths to add interest to a facade project.


Installation:

A list of Approved Installers by postcode is available on request. Contact Email:

gaynor@metalsolutions.uk.com

Description

COR-TEN® Weathered Steel standing seam system with traditional detailing, gives an aesthetically pleasing finish whilst avoiding the industrial finishes found in contemporary standing seam systems.


Can be used in different widths in both roofing and facade cladding applications. Can also be employed to clad small surfaces such as dormers, fascias or gables.


Features and benefits:

  • Manufactured from a specialist sustainable steel designed to weather (see Manufacturer's literature for more information on the weathering process).
  • Material - A1 fire rated.
  • Seams are available in 25 mm or 38 mm formats.
  • The system can be provided as a complete roof kit including all flashing, matching rainwater products and ancillaries.


Substructure:

Suitable substructure materials:

  • Ventilated 18 mm-thick weather and boil proof (WPB) plywood.
  • Ventilated oriented strand board OSB3.
  • Composite panel.
  • Profiled metal deck


Underlay:

ISO-Mat Pro® underlay is recommended for cold roof applications.

available from:

roofing-tools.com


Clips:

  • Fixed: 25 mm seams: SM-EFK-25; 38 mm seams: SM-EFK-38.
  • Sliding: 25 mm seams: SM-EFE-25; 38 mm seams: SM-EFE-38.
  • Flashing clips: SM-ELH-27.
  • For fixing to rigid insulation: Thermoseam warm room clip for metal roofing.

available from:

roofing-tools.com

General information

Color

-

Manufacturer guidance

See Manufacturer's literature for how this product weathers.

Material

Steel

Cor-Ten

Shape

Rectangle

Length

13 mm

Guidance for specification option:

Maximum.

Bespoke

Guidance for specification option:

Consult manufacturer if longer lengths required.

Width

140 mm

580 mm

Bespoke

Guidance for specification option:

140–580 mm.

Height

0.55 mm

Warranty description

Ten year

Uniclass

Pr_25_71_51_15 Carbon steel sheetsPrimary

CAWS

H31/10 Metal

H31/120 Metal

Specification data - Carbon steel sheets

Standards

To EN 10131:2006.

Sheet roofing products

-

Manufacturer guidance

A roofing standing seam profile manufactured from a coil.

Flashings

-

Manufacturer guidance

A range of matching flashings are available from the manufacturer.

Material

Manufacturer’s standard.

Guidance for specification option:

Consult manufacturer for details.

Grade

Architectural Grade A.

Dimensions

-

Length

Up to 13 m.

Bespoke.

Guidance for specification option:

Insert project requirements if longer lengths are required.

Width

140–555 mm.

Sheet thickness

0.55 mm.

Finishes

-

Applied

Manufacturer’s standard.

Finish

Manufacturer’s standard.

Reaction to fire

-

External face

To EN 13501, Class A1.

Internal face

As external.

Seam

25 mm.

38 mm.

Coil

1000 kg (max).

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

United Kingdom

Material

Steel

Cor-Ten

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.63 kg CO₂ eq/kg

Self declared

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %
