Cosinus Slide® - Concrete Floor Joint
Verified by manufacturer 3 days ago
90/120 - 90–120 mm slab thickness
90/120 - 90–120 mm slab thickness
Concrete floor joint.
Application
Suitable for concrete industrial floors up to 500 mm slab thickness.
Description

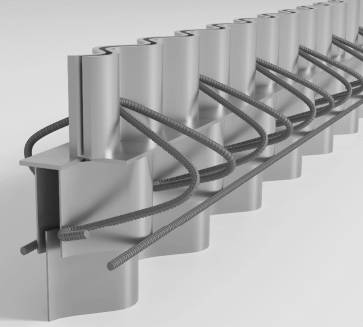

Concrete floor joint comprising upper Sinus waves, horizontal plates, bottom Cosinus waves and anchorage.
Features and benefits:
- Manufactured in accordance with EN 10025-2, NBN A 24-302, and EN 10111.
- Load transfer possible up to 25 mm.
- Includes continuous anchorage.
- Available in a range of profiles.
General information
Color | Silver |
Finish | Natural Galvanized |
Material | Steel Stainless steel |
Shape | Other |
Length | 2600 mm |
Width | 1150 mm |
Height | 950 mm 1080 mm 1120 mm 1150 mm 1240 mm |
Uniclass | |
CAWS | Q21/440 Longitudinal construction joints |
SKU Code | 90/120 |
Specification data - Armoured joints
Classification data | |
Standard | To EN 10025-2, NBN A 24-302, EN 10111. Guidance for specification option:
|
Material | Natural steel. Galvanized steel. Stainless steel, grade 304. Guidance for specification option: Stainless steel joint dimensions may differ. Consult manufacturer for details. Stainless steel, grade 316. Guidance for specification option: Stainless steel joint dimensions may differ. Consult manufacturer for details. |
Dimensions | 2.6 x 1.15 x 1.15 m. Guidance for specification option: Sinus wave: 50 mm. Cosinus wave: 35 mm. Steel plate: 40 mm. Manufacturer guidanceLength x width x height. |
Gap width (maximum) | Manufacturer guidanceOptimal and recommended up to 15 mm. Load transfer possible up to 25 mm. Consult manufacturer and insert requirement. |
Components | 2 x 5 mm upper Sinus waves. Horizontal plates 2 x 35 x 3 mm. 2 x 2 mm bottom Cosinus waves. Adjustable steel plate 1 x 1.5 mm. Patented, 3D formed rebar 6 mm as continuous anchorage. |
Slab size | 90–120 mm. |
Weight | 1860 kg/pallet. |
Sustainability data
Material | Steel Stainless steel |
