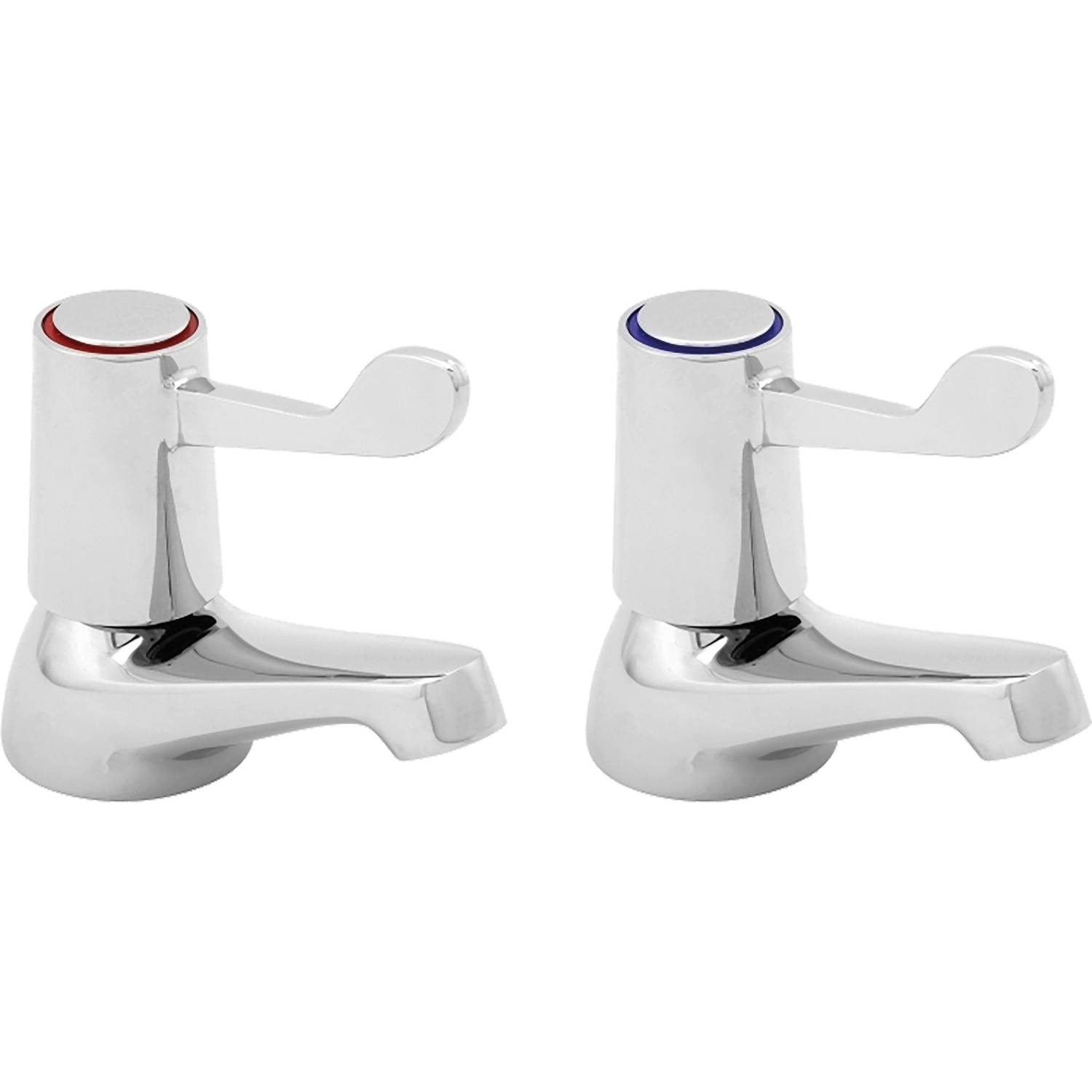

Crosshead & Lever Basin Taps
Verified by manufacturer over a year ago
(F1080N) 208.0560.123
(F1080N) 208.0560.123
Manual basin tap.
Application
Manual basin tap for connecting to hot and cold water.
Description

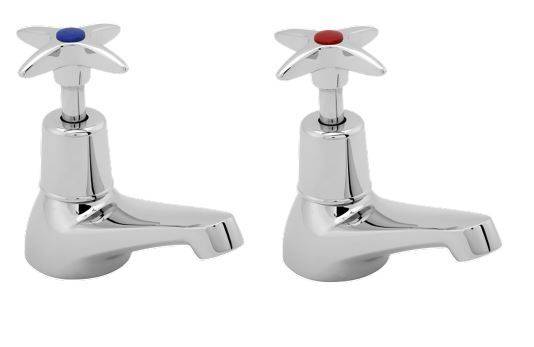

Crosshead manual basin tap with mixer.
Features and benefits:
- For connecting to both hot and cold water.
- Manufactured from chromium plated brass.
- Manufactured in accordance with BS 5412.
- Hole mounted.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Length | 97 mm |
Width | 60 mm |
Height | 130 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Pillar taps, crosshead. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Water supply temperature (maximum) | User controlled. |
Dimensions | 97 x 130 x 60 mm. Guidance for specification option: Spout projection: 75 mm. |
VolumetricFlowRate | 0.6 L/s. Guidance for specification option: Flow rate achieved at 3 bar pressure. |
Water pressure | 0.1 bar. Guidance for specification option: Pressure required for minimum flow. |
Sustainability data
Contains Red List materials | No |
