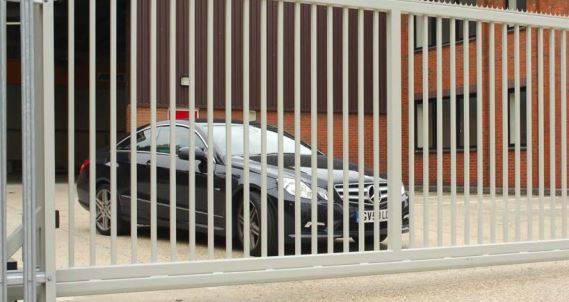

CSG 10103 Cantilevered Sliding Gate - Security Gate
Verified by manufacturer 2 days ago
Versatile, surface-fixed cantilevered sliding gate.
Application
Designed to be installed in all types of industrial and commercial applications.
Description
Versatile, surface-fixed cantilevered sliding gate.
Features and benefits:
- Can be supplied in a range of widths and heights to suit varying site requirements.
- Infill options include standard vertical bars, palisade and weld mesh.
- Constructed from regular steel sections, rather than large and unsightly heavyweight materials.
General information
Color | Other |
Finish | Shot blasted Primed Galvanized Zinc plated Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q40/40 Steel gates Q40/560 Steel gates and posts Q40/45 Proprietary gates Q40/570 Proprietary gates and posts |
SKU Code | CSG10103 |
Specification data - Carbon steel gates
Standard | To BS EN 13241-1. |
Dimensions | |
Span | Manufacturer guidanceGate can be supplied to suit a maximum opening of 10 000 mm. Consult manufacturer and insert requirements. |
Height | Guidance for specification option: Height of gate should suit suit fence line: standard heights 1800–3000 mm, higher if required. Consult manufacturer and insert requirements. |
Posts | Mild steel. |
Gate leaves | Mild steel sections with 30 mm RHS vertical bar infill sections. Guidance for specification option: As standard. Mild steel palisade. Guidance for specification option: Consult manufacturer for details. Mild steel bar. Guidance for specification option: Alternative bar configuration. Consult manufacturer for details. Mild steel expanded mesh. Guidance for specification option: Consult manufacturer for details. |
Hardware | |
Operating | Automatic - standard drive. Guidance for specification option:
Automatic - enhanced drive. Guidance for specification option:
|
Finish as delivered | |
Worked finish | Shot blasted to SA 2.5. |
Applied finish | Powder-coated. Guidance for specification option: 60 μm. Insert RAL colour requirement. Galvanized primed. Guidance for specification option: 60 μm. Zinc primed. Guidance for specification option: 60 μm. |
Mains | 230 V, 50 Hz, single phase rated at 10 Amp. |
Track system | Proprietary folded track system. |
Installation | Surface fix. |
Safety | Photocells. CAT3 safety edge system. Other. Guidance for specification option: Additional safety devices such as vehicle detection road loops and laser scanners may be required. Consult manufacturer for details. |
Opening speed | Standard drive: 190 mm/s. Guidance for specification option: Note: speed of operation of the gate is dependant on the gate size, infill, site location and force limitation safety requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
