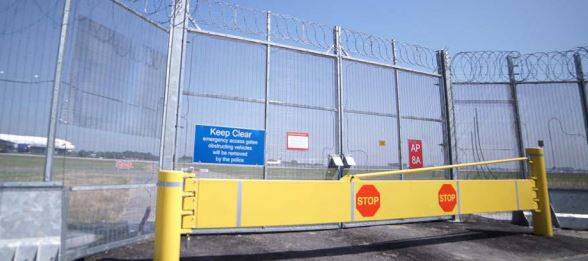

CSG 10930 Double Miti-Gate® - Security Gate/ Barrier
Verified by manufacturer 2 days ago
PAS 68 manual crash tested barrier gate.
Application
For locations that have infrequent vehicular throughput, yet still require protection from a vehicle borne threat, e.g. emergency vehicle access.
Description
PAS 68 manual crash tested barrier gate.
Features and benefits:
- Provides an economical solution.
- This product requires minimal civil work due to hinge and receptor posts only requiring 215 mm foundation depth.
- Clear width availability of up to 10 metres utilizing a double leaf format.
- Cost effective, simple, PAS 68 compliant solution.
- Can be used in any site location where a vehicle borne threat exists, infrequent vehicular access is required, and pedestrian permeability is to be maintained.
- Manual barrier that can be hinged, bi-parting or removable, which offers a variety of options.
- Utilizes Cova's patented arrestor system (European Patent No 2369126).
General information
Color | Other |
Finish | Shot blasted Primed Galvanized Zinc plated Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 1100 mm |
Uniclass | |
CAWS | Q41/190 Vehicle access point barriers Q41/190 Vehicle access point barriers Q40/570 Proprietary gates and posts Q40/40 Steel gates Q40/560 Steel gates and posts Q40/45 Proprietary gates |
SKU Code | CSG10930 |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidanceGate can be supplied to suit a maximum opening of 10 000 mm. Consult manufacturer and insert requirements. |
Height | 1100 mm. Guidance for specification option: From finished floor level (FFL). |
Posts | Mild steel. |
Gate leaves | Mild steel. |
Hardware | |
Hinges | Required. Guidance for specification option: Hinge and locking pins. Not required. Guidance for specification option: Completely removable or bi-parting options available. Consult manufacturer for details. |
Securing | Padlocks. Guidance for specification option: The Miti-Gate® can easily be secured in the closed position with a specific padlock which is applied to the hinge pin and locking pin. |
Operating | Manual. |
Finish as delivered | |
Worked finish | Shot blasted to SA 2.5. |
Applied finish | Powder-coated. Guidance for specification option: 60 μm. Insert RAL colour requirement. Galvanized primed. Guidance for specification option: 60 μm. Zinc primed. Guidance for specification option: 60 μm. |
Installation | Designed to be mounted between Cova’s standard range of crash tested bollards. |
Certification | PAS 68 crash testing. Guidance for specification option: PAS 68:2010 V/7500[N2]/48/90:2.5/0.0 tested at 10.8 m. See manufacturer's datasheet for specific test results. |
Accessories | Not required. Graphics. Guidance for specification option: The Miti-Gate® offers a large flat surface, suitable for use as an advertising space. With use of graphics, this gate can also be finished to blend with the installed environment. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
