Curved Pocket Door System
Verified by manufacturer 4 months ago

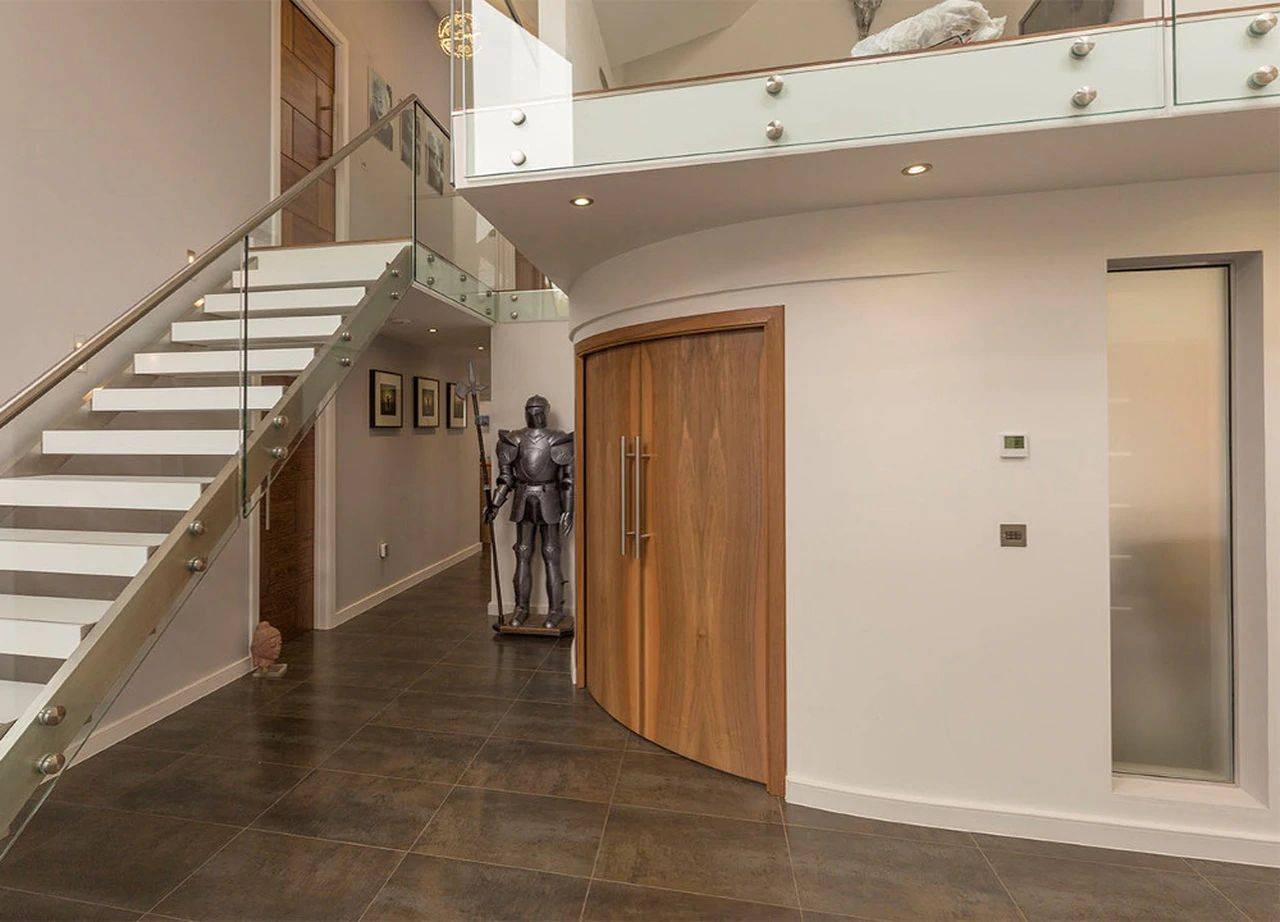

Single leaf, 1000 mm radius
Single leaf, 1000 mm radius
Top hung single or double curved sliding pocket door system supplied with 40 mm door.
Application
Internal sliding pocket doors.
Description
Top hung single or double curved sliding pocket door system supplied with 40 mm door.
Features and benefits:
- A spectacular curved sliding door system to re-interpret the division of internal space.
- Various sizes and radii are available, adaptable to a wide range of requirements.

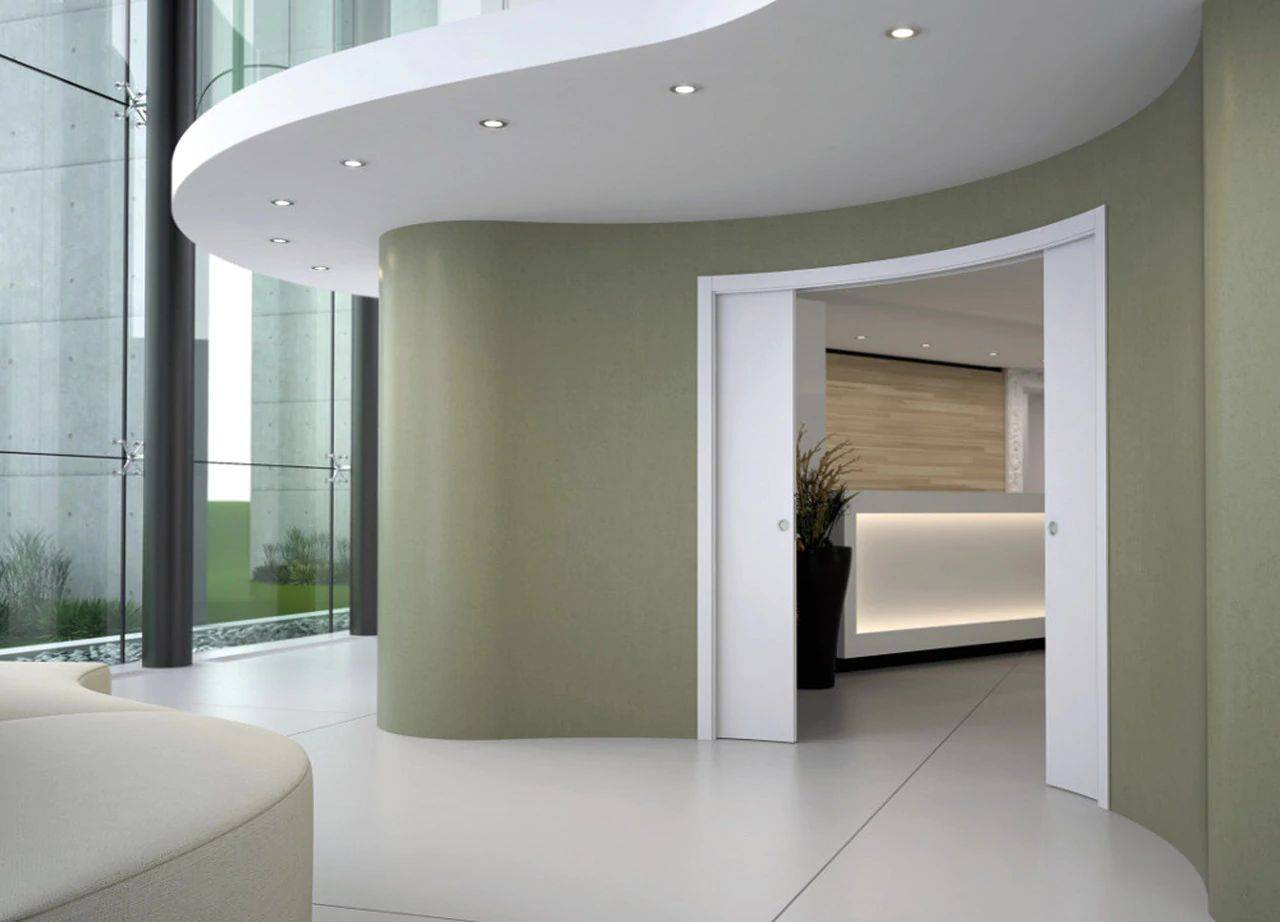

- Double door systems are also available.
- Curved door available in a variety of real wood veneers including cherry walnut (standard option), mahogany, oak, beech, walnut and cherry.
- The runners are specially constructed to slide in the curved track and adapt to different radii of curvature.
- The pocket for the curved door is constructed from modular metal sheet.
- Wide range of standard sizes available. Non-standard sizes available up to 1200 x 2600 mm with various radii.
- The single curved pocket door system can have a left or right opening action.
- Sliding system, doors, door jambs and final architraves all supplied.
- Complete with full wooden jamb kit for a professional finish.
- Adjustable front and rear door stops.
General information
Color | Brown Guidance for specification option: Real wood veneers. |
Warranty description | 15 year Guidance for specification option: On the complete Eclisse steel pocket system; consult manufacturer for details. |
Uniclass | |
CAWS | L20/525 Sliding pocket doors L20/65 Sliding pocket doors |
Specification data - Sliding door and partition sets
Performance | Internal. |
Arrangement | Single leaf top hung. |
Track system | Manufacturer's standard. |
Door leaves | |
Construction | Manufacturer's standard. |
Finish and colour | Painted.Guidance for specification option: Standard. Insert colour requirements. Cherry walnut, stain-ready.Guidance for specification option: Standard. Beech.Cherry.Mahogany.Oak.Walnut.Wenge. |
Operation | Manual. |
Hardware | OSO8 Polished brass simple flush pull.OSC4 Antique brass simple flush pull.OSC2 Polished chrome simple flush pull.OSC1 Satin chrome simple flush pull.OSO3 Polished brass bathroom lock.OSA Antique brass bathroom lock.OSO1 Polished chrome bathroom lock.OSS Satin chrome bathroom lock.As schedule.Not required.Guidance for specification option: Please specify whether cut-outs in door(s) for flush pulls are required, as they are a standard feature. |
Execution | Use two layers of 6 mm plasterboard on each side (not supplied). Install at finished floor level. Contact manufacturer for detailed installation instructions. |
Product Reference | Curved Single |
Curve radius | 1000 mm. |
Passage width | 600 mm. Guidance for specification option: Overall width: 1250 mm. 700 mm. Guidance for specification option: Overall width: 1390 mm. 800 mm. Guidance for specification option: Overall width: 1545 mm. 900 mm. Guidance for specification option: Overall width: 1650 mm. 1000 mm. Guidance for specification option: Overall width: 1760 mm. |
Passage height | 2000/ 2100 mm. Guidance for specification option: Overall height: 2158/ 2258 mm. |
Finished wall thickness | 125 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 85% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % Guidance for specification option: Aluminium: 56%. Steel: 20%. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
