Novanta Half Pocket Half Hinged System

Verified by manufacturer 3 months ago

Eclisse UK

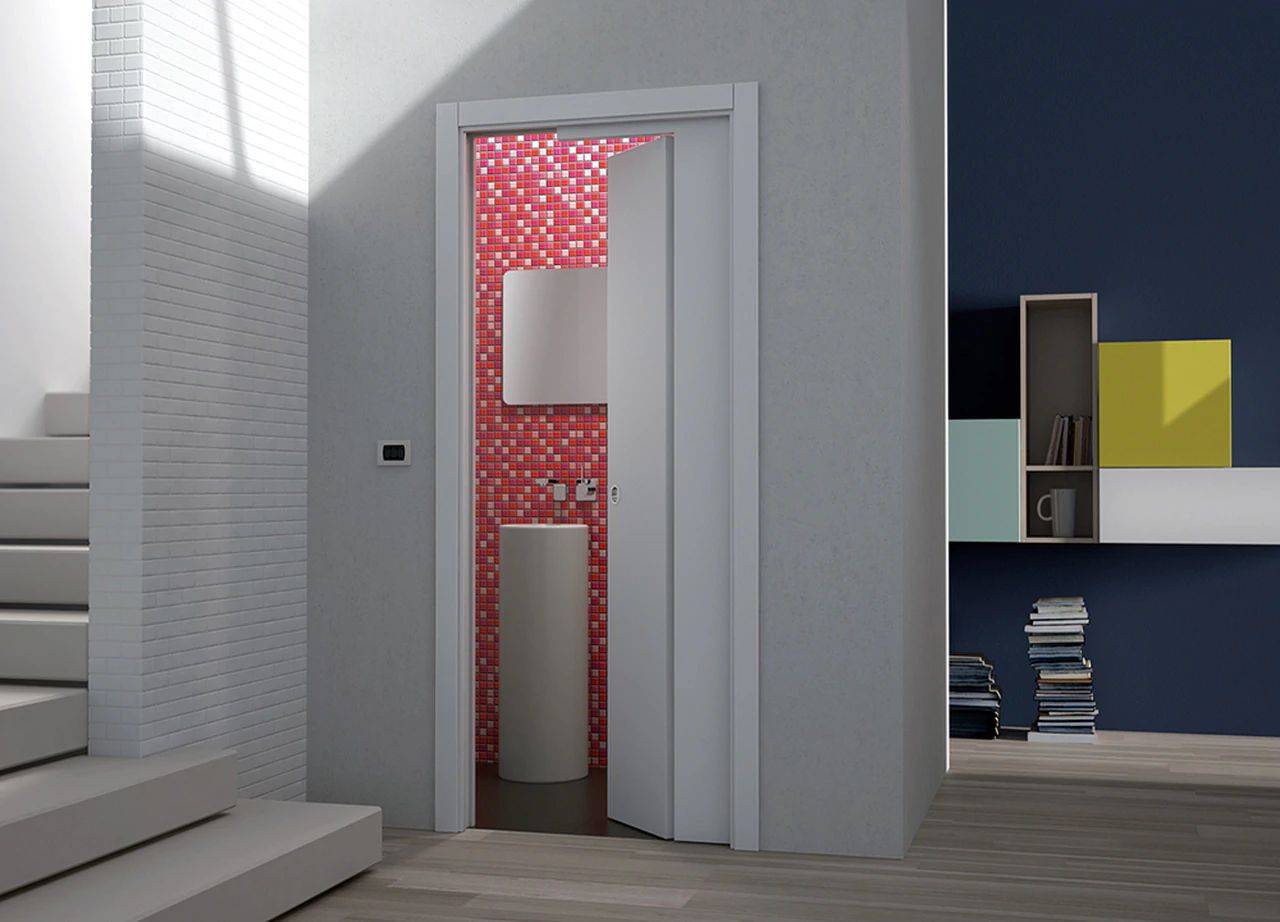

Half-sliding, half-hinged pocket door system supplied with door.

Jump to:
+44 (0)333 5770828 Website

Application

Internal sliding pocket doors.

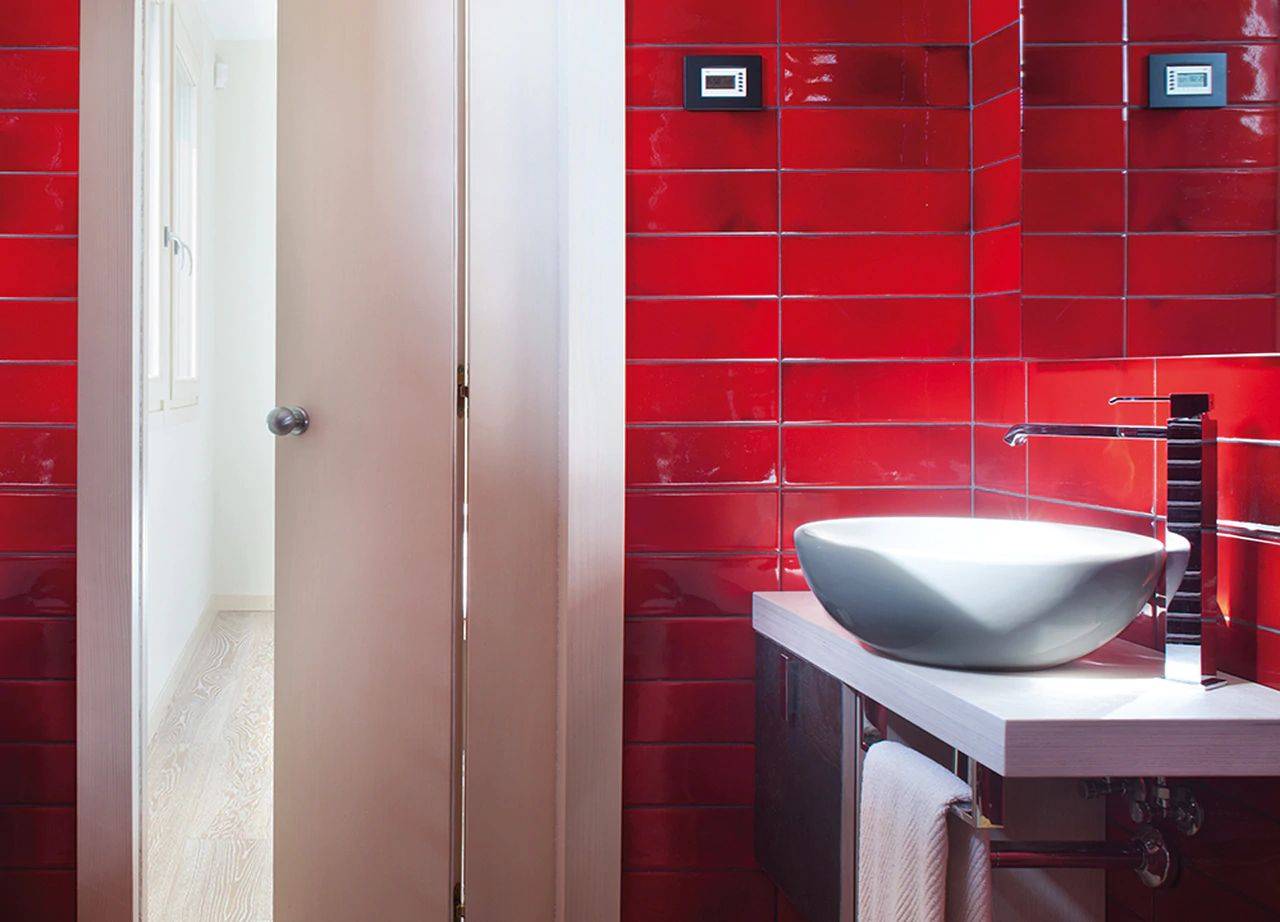

Suitable for a small utility or toilet where there is not enough wall space for a standard sized pocket.

Description

Half-sliding, half-hinged pocket door system supplied with single door.


Features and benefits:

  • Door included, part of which slides back into a pocket and part of which opens as a hinged door.
  • Door finished with cherry walnut real wood veneer (paint/ stain-ready) or white laminate.
  • Comes with brass hinges.
  • Opening options of left opening or right opening available.
  • Plasterboard and final architrave are not supplied.
  • Complete with full wooden jamb kit for a professional finish.
  • Maintenance-free track and runners.

General information

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system and runners.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

P21/350 Door track and running gear

P21/10 Door track and running gear

L20/525 Sliding pocket doors

L20/540 Sliding folding doors

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

Top hung, left-hand opening (SX).

Top hung, right-hand opening (DX).

Track system

Manufacturer's standard.

Door leaves

-

Construction

Manufacturer's standard.

Finish and colour

Cherry walnut real wood veneer.

Guidance for specification option:

Ready to paint or stain.

White laminate.

Operation

Manual.

Hardware

-

Manufacturer guidance

Consult manufacturer’s technical literature and insert requirements.

Execution

-

Manufacturer guidance

Consult manufacturer for installation details.

Passage width

600 mm.

Guidance for specification option:

Overall width: 1007 mm.


Door panel widths:

  • Sliding panel: 350 mm.
  • Hinged panel: 310 mm.

700 mm.

Guidance for specification option:

Overall width: 1207 mm.


Door panel widths:


  • Sliding panel: 400 mm.
  • Hinged panel: 360 mm.

800 mm.

Guidance for specification option:

Overall width: 1307 mm.


Door panel widths:

  • Sliding panel: 450 mm.
  • Hinged panel: 410 mm.

900 mm.

Guidance for specification option:

Overall width: 1507 mm.


Door panel widths:

  • Sliding panel: 500 mm.
  • Hinged panel: 460 mm.

1000 mm.

Guidance for specification option:

Overall width: 1607 mm.


Door panel widths:

  • Sliding panel: 550 mm.
  • Hinged panel: 510 mm.

Passage height

2000/ 2100 mm.

Guidance for specification option:

Overall height: 2090/ 2190 mm.

Door height: 2021/ 2110 mm.

Finished wall thickness

100 mm.

125 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.
