Cyclone

Verified by manufacturer 2 days ago

CBG

Sealmaster Variant:

External door threshold system.

Jump to:
+44 (0)1223 832851 Website

Application

Specialist applications include rooms with a gas flood fire suppression system installed. studio and music room doors, as well as interview rooms, where a high level of acoustic performance is required and photographic dark rooms where a light, tight seal is needed.


The contact strip combinations provide effective sealing options for outward opening doors. The weatherboard combinations provide effective sealing options for inward opening doors. Weatherboard and contact strips are available with concealed fixings and snap on covers in a range of finishes.


The Cyclone combination seals can be used with virtually all Sealmaster door stop and meeting stile seals to enable a door set to achieve a high level of weatherability, to ensure no rain water flows under the bottom of your door.

Description

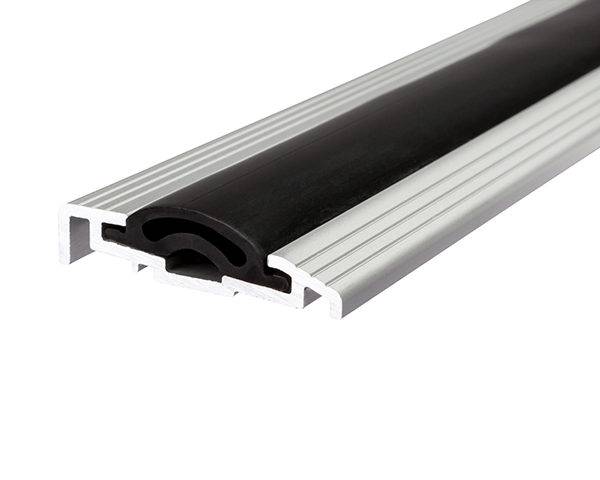

Cyclone is an effective DDA compliant external door threshold system which consists of a threshold plate, compatible with a door contact strip or weatherboard to suit single and double, external doors.


Features and benefits:

  • The product provides a high performance weather, draught proofing, acoustic and light sealing solution.
  • The threshold and contact strip combinations can be used in most internal and external situations, including those with a degree of exposure requiring weather tight seals.
  • Can be used on external doors to comply with Building Regulations Approved Document M to allow ease of access. It can also be used with the Blizzard seal and other Sealmaster stop seals to achieve an exceptional acoustic performance.
  • All fixings are hidden to give clean, crisp lines in an attractive range of finishes.
  • The Cyclone threshold section is available in two low profile versions, one being symmetrical for application on top of carpet or vinyl floor finishes (section TE), the other has a flat face against which carpet or vinyl can be finished neatly (section TD).

General information

Color

Black

Silver

Gold

Finish

Satin

Material

Aluminium

EPDM

Shape

Other

Length

3000 mm

Guidance for specification option:

Maximum

Width

30 mm

40 mm

45 mm

6 mm

Height

13 mm

21 mm

25 mm

35 mm

51 mm

Uniclass

Pr_35_90_33_23 Door threshold weatherstrips and sealsPrimary

CAWS

P21/60 Threshold weatherstrip

P21/850 Threshold weatherstrip

Specification data - Door threshold weatherstrips and seals

Functions

Threshold seal.

Form

Contract strip.

Size

Width: 16 mm.
Thickness: 6 mm.

Colour

Satin Gold.

Length

-

Manufacturer guidance

Maximum 3 m.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Aluminium

EPDM

Literature

Sealmaster Cyclone Technical Data Sheet

Sealmaster Cyclone Technical Data Sheet

Sealmaster Cyclone Application Guide

Sealmaster Cyclone Application Guide
