DaVinci Select Shake Ridge & Hip Caps

Verified by manufacturer 5 months ago

Autumn

Tapco Roofing Products Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A dry-fix ridge and hip cap for all roofs.

Jump to:
BOS
+44 (0)1482 880478 Website

Application

  • To be used in conjunction with other DaVinci Select Shake products.
  • Suitable for all roofs.

Description

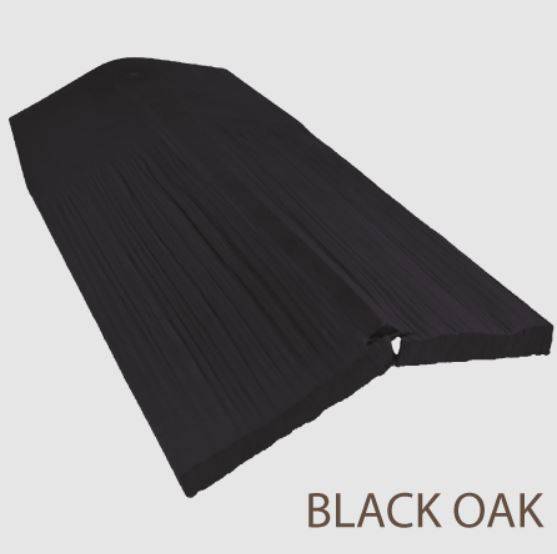

A dry-fix ridge and hip cap for all roofs. Available in three, stocked Select Shake colours. This ridge and hip accessory is manufactured in the same material as the DaVinci Select Shake tiles to beautifully match the roof. Universal fitment for any angle, DaVinci Select Shake Ridge and Hip Caps have a degree of flexibility when fixing and have the same properties as Tapco Roofing Product's roofing shake.


Features and benefits:

  • Lightweight – as low as 14 kg per square metre.
  • Easy to install.
  • Easily cut with a fine-toothed saw or sharp utility blade.
  • Ridges and hips are mechanically fixed.
  • Choice of three colours to match the Select Shake tiles.
  • 40-year warranty.
  • Fully tested to BBA standards, including fire rating, wind, driven snow and rain, and water absorption.
  • DaVinci Select Shake Ridge and Hip Caps are not made from recycled plastics but are manufactured from recyclable virgin polyethylene.

General information

Color

Black

Brown

Finish

Woodgrain

Material

Polyethylene

Shape

Other

Length

465 mm

Width

302 mm

Warranty description

40 year

Uniclass

Pr_35_90_93_29 Dry fixing ridgesPrimary
Pr_35_90_93_28 Dry fixing hips

CAWS

H61/55 Dry capped hips

H61/505 Dry capped hips

H65/55 Dry hips

H60/710 Dry ridges

H65/505 Dry hips

H65/710 Dry ridges

Specification data - Dry fixing ridges

Form

Duo-ridge unventilated dry fixing kits.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

Construction

Composite blend of virgin polyethylene, UV and thermal stabilizers as well as a highly specialized fire retardant.

Dimensions

302 x 465 mm.

Thickness

25 mm (front edge); 6 mm (back edge).

Guidance for specification option:

Wedge shaped.

Weight

1 kg.

Coverage

Guidance for specification option:

  • Coverage (ridge cap): Minimum 3.3 caps per linear metre of ridge (always manually set at a minimum 12" exposure from front of cap to beginning of next overlaid cap).
  • Coverage (Hip): Minimum 3.3 caps per linear metre of hip (always manually set at a minimum 12" exposure from front of cap to beginning of next overlaid cap).

Fire rating

To EN 13501-5, BROOF(t4).

Colour

Autumn.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Recyclability

Manufactured from recyclable virgin polyethylene

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Manufacturer guidance

DaVinci Select Shake Ridge and Hip Caps are not made from recycled plastics.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

20/5765
