Decimetric® Base Frames - Modular Stainless Steel Support Frames
Verified by manufacturer 2 months ago
A modular system of stainless steel base support frames.
Application
Suitable for varied applications including public, commercial, industrial, domestic and anti-vandal environments.
Description
Stainless steel base frames forming part of the Decimetric® system of modular kitchen furniture and equipment. Available in Decimetric® sizing increments and with a range of door options, shelf and drawer configurations.
Features and benefits:

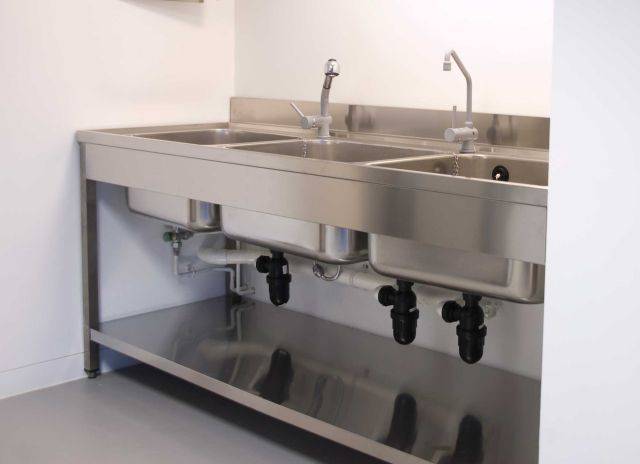

- Units can be combined with Decimetric® Classic sink and worktop configurations and/ or Decimetric® Drainers (standard sink and drainers).
- Adjustable height (without worktop): 810–860 mm.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 600 mm 700 mm |
Height | 660 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/420 Cupboards and storage units N11/320 Fitted wall units N11/310 Fitted base units N11/10 Fitted base units and wall units N12/420 Cupboards and storage units |
Product range |
Specification data - Kitchen drawer units
Form | Perimeter base units. |
Dimensions | 600 x 660 mm.Guidance for specification option: W x H. 700 x 660 mm.Guidance for specification option: W x H. |
Surface finishes | SatinEase. |
Doors | |
Material | Stainless steel grade EN 1.4301. |
Finish and colour | SatinEase. |
Hardware | Not required.Castors: Stainless steel with Teflon.Castors: Zinc-plated with rubber tyre.Extra shelving.Top drawer Ref TD1.5.Guidance for specification option: Drawer height 150 mm, length 400-600 mm. Top drawer Ref TD1.5, lockable.Guidance for specification option: Drawer height 150 mm, length 400-600 mm. Top drawer Ref TD2.Guidance for specification option: Drawer height 200 mm, length 400-600 mm. Top drawer Ref TD2, lockable.Guidance for specification option: Drawer height 200 mm, length 400-600 mm. Panels (back and sides). |
Legs | 40 x 40 mm. |
Valance | 90 mm. Guidance for specification option: Standard. 50 mm. 150 mm. 200 mm. 300 mm. Manufacturer guidanceFront and side. |
Configuration | Decimetric® Legs with frame F. Decimetric® Legs with frame and brace FB. Decimetric® Legs with frame and shelf FS. Decimetric® Legs with frame and 2 shelves F2S. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
