Design Tile - Tile - Vinyl flooring

Verified by manufacturer 1 day ago

1550 Vintage Maple - Wood design

Gerflor Flooring UK Limited Variant:

Design Tile is a flexible interlocking ceramic-look tile system.

Jump to:
01625 428 922 Website

Application

Suitable for heavy-duty commercial applications.

Description

Design Tile is a flexible interlocking ceramic-look tile system designed for durability and ease of use. It withstands rolling traffic, including pallet jacks, and features a 7.8 mm thickness for longevity. The tiles are treated with a PUR+ surface treatment to resist micro-scratches and simplify maintenance. Available in a variety of wood and stone designs, they offer a ceramic tile look. Installation is adhesive-free with an interlocking system that allows for easy removal, reuse, and installation over existing ceramic surfaces. The tiles provide R10 slip resistance and are designed for walking comfort.


Features and benefits:

  • Fast and easy installation, no need to close premises.
  • A highly durable PUR+ surface treatment for easy maintenance.
  • Wear group T/ Type binder content I.
  • Slip resistant – R10.
  • Reduced noise of foot and rolling traffic.
  • Hidden dovetail joint for seamless secure fit.
  • 100% recyclable and contains up to 80% recycled content.


Installation and maintenance:

Should be installed in accordance with the BS 8203: 2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available; consult manufacturer for details.

General information

Color

Beige

Brown

Black

Grey

Yellow

Show more

Material

Vinyl

Shape

Square

Length

457 mm

Width

457 mm

Height

7.8 mm

Warranty description

12 year

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To BS EN ISO 10582.

Use class

To BS EN ISO 10874, Class 34 - 43.

Guidance for specification option:

Commercial, very heavy - Light industrial, heavy.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R10.

Guidance for specification option:

To DIN 51130

Recycled content

80%.

Guidance for specification option:

Contains up to 80% recycled content.

Size

457 x 457 mm.

Guidance for specification option:

5 tiles per box (1.04 sqm)

Thickness

7.8 mm.

Colour and pattern

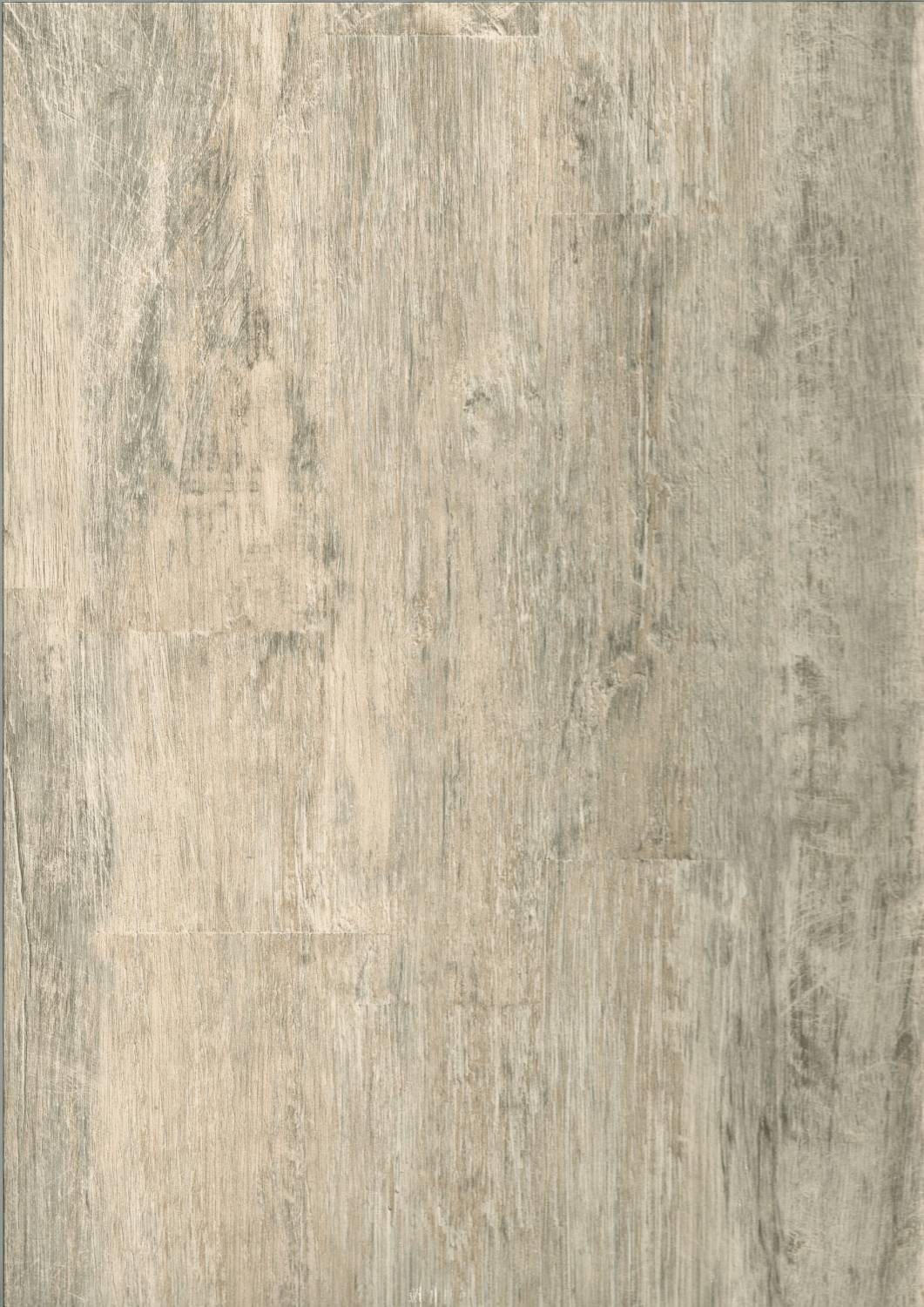

Vintage Maple, wood design.

Wear layer

0.70 mm.

Weight

12000 g/m².

Static electricity

<2 kV.

Guidance for specification option:

to BS EN 1815

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

to BS EN 10456

Fire rating (to BS EN 13501)

Bfl-s1.

Guidance for specification option:

To BS EN 13501-1.

Surface treatment

PUR+.

Wear group

T.

Binder

Type I.

Guidance for specification option:

Binder content to BS EN ISO 10582.

VOC emissions

<100 µg/m³.

Guidance for specification option:

ISO 16000-6 TVOC after 28 days.

Pack size

5 tiles per box (1.04 sqm)

Colour (Light reflectance value (LRV)

31.8.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Vinyl

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Guidance for specification option:

Up to 80% recycled content.

Literature

Design Tile – Brochure

Design Tile – Brochure
