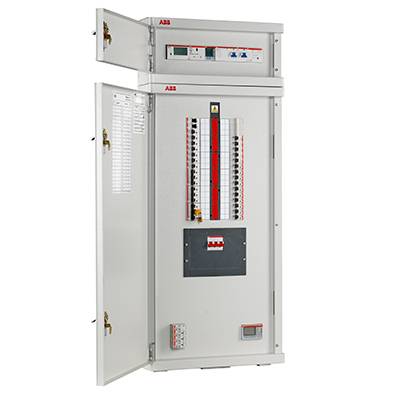

Protecta Plus DB 4 Way 250A - TPN (EPP-W304)
Protecta Plus DB 4 Way 250A - TPN (EPP-W304)
Sub-distribution solution from ABB, tailored to meet the needs of all segments of the building industry.
Application
Sub-distribution solution suitable for all applications from commercial to industrial.
Description
Available in kit form for over-the-counter supply, the latest generation sub-distribution solution from ABB has been tailored to meet the needs of all segments of the building industry.
Features and benefits:
- Structure in epoxy-coated metal sheets, 1 mm thickness.
- Wall installation for indoor environments.
- Degree of protection: IP43 with door/ mechanical resistance IK07.
- Busbar rating: 250 A.
- Number of ways: 4, 8, 12, 16, 20 or 24.
- Maximum ambient temperature: +35°C.
- Compliance with BS EN IEC 61439-1 and BS EN IEC 61439-2.
- Simple wiring of all cabinets, both horizontally and vertically.
- Easy internal accessibility for wiring operations and maintenance.
- Pre-packaged kits for specific applications (e.g. surge protection, metering).
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Textured Powder-coated |
Material | Metal |
Shape | Rectangle |
Length | 125 mm Manufacturer guidanceDepth. |
Width | 450 mm |
Height | 590 mm 730 mm 870 mm 1050 mm 1220 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/320 Distribution boards |
Specification data - Distribution boards
Standards | To BS EN IEC 61439-1 and BS EN 61439-2. |
Rated operational voltage (Ue) | 415 V a.c. |
Incoming device | Guidance for specification option: Consult manufacturer's literature for incoming connection kits and insert requirements. |
Outgoing devices | |
Type | Guidance for specification option: Consult manufacturer for miniature circuit boards (MCBs) and residual circuit breakers with overcurrent protection (RCBOs), and insert requirements. Manufacturer guidanceAvailable to specify separately. |
Quantity | Four. |
Busbars and connections | |
Type | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Rated current (InA) | 250 A. |
Rated short-time withstand current (Icw) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. Rated conditional short-circuit current (Icc): 35 kA. |
Neutral and earth bars | Two brass bars each size (7*10) mm. |
Spare ways | As circuit schedules.Fit with blank plates.Guidance for specification option: See Accessories for related options. |
Enclosure | |
Ingress protection (minimum) | With door: IP43. |
Material | Cold-rolled sheet steel, 1 mm thick. |
Finish | Electrostatic powder-coating, textured finish. |
Colour | RAL 7035 Light Grey. |
Locking mechanism | Door closing latch.Guidance for specification option: Standard. Lock and key. |
Accessories | None.Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. Incoming metering.Guidance for specification option: Consult manufacturer for options and insert requirements. Surge protection.Guidance for specification option: Consult manufacturer for options and insert requirements. Other.Guidance for specification option: Consult manufacturer for all options and insert requirements. Accessories include:
|
Dimensions | 590 x 450 x 125 mm. Guidance for specification option: Height x width x depth. Distance between fixing centres: 500 x 358 mm. |
Rated insulation voltage | 690 V. |
Rated frequency | 50/ 60 Hz. |
Door | Opening angle: 180°. |
Other features | Position of knockouts: top and bottom. |
