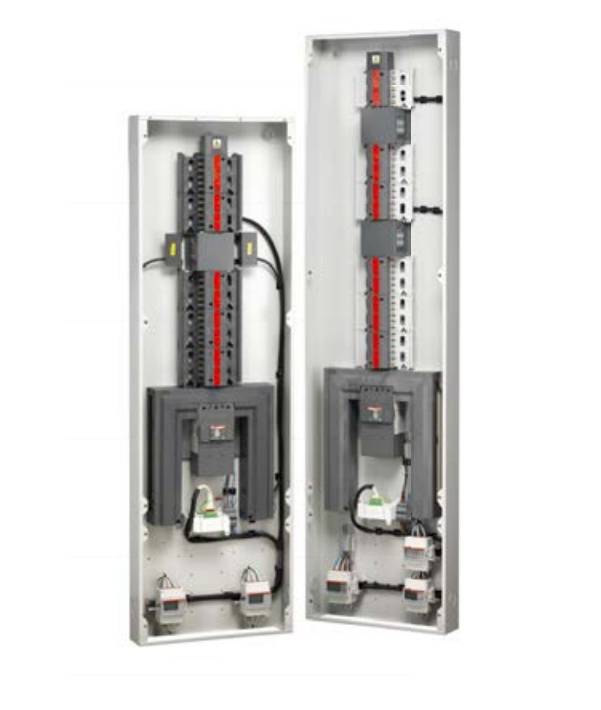

Protecta Plus vertical split load 8 + 4, TPN
Protecta Plus vertical split load 8 + 4, TPN
Sub-distribution solution from ABB, tailored to meet the needs of all segments of the building industry.
Application
Sub-distribution solution suitable for all applications and environments.
Description
Available in kit form for over-the-counter supply, the latest generation sub-distribution solution from ABB has been tailored to meet the needs of all segments of the building industry.
Features and benefits:
- Structure in epoxy-coated metal sheets, 1 mm thickness.
- Wall installation for indoor environments.
- Degree of protection: IP43 with door/ mechanical resistance IK07.
- Main isolator rating: 125, 160 or 250 A.
- Number of ways: 8+4, 8+8, 12+8, 12+12, 16+8, 8+4+4 or 12+8+4.
- Supplied with main isolator and meters, pre-configured to internal current transformer sizing.
- Outgoing devices to be ordered separately.
- Three pole as standard; four pole option available.
- Maximum ambient temperature: +35°C.
- Compliance with BS EN IEC 61439-1 and BS EN IEC 61439-2.
- Simple wiring of all cabinets, both horizontally and vertically.
- Easy internal accessibility for wiring operations and maintenance.
- Pre-packaged kits for specific applications (e.g. surge protection).
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Textured Epoxy |
Material | Metal |
Shape | Rectangle |
Length | 125 mm Manufacturer guidanceDepth. |
Width | 450 mm |
Height | 1090 mm 1270 mm 1380 mm 1440 mm 1580 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/320 Distribution boards |
Specification data - Distribution boards
Standards | To BS EN IEC 61439-1 and BS EN 61439-2. |
Rated operational voltage (Ue) | 415 V a.c. |
Incoming device | Manufacturer's standard. |
Outgoing devices | |
Type | Guidance for specification option: To be ordered separately. Consult manufacturer for options and insert details. Manufacturer guidanceAvailable to specify separately. |
Quantity | 8 + 4. |
Busbars and connections | |
Type | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Rated current (InA) | 125 A.Guidance for specification option: Standard cable capacity: 50 mm². 160 A.Guidance for specification option: Standard cable capacity: 70 mm². 250 A.Guidance for specification option: Standard cable capacity: 95 mm². Manufacturer guidanceConsult manufacturer for details if larger cables are required. |
Rated short-time withstand current (Icw) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. Rated conditional short-circuit current (Icc): 35 kA. |
Neutral and earth bars | Two brass bars each size (7*10) mm. |
Spare ways | As circuit schedules.Fit with blank plates.Guidance for specification option: See Accessories for related options. |
Enclosure | |
Ingress protection (minimum) | With door: IP43. |
Material | Cold-rolled sheet steel, 1 mm-thick. |
Finish | Electrostatic powder-coating, textured finish. |
Colour | RAL 7035 Light Grey. |
Locking mechanism | Door closing latch.Guidance for specification option: Standard. Lock and key. |
Accessories | None.Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. Surge protection.Guidance for specification option: Consult manufacturer for options and insert requirements. Other.Guidance for specification option: Consult manufacturer for all options and insert requirements. Accessories include:
|
Dimensions | 1090 x 450 x 125 mm. Guidance for specification option: Height x width x depth. Distance between fixing centres: 1000 x 358 mm. |
Integral accessories | Isolator Guidance for specification option: Meters are MID, Modbus (RS485) and pulse output. |
Poles | Three. Guidance for specification option: Standard. Four. |
Rated insulation voltage | 690 V. |
Rated frequency | 50/ 60 Hz. |
Door | Opening angle: 180°. |
Other features | Position of knockouts: top and bottom. |
