Door Closer - 201.500.024.9600.SIL.CE - Door Closer

Verified by manufacturer 9 months ago

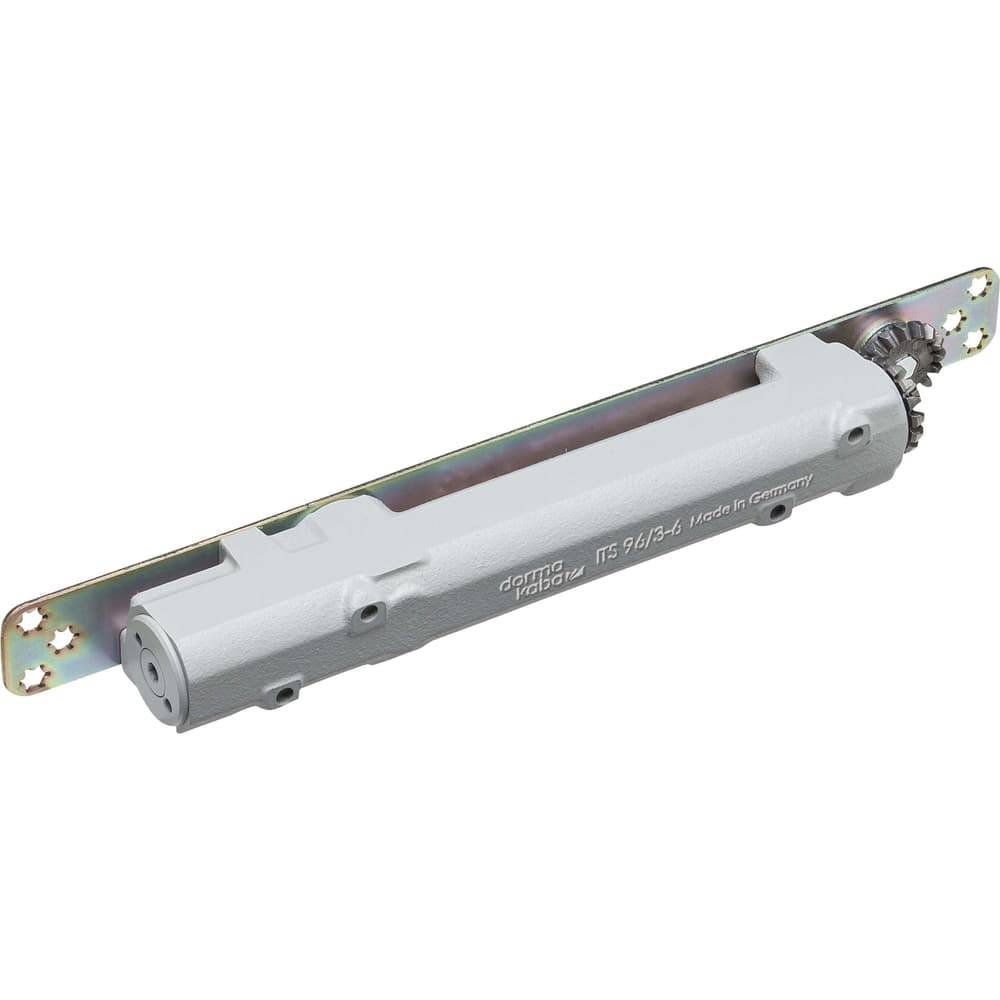

ITS 96 EN 2–4

3v Architectural Hardware Ltd Variant:

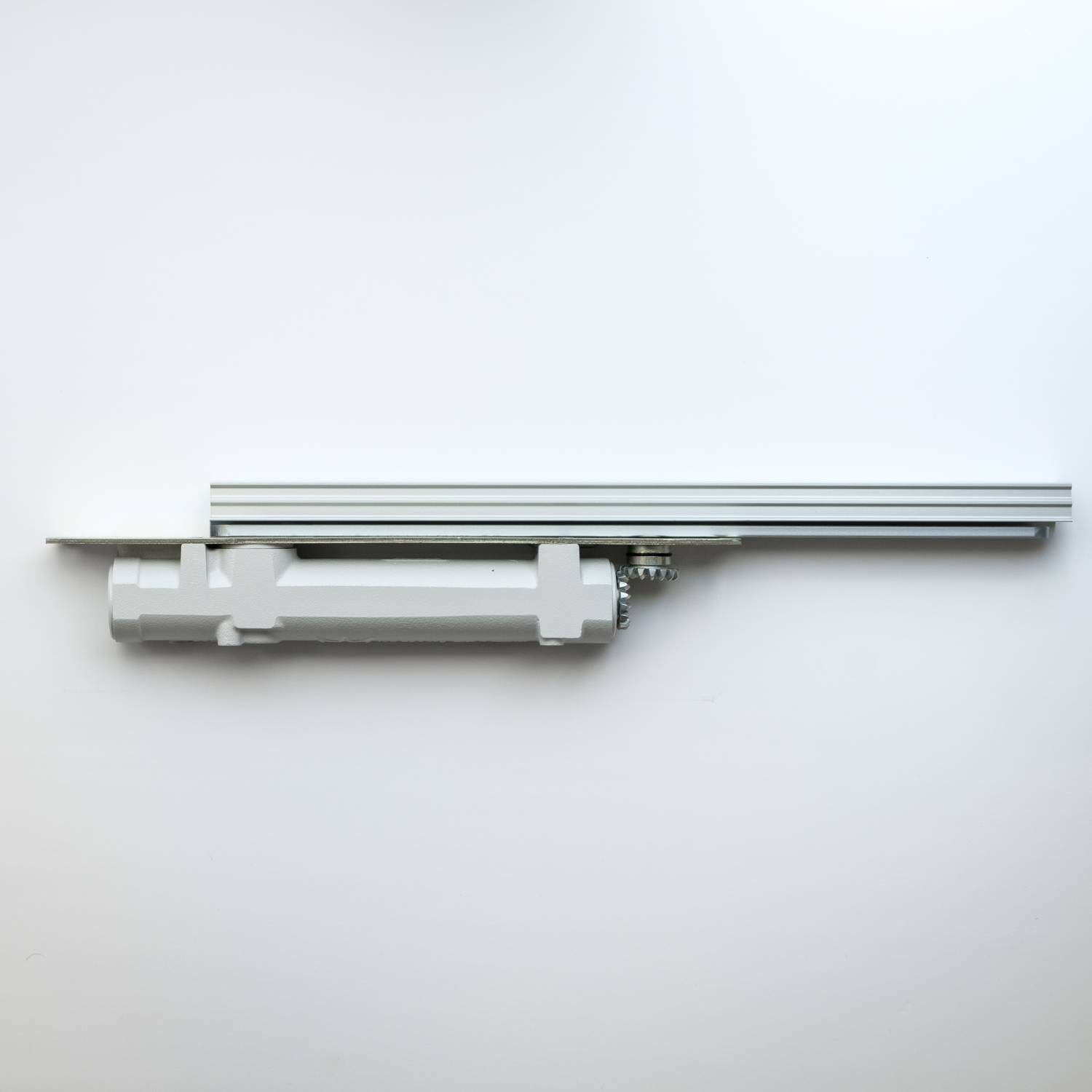

Concealed cam-action, door closer system.

Jump to:
+44 (0)1344 623600 Website

Application

Universally suitable for single or double doors.

Description

Door closer designed for concealed installation in the door leaf and frame.


Suitable for almost every type of door, it offers a wide variety of functions and flexibility combined with a high level of quality.


Features and benefits:

  • Concealed installation.
  • Adjustable closing force for doors up to 1100mm.
  • Optional hold-open.
  • Adjustable latch action.
  • Cushioned limit stay.
  • Anti-tamper protection.

General information

Color

Silver

Finish

Polished

Material

Stainless steel

Shape

Other

Length

277 mm

291 mm

Width

32 mm

39.5 mm

Height

42 mm

51 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Door closer power size

2–4.

Guidance for specification option:

  • Leaf thickness (minimum): 40 mm.
  • Width (maximum): 1100 mm.
  • Leaf weight (maximum): 130 kg.

Manufacturer guidance

For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.

Form

Overhead, concealed.

Closer functions

Back check.

Latching.

Controlled closing.

Mechanical hold-open.

Materials and finishes

-

Colour

Silver.

Force

EN 2–4 for doors up to up to 1100 mm wide.

Dimensions

277 x 32 x 42 mm.

Weight

1.3 kg.

Slide channel

G 96 N, 440 x 31 x 20 mm.

Guidance for specification option:

The G 96 N Punched arm is non-handed and includes the arm, slide channel, slide block, cushioned limit stay and fixing

screws.


The G 96 N Punched arm cannot be used with the reduced spindle unit.

G 96 N20, 440 x 20 x 12 mm.

Guidance for specification option:

The G 96 N20 slide channel pack is handed, and includes the arm, slide channel, slide block, cushioned limit stay and fixing screws, and can be combined with both door closer sizes in the ITS 96 range.


The G 96 N20 slide channel is adjustable to K8/K12.

Hold-open unit

Not required.

RF G 96 N.

RF G 96 N20.

Manufacturer guidance

The RF hold-open unit enables doors to be securely held without any fall-back at precisely the required position up to an opening angle of approx. 120°.

The pull-off force can be adjusted to any door situation.

The RF mechanism is non-handed.


Not required for fire and smoke check doors.

Integral accessories

Intumescent pack and fixing screws.

Fire classification

Certifire Approved, CF 140.

Thickness

≥ 40 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

Use as scrap metal

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Similar products from 3v Architectural Hardware Ltd

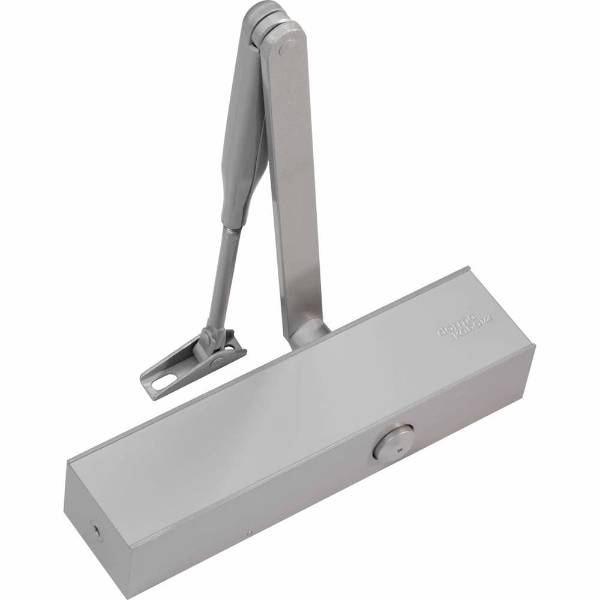

Door Closer - 200.300.024.7201.FC.SQ.SSS.CE - Overhead Door Closer
