DrillFast® A4/316 Specialist 'Thick to Thin' Clamping Fastener
Verified by manufacturer 1 day ago
Specialist stitching fastener designed for fastening components to thin sheet metal.
Application
For fixing brackets, top-hats and other components to thin steel sheeting (e.g. composite panel skin) within roofing and cladding systems.
Description

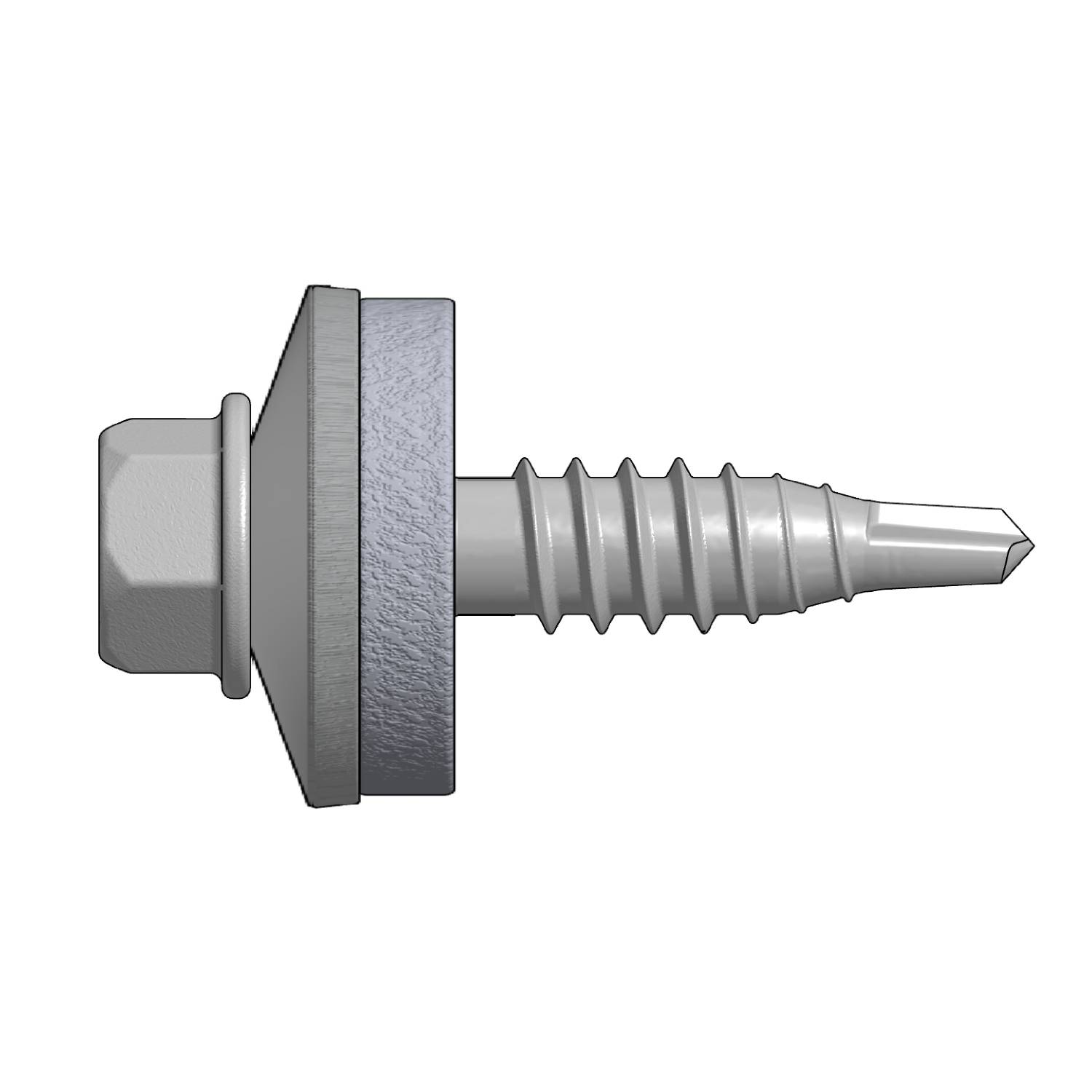

The DF3-SSA4-LS fastener has a specially designed drill point and thread geometry for fixing to thin steel sheet. The conical bonded washer achieves a sealed connection on various application depths.
Features and benefits:
- A4/316 grade stainless steel (1.4401).
- Free-spin zone to prevent unwinding.
- High pull-out performance from thin steel sheet.
- Supplied pre-assembled with an aluminium-backed ethylene-propylene diene monomer (EPDM) sealing washer (19 mm diameter).
General information
Color | Silver Other Manufacturer guidanceEither mill finish or powder-coated to bespoke project colours. |
Finish | Coated Mill Powder-coated |
Material | Stainless steel EPDM |
Length | 28 mm |
Width | 6.3 mm |
Warranty description | 40 year Guidance for specification option: Up to 40 years, consult manufacturer for details. Dependent on environment. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Specification data - Self-drilling screws
Material | Stainless steel. |
Finish | Powder-coated (organic).Guidance for specification option: To bespoke project colours. Consult manufacturer and insert requirements. Mill. |
Head type | Hexagonal with EPDM washer.Guidance for specification option: Head: 8 mm. |
Size | |
Diameter | 6.3 mm. |
Length | 28 mm. |
Washers | Aluminium/ EPDM.Guidance for specification option: 19 mm-diameter. AC19. |
Execution | Manufacturer guidanceSee manufacturer's literature for full installation and handling details. |
Drilling capacity | Steel sheets, up to 3 mm-thick. |
Resistance | 0.7 mm steel: 1.58 kN. Guidance for specification option: Fastener pull-out performance. |
Sustainability data
Material | Stainless steel EPDM |
