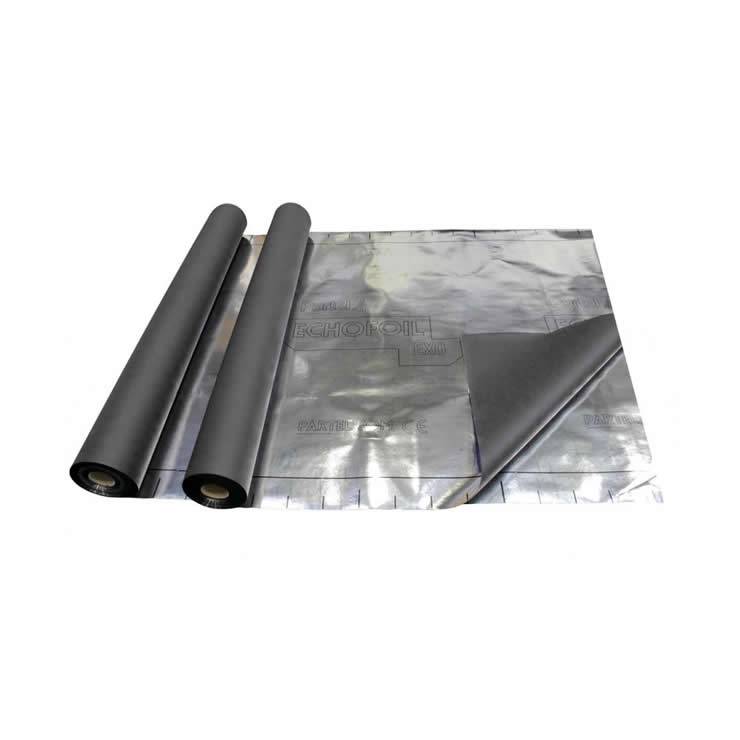

ECHOFOIL EXO - Reflective Breather Membrane - Breathable Foil Membrane

Verified by manufacturer 2 days ago

PARTEL Third party certifications:
  • EPD

    EPD

    Certificate type

  • DoP

    DoP

    Certificate type

Reflective breather membrane with one of the lowest emissivity values on the market. Suitable for wall, ceiling and roof applications. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

ECHOFOIL EXO is a highly reflective breather membrane designed for use on the cold side of insulation on wall, ceiling and roof applications.


Suitable for:

  • Onsite or offsite construction.
  • Timber frame, masonry or steel construction.
  • Warm, cold and hybrid roof applications.
  • Pitched or flat roofs.

Description

ECHOFOIL EXO is a reflective breather membrane that has been designed to enhance the thermal performance of timber frame construction.


Features and benefits:

  • Low emissivity value ≤ 0.05.
  • Enhances thermal performance with an of R-value 0.78 m²K/W.
  • Highly-breathable membrane with low Sd value (0.08 m).
  • Windtight and waterproof.
  • Optimal UV stability.

General information

Color

Silver

Finish

Reflective

Material

Foil

Length

50000 mm

Width

2700 mm

3000 mm

Warranty description

Ten year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H67/290 Vapour-permeable underlay

H65/235 Vapour-permeable underlay

H65/22 Vapour permeable underlay

H64/307 Vapour-permeable underlay

H64/22 Vapour-permeable underlay

H62/3 Roof slating

H62/235 Vapour-permeable underlay

H61/235 Vapour-permeable underlay

H61/22 Vapour-permeable underlay

H60/235 Vapour-permeable underlay

H60/22 Vapour-permeable underlay

H60/120 Concrete roof tiling

H60/105 Clay roof tiling

H51/110 Cladding

H20/155 Sheet cladding (attached to timber battens)

H22/130 Breather membrane

H21/130 Breather membrane

H31/280 Breather membrane

H40/110 GRC cladding

H42/115 Precast composite

H42/110 Precast homogeneous

P10/320 Breather membrane

H20/10 Sheet cladding

P10/65 Breather membrane

H41/110 GRP single-skin cladding

H51/110 Cladding

H30/350 Breather membrane

H92/785 Breather membrane

H21/20 Breather membrane

H22/20 Breather membrane

H30/50 Breather membrane

H31/55 Breather membrane

H42/110 Precast homogeneous

H42/115 Precast composite

Product range

Breather Membranes

Specification data - Vapour-permeable sheets

Standard

To BS EN 13859-2.

Performance characteristics

Low emissivity value ≤0.05; Thermal resistance: 0.78 m²K/W; Sd value: 0.08 m.

Guidance for specification option:

Highly-breathable membrane with low Sd value.

Class (minimum)

W2.

Material

Foil.

Form

Non-woven.

Third-party certification

Environmental Product Declaration (EPD).

Guidance for specification option:

Declaration number: EPDIE-22-82.

Weight (minimum)

150 g/m².

Reflective face

95%.

Sd value

To EN ISO 12572, 0.08 m.

Reaction to fire

To EN 13501-1, Class E.

Tear resistance

MD/ CD to EN 12310-1, >160 N/ >160 N.

TensileStrength

MD/CD to EN 12311-1, 300 / 250 N/50mm.

Emissivity

To EN 15976, ≤0.05.

UV resistance

Three months.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Foil

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.44 kg CO₂ eq/m²

Manufacturer guidance

Biogenic carbon content in product: 1.04 E-03 kg carbon per m².

Expected Life

Lifetime

Third party certifications

Third party certifications

EPD

EPD

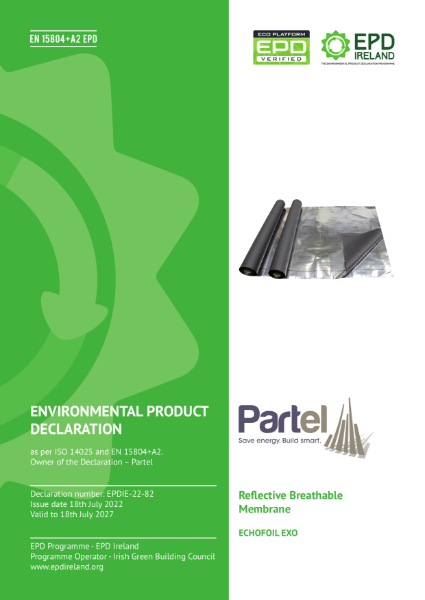

ECHOFOIL EXO - Environmental Product Declaration

DoP

DoP

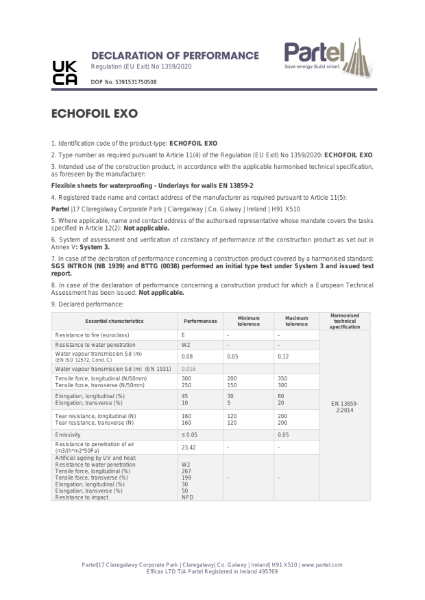

ECHOFOIL EXO DoP
