Eco-bed: Environmentally Friendly Bedding Mortar For Paving Installation

Verified by manufacturer 15 days ago

Instarmac Group plc

Environmentally friendly bedding mortar for paving installation.

Jump to:
+44 (0)1827 254400 Website

Application

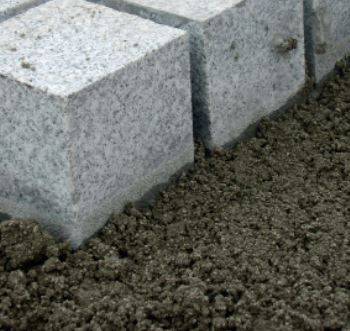

  • The product provides a perfect bound base for natural stone paving and cobbles, concrete paving, flags, block paving and 20mm Porcelain tiles, which, once laid with UltraScape eco-bed are able to accept foot traffic after just 12 hours and vehicular traffic after 24 hours.
  • The material is also not subject to environmental erosion, which can lead to increased point loads on slabs and consequent breakage.

Description

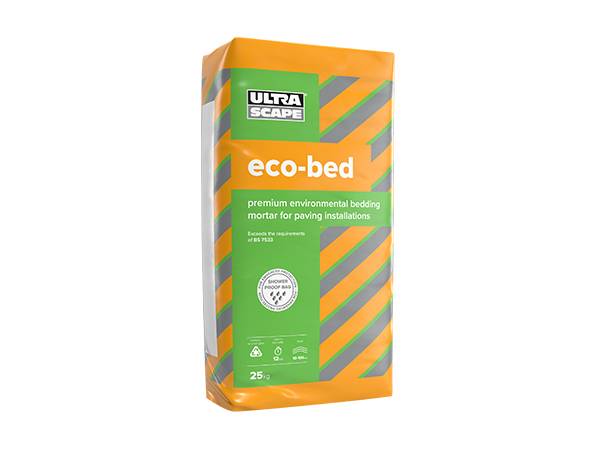

UltraScape eco-bed is formulated from selected cements and graded fillers. The pre-blended fine bedding concrete is supplied in 25 kg bags or alternatively, for those large projects, in 30 tonne bulk silos. The product can be laid from 10–100 mm in one pass with greater depths achievable using successive layers. The material mixes easily on-site with the addition of water and provides a compressive strength of 45 N/mm² after 28 days complying fully with BS 7533. This material should not be used in temperatures below 5°C.


Features and benefits:

  • Can be laid from 10—100mm in one pass.
  • Shrinkage compensated.
  • BS 7533 compliant.
  • Small contractor friendly units.
  • Pre-blended - just add water.
  • Open to pedestrian traffic in 12 hours.
  • Open to vehicular traffic in 24 hours.
  • Long-term durability.

General information

Color

Grey

Finish

Cement

Material

Cement

Guidance for specification option:

UltraScape eco-bed is formulated from selected cements and graded fillers.

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_53_61 Paving laying course mortarsPrimary

CAWS

Q25/31 Concrete flag paving systems

Q24/113 Conventional concrete block paving overlay

Q24/130 Natural stone sett paving

Q24/110 Conventional concrete block paving

Q24/120 Conventional clay paver paving

Q25/125 Concrete flag paving overlay system

Q25/120 Concrete flag paving system

Q25/375 Sand/ fine aggregate for site-mixed mortar

Q25/425 Fine aggregate for jointing concrete sett paving

Q25/390 Sand/ fine aggregate for unbound laying course and jointing of concrete flag paving

Q25/435 Primer for underside of flags and slabs

Q24/115 Permeable concrete block paving – total infiltration

Q24/126 Permeable clay paver paving – partial infiltration

Q24/128 Permeable clay paver paving – no infiltration

Q24/124 Permeable clay paver paving – total infiltration

Q24/117 Permeable concrete block paving – partial infiltration

Q24/119 Permeable concrete block paving – no infiltration

Q24/15 Conventional clay paver paving

Q24/10 Conventional concrete block paving

Q25/420 Sand/ fine aggregate for laying course of concrete sett paving

Specification data - Paving laying course mortars

Standard

In accordance with BS 7533.

Delivery condition

Bagged.

Guidance for specification option:

25 kg bag.

Silo.

Guidance for specification option:

30 tonne bulk silo.

Moisture content

Moist mix.

Coverage

1 m² at 13.36 mm.

Guidance for specification option:

One 25 kg bag.

Density

2088 kg/m³.

Yield - Mortar

13.36 L.

Guidance for specification option:

Approximately per 25 kg bag.

Compressive strength – 1 day

20 N/mm².

Compressive strength – 7 days

36 N/mm².

Compressive strength – 28 days

45 N/mm².

Flexural strength

6.5–7.5 N/mm².

Guidance for specification option:

7—28 days.

Modules of elasticity

< 21 500 N/mm².

Guidance for specification option:

28 days.

Adhesion

1.25 N/mm².

Guidance for specification option:

Without primer - 28 days.

1 day - 0.72 N/mm².

7 days - 0.96 N/mm².

2.18 N/mm².

Guidance for specification option:

With primer - 28 days.

1 day - 1.73N/mm².

7 days - 2.02N/mm ².


Workability

50 minutes at 20°C.

Shrinkage

0.09%.

Guidance for specification option:

At 28 days.

1 day - 0.01%.

7 days - 0.04%.

Colour:

Grey.

Guidance for specification option:

As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cement

Guidance for specification option:

UltraScape eco-bed is formulated from selected cements and graded fillers.
