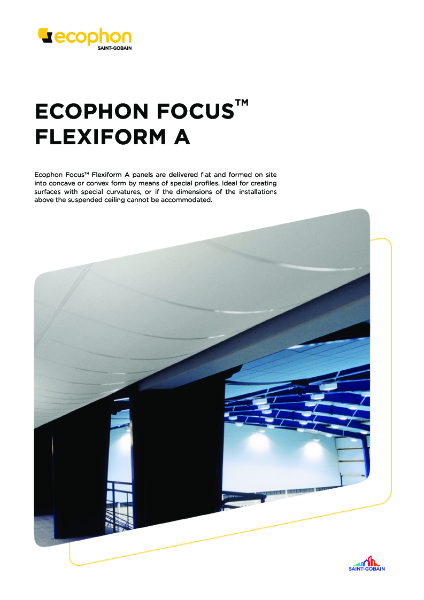

Ecophon Focus™ Flexiform A - Ceiling System

Name: Ecophon Focus™ Flexiform A - Ceiling System
Brand: Saint-Gobain Ecophon
SKU: nnLNncfx5XbJCHSWcYteF2

Verified by manufacturer 2 days ago

M31 - Flexible panels

Saint-Gobain Ecophon

Product certifications:

European Technical Approval (ETA)
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
EPD
Certificate type

A modular suspended ceiling system with concave or convex profiles.

Jump to:

+44 (0)1256 855250 Website

Application

Ceiling applications which require curvatures, or in which the dimensions of the installations above the ceiling cannot be accommodated, including healthcare, education and offices.

Description

A modular suspended ceiling system with concave or convex profiles. Panels are delivered flat and formed on site.

Features and benefits:

Absorption class A.
Natural edges.
Easy to clean with a wet wipe.

Note: These tiles are non-demountable.

General information

Color	White Guidance for specification option: NCS S 0500-N. 85% light reflectance. Gloss <1. Black Grey Orange Blue Pink Green Yellow Red Other Show more
Finish	Natural Other Guidance for specification option: Akutex™ FT.
Material	High-density glass wool
Shape	Rectangle
Length	1200 mm 1600 mm 2000 mm 2400 mm
Width	600 mm
Height	30 mm Guidance for specification option: 30 mm standard tile thickness. 200 mm standard overall depth of system.
Warranty description	Ten year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/265 Infill units K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Classification data
System performance	Acoustic performance
Ceiling support	Connect™ T24 grid with Flexiform profile. Guidance for specification option: Consult manufacturer's literature for dimensional requirements of the Flexiform profile.
Support fasteners	Connect™ adjustable hanger with Connect™ hanger clip. Flexiform clip. Connect™ angle bracket.
Ceiling units	Ecophon Focus™ Flexiform A - glass wool infill units.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Insert requirements or omit.
Installation	M31.
Indoor climate	Eurofins Indoor Air Comfort® Gold, French VOC A+.
Sound absorption	Class A to BS EN ISO 11654. Guidance for specification option: Noise reduction coefficient: 0.90 αw (Overall depth of system: 200 mm).
Reaction to fire	To EN 13501-1, A2-s1,d0.
Size (length x width)	1200 x 600 mm. 1600 x 600 mm. 2000 x 600 mm. 2400 x 600 mm.
Thickness	30 mm.
Trim	None.
Weight	2.4 kg/m².
Standard	CE marked according to the European harmonized standard EN 13964.
Finish	White frost. Guidance for specification option: NCS S 0500-N. 85% light reflectance. Gloss <1. Moonlight sky. Highland fog. Sunset heat. Ocean storm. Morning drizzle. Peach rose. Goji berry. Scallop shells. Fresh clover. Sage garden. Eucalyptus leaf. Summer forest. Golden field. Ruby rock. Wet sand. Silent steam. Dark diamond. Cloudy day. Volcanic ash. Silver stone. Silk slate.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	High-density glass wool
A1–A3 ('Production stage')	Embodied carbon as defined in BS EN 15804
Normalized unit
Declared unit	3.1 kg CO₂ eq/m² Certified Lower emissions Guidance for specification option: A1–C4 figure.
Recyclability	Fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	39 %
Expected Life	50 year
