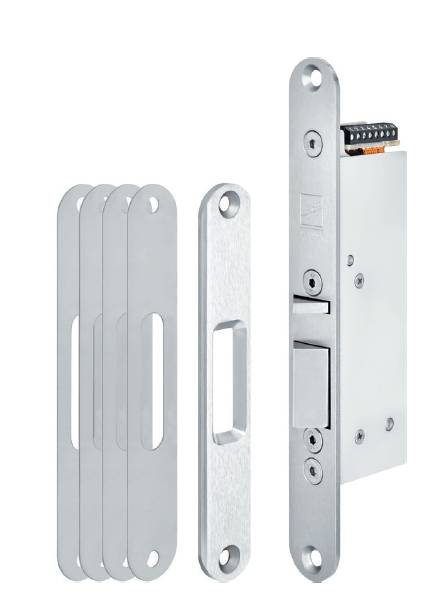

Electric Strike 54 mm 24 V (FF351U80)

Name: Electric Strike 54 mm 24 V (FF351U80)
Brand: Abloy UK
SKU: nkfdsUbn2sLjyXmZ5PP2aL

Verified by manufacturer 11 months ago

Abloy UK

Fail unlocked electric strike for thicker doors up to 54 mm.

Jump to:

+44 (0)1902 364500 Website

Application

Suitable for use in lock systems or sound proof doors with emergency route requirements, including as a supplementary locking system for installation in fire doors.

Description

Fail unlocked electric strike that operates according to the quiescent current principle and is used for locking stop and pendulum doors up to 54 mm thick.

Features and benefits:

Operating voltage 24 V d.c.
DIN left and right usable.
Keep pre-load maximum: 5000 N.
Break-in resistance: 5000 N.
Mounting distance between face plate and striking plate 3 mm (minimum 2 mm, maximum 4.5 mm).
Four adhesive spacers.
Monitoring contact integrated in housing.
Vertical and horizontal universal installation position in the door frame or in the door leaf.
Holding force of 5000 N.
Reliable unlocking under preload.
Monitoring contact and armature contact integrated.
Sturdy design for demanding requirements.

General information

Material	Steel
Size	200 x 25 x 42 mm

Uniclass	Pr_75_30_27_26 Electric strikes and faceplatesPrimary
CAWS	P21/24 Door locks P21/515 Door locks P21/28 Door latches P21/540 Door latches

Specification data - Electric strikes and faceplates

Standards	To BS EN 13637 when installed on escape routes.
Rated operational voltage (Ue)	24 V d.c.
Operation in the event of mains failure	Fail unlocked.
Monitoring	Monitoring contact (RR).
Material and finish	Stainless steel.
Colour	Self-coloured.
Execution	Installing electric locks.

Product Reference	Electric Strike 54 mm 24 V (FF351U80)
Electrical resistance	150 Ω.
Power consumption	160 mA.
Resistance	5000 N. Manufacturer guidance Resistance against door being forced.
Height	200 mm.
Width	25 mm.
Depth	42 mm.
Latch	5000 N. Manufacturer guidance Max. latch preload.
Cycles	20 0000. Manufacturer guidance Continuous function load cycles.
Configuration	Non-handed.
