Elevate Privacy Cubicles - Unframed Panel Cubicle
Verified by manufacturer 1 day ago
Elevate - Privacy MR MFC
Elevate - Privacy MR MFC

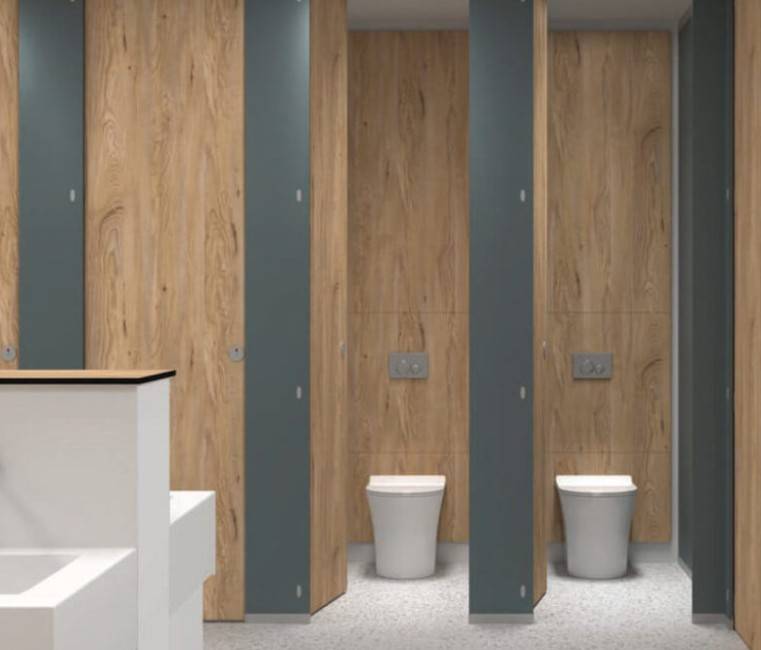

Unframed, floor-to-ceiling custom-fit panel cubicles with enhanced height and privacy.
Application
Elevate cubicles offer enhanced height and privacy for superior comfort and security. Durable nickel ironmongery, including essential safety features like lift-off hinges and emergency release locks, makes them ideal for education and hospitality environments.
Description
Unframed, custom-fit panel cubicles with enhanced height and privacy, available in moisture-resistant melamine faced chipboard (MR MFC) or solid grade laminate (SGL).
Features and benefits:
- 4 Week lead time from drawing approval.
- Made to measure - helps to create a bespoke washroom.
- Offers enhanced height and privacy.
- Wide range of colour options.
- High quality.
- Doors are fitted with lift-off emergency hinges as well as an emergency release lock.
- Robust, powder-coated nickel ironmongery ensures durability.
- Panels do not need to be altered on site (scribing may be required).
- Minimum of 20 mm ceiling clearance.
- All panels are fitted to the floor, with the only gap being 10 mm below the door.
- Hat/ coat hooks included as standard.
Available in a standard version with a minimalist aesthetic and floating appearance (specified separately).
General information
Color | White Blue Grey Brown Turquoise Manufacturer guidanceSee the Colour Selector brochure for swatches. |
Finish | Laminated Other |
Material | MFC Solid grade laminate (SGL) Aluminium Acrylonitrile butadiene styrene (ABS) |
Length | 1525 mm 1840 mm Bespoke Guidance for specification option: Please note: Cubicles are priced as standard 1525 (1500 mmm partitions), prices increase if larger partitions are required up to 1840 mm. Manufacturer guidanceDepth. |
Width | Bespoke |
Height | 2790 mm Bespoke |
Warranty description | Five year Guidance for specification option: MR MFC. Ten year Guidance for specification option: SGL. |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Classification data | |
Panels | 600 kg/m³ moisture-resistant melamine faced chipboard (MR MFC), 19 mm. |
Panel supports | Aluminium, nickel painted polyester powder-coated (PPC) floor channel. |
Pilasters | 600 kg/m³ moisture-resistant melamine faced chipboard (MR MFC), 19 mm. |
Doors | 600 kg/m³ moisture-resistant melamine faced chipboard (MR MFC), 19 mm. |
Lippings | 2 mm matching acrylonitrile butadiene styrene (ABS). |
Hardware | Aluminium, nickel painted polyester powder-coated (PPC) lift-off gravity hinges with front caps. Indicator bolt and keeper. Guidance for specification option: Hinges: Option to set door to fall closed or open. Indicator bolt: Aluminium slide action lock with no visible fixings. Circular flush fitting faceplate and emergency release facility. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Dimensions | Finished floor level: 2790 mm. Panel height: Up to 2780 mm. Partition depth: As standard 1525 mm (1500 mm deep partition panels). Maximum 1840 mm. Door size: Consult manufacturer for details. Manufacturer guidanceConsult manufacturer for further details. |
Headrail | Aluminium, nickel painted polyester powder-coated (PPC) slimline ‘J’ channel with rear fixings. |
Floor Clearance | 0 mm (10 mm below doors). |
Finish | Icy white U11027. Royal white U11209. Light beige U16007. Carmine red U17005. Volcanic black U12000. Light grey U12188. Orchidea U17141. Be rooted U16058. Manhattan U12204. Signal grey U12248. Skyblue U18001. Water blue U18002. Metallic black U12233. Slate grey U12231. Java U18008. Gentian blue U18059. Zinc yellow U15194. Orange U16010. Heaven blue U18068. Pacific U18079. Dark blue U18004. Fjord U18501. London oak silver R20098. Lindberg oak R20021. Jade U19005. Charteruse U19508. Portland ash black R34032. Caviar silver S63066. Natural chalet oak R20038. Grey sanoma oak R20039. Connery natural R20457. Connery truffle R20458. Okapi walnut R30135. Mountain ash R34033. Costa anthracite F76169. Costa beige F76170. Natural sangha wenge R50004. Clay sangha wenge R50003. Bellato grey F76044. Inox grey F76112. Manufacturer guidanceSee the Colour Selector brochure for swatches. |
Fixings | Partition fixed to wall and floor: Aluminium, nickel painted polyester powder-coated (PPC) ‘U’ channel. Pilaster fixed to wall: Aluminium, nickel painted polyester powder-coated (PPC) ‘L’ channel. Pilaster fixed to partition: Aluminium, nickel painted polyester powder-coated (PPC) ‘U’ channel. |
Size | Manufacturer's standard. Guidance for specification option: Pilaster sizes are designed and proposed based on site sizes or layout drawings. Consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | MFC Solid grade laminate (SGL) Aluminium Acrylonitrile butadiene styrene (ABS) |
Recyclability | MR MFC can be recycled into chipboard or as bio-mass. SGL can only be used as bio-mass. Aluminium Ironmongery can be recycled repeatedly without losing it's quality. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Expected Life | Five year Ten year |
