Verified by manufacturer 3 months ago
200 mm
Heavy duty aluminium retractable loft ladder. Without hatch box and trap door. For use on a mezzanine floor or fitted within a wall aperture.
Mezzanine applications.
Wall access applications.

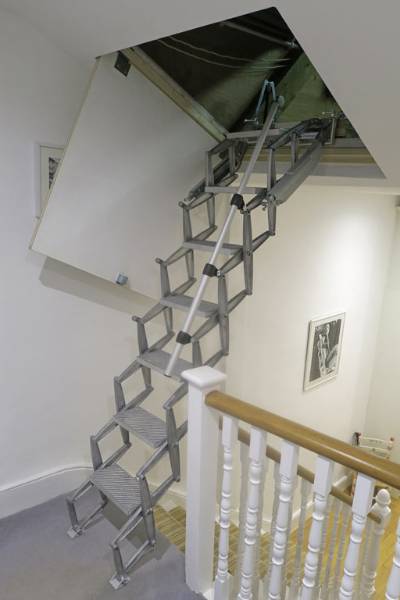

Loft applications.

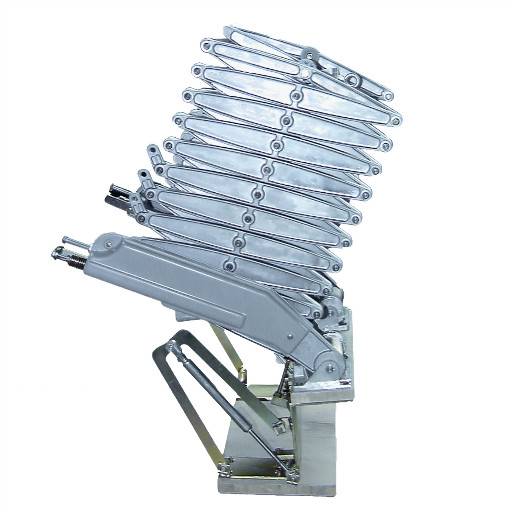

Heavy duty retractable ladder for use on a mezzanine floor or fitted within a vertical wall aperture. Aluminium concertina loft ladder. Supplied as an easy to fit unit without a hatch box. The Elite Vertical loft ladder is manufactured from high strength die-cast aluminium alloy components.

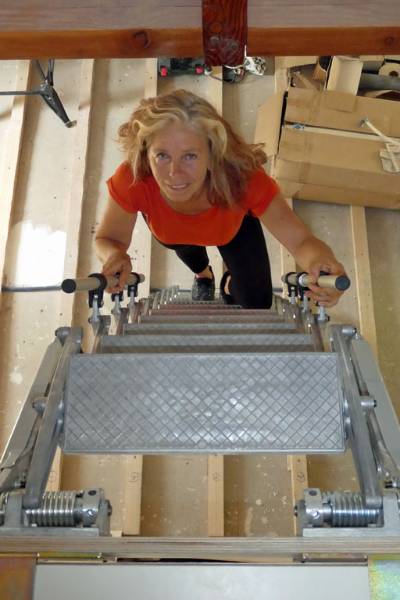

It is supplied with two heavy duty counter-balanced springs incorporated into pivot brackets. As a result, it can be raised and lowered with a minimum of effort. In addition, large steps and pre-assembled telescopic handrail offer comfort, safety and ease of egress.
Features and benefits:
Color | Silver |
Finish | Natural |
Material | Aluminium Manufacturer guidanceDie-cast |
Width | 610 mm Guidance for specification option: Standard width. Other widths available. See 'NBS Specification' for details. |
Height | 2500 mm 2790 mm 3090 mm 3390 mm Manufacturer guidanceMaximum heights. Minimum aperture sizes apply. |
Warranty description | Two year Guidance for specification option: Full manufacturer warranty. Ten year Guidance for specification option: Parts warranty. |
Uniclass | |
CAWS | L30/41 Loft ladders L30/421 Loft ladders |
Product range |
Standard | To EN 14975, TÜV SÜD Product Service GmbH. |
Format | Retractable. |
Finish | Natural aluminium. |

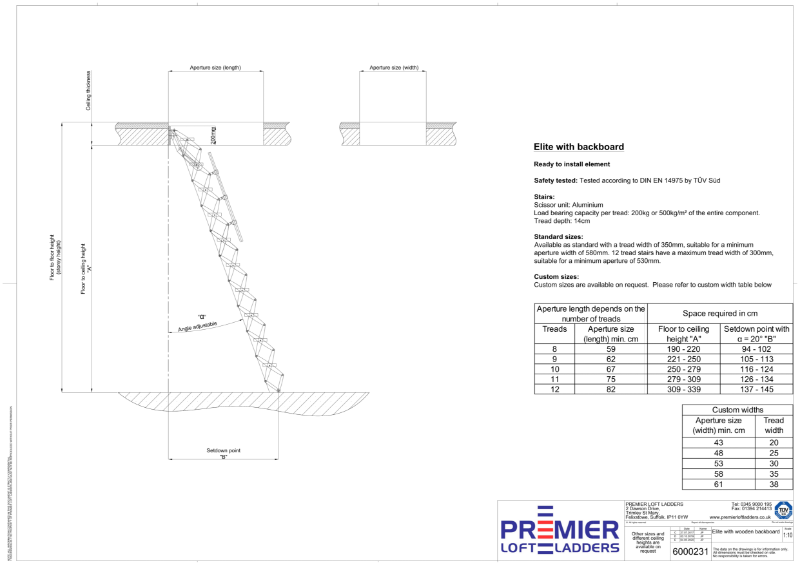

Treads | 8.Guidance for specification option: Up to 2200 mm in height, 750 mm minimum opening height. 9.Guidance for specification option: Up to 2500 mm in height, 780 mm minimum opening height. 10.Guidance for specification option: 2501–2790 mm in height, 830 mm minimum opening height. 11.Guidance for specification option: 2791–3090 mm in height, 910 mm minimum opening height. 12.Guidance for specification option: 3091–3390 mm in height, 980 mm minimum opening height. |
Loft trap door | |
Operating mechanism | Manual.Guidance for specification option: Gas strut hinge mechanism. |
Tread width | 200 mm. Guidance for specification option: 460 mm minimum opening width. Reach/set-back distance. Guidance for specification option: Requires a flat surface from fixing point to edge, i.e. no door threshold: 40 mm from edge of aperture. |
Accessories | None. Additional telescopic handrail (left and right). Guidance for specification option: Requires a ceiling opening length of 800 mm (minimum). Supplied with one handrail as standard. The additional telescopic handrail allows for a handrail on each side of the ladder. Top-operation. Guidance for specification option: Supplied with a eye-bolt and second operating pole to allow the Elite loft ladder to be opened and closed from above. Extended reach. Guidance for specification option: Insert requirement. Powder coat finish to aluminium ladder. Guidance for specification option: Any RAL code, insert requirement. |
LoadBearingCapacity | 200 kg. Guidance for specification option: Per tread. |
Operation | Supplied with two heavy duty counter balanced springs incorporated into pivot brackets to ensure that it can be raised and lowered with a minimum of effort; gas strut hinge mechanism allows the ladder to be stowed in a vertical position. |
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium Manufacturer guidanceDie-cast |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceWe hope to be able to publish this data from early 2025. |
Recyclability | 90% of all materials used in the product and packaging are recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceData is not currently available. |
Expected Life | 30 year Guidance for specification option: With correct installation and maintenance. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
