Emergency assistance/toilet alarm controller 4 way
Verified by manufacturer 4 months ago
Stainless steel powdered coat steel
Stainless steel powdered coat steel

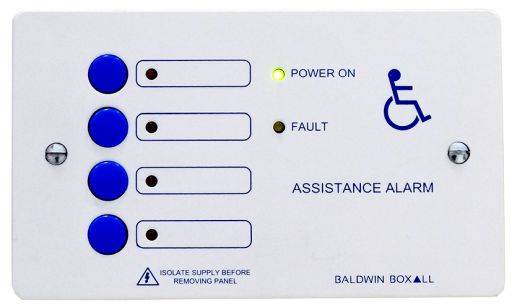

Emergency assistance/toilet alarm control panel for 4 toilet alarms. The object includes finish details and main product features.
Description
Emergency assistance/toilet alarm controller for up to 4 DTAKITs.
Up to 10 toilet alarm controller units can be daisy-chained using only one mains connection (3 A fused switched spur).
Features and benefits:
- Independent call accept/acknowledge button for each toilet alarm connected.
- Monitored system, with fault LED to indicate if a ‘short’ or ‘open’ condition is detected.
- The panel has a built-in mains supply and is simply installed via a fused spur (3 A switched) – connection to a separate power supply is not required.
- An LED on the panel confirms that the system is powered and available for use.
- Flush mounting unit requires standard electrical double gang back box.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Rectangle |
Width | 145 mm |
Height | 85 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass |
Specification data - Telephone enclosures
Dimensions | 3 x 145 x 85 mm.Guidance for specification option: (d x w x h). |
Material | Stainless steel. |
Colour | Grey. |
Finish: | Powder coated. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
Literature
DTA4 toilet alarm controller
