Verified by manufacturer 4 months ago
Stainless steel

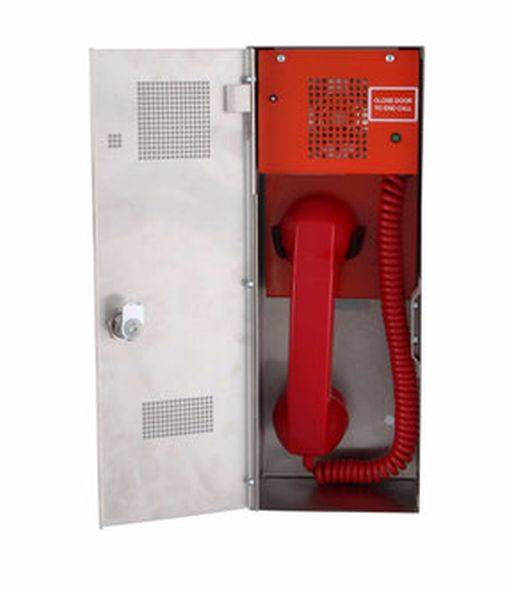

Fire telephone outstation for the OmniCare system. The object includes finish details and main product features.
Suitable for surface or flush mounting.
Fire telephone outstation for the OmniCare System. The unit is powered by the line which is a 4-core loop circuit from the control panel. Up to 200m distance is permitted between items on the loop (for longer distances the addition of repeater units (BVOCRIF) will be required.
The unit can be fitted to the same loop circuit along with any combination of remote units included in the OmniCare range.
Features and benefits:
Color | Red |
Finish | Powder-coated |
Material | Metal |
Shape | Rectangle |
Width | 130 mm |
Height | 350 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | N10/250 Telephone booths |
Dimensions | 100 x 130 x 350 mm. |
Material | Stainless steel grade 304. |
Colour | Grey. |
Standard | To BS 5839-9. |
Finish: | Stainless steel. |
Sheen | Not applicable. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Platform | Compatible | Version |
---|---|---|
- | 1 |
