EVR-2 - Artificial Grass System

Verified by manufacturer 2 months ago

Evergreens UK Group

Four part artificial grass system.

Jump to:
BOS
 +44 (0)1572 768208 Website

Application

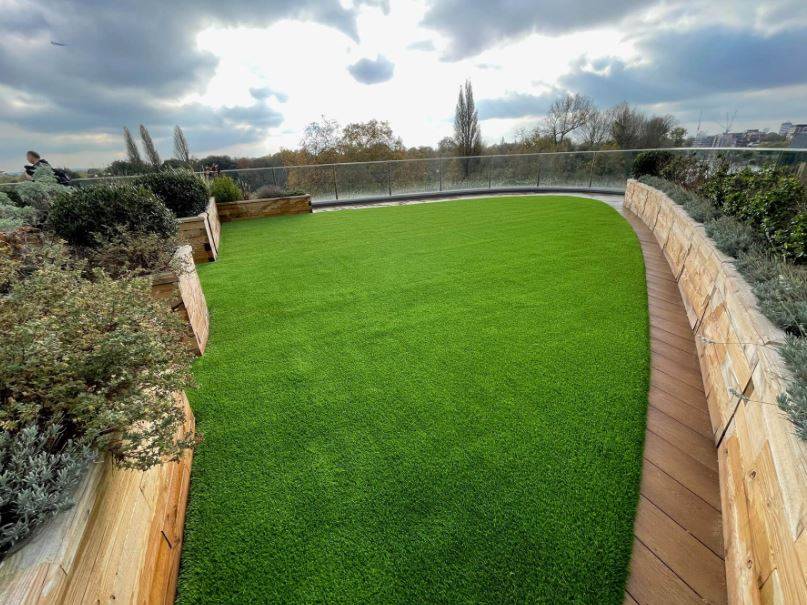

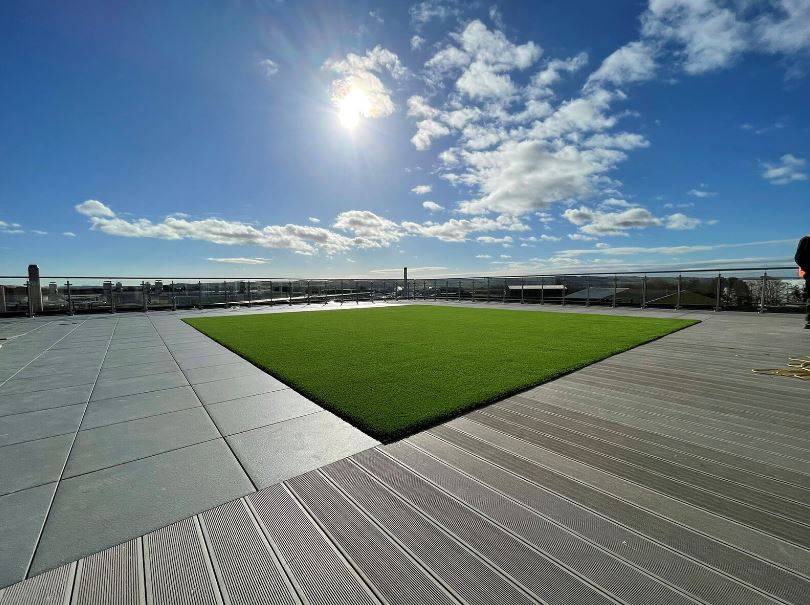

EVR 2 is used where the roof requires additional build-up for level transitions and level floor finishes. This system is suited for both straight and especially curved designs.

Description

The EVR2 system consists of the Wonder Yarn 36 mm artificial grass, 30 mm Forcefield Foam, EverGrate™ 38 mm Resin Moulded GRP Panel and Buzon Pedestals. The EVR 2 system has a weight of approximately 40 kg/m². It is Broof(t4) tested.


Features and benefits:

  • Environmentally friendly, free of lead and cadmium.
  • Standard 25 m roll length with larger roll lengths available on request.
  • This system provides vertical drainage and allows adjustment of the deck to desired levels.
  • Fire tested to Broof(t4).
  • Wind speed tested up to 100 mph.
  • Critical fall height tested to 1.5m.

General information

Color

Green

Finish

Tufted

Material

Polyethene

Guidance for specification option:

Artificial grass.

Aggregate

Guidance for specification option:

Stone/ pebbles.

Polyethylene

Guidance for specification option:

30 mm Forcefield FR Foam.

Glass Reinforced Plastic (GRP)

Guidance for specification option:

EverGrate™ 38 mm Resin Moulded GRP Panel.

Aluminium

Guidance for specification option:

Buzon Pedestal A-PED.

Show more

Length

25000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

3660 mm

Guidance for specification option:

EverGrate™ 38 mm Resin Moulded GRP Panel.

1600 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

Bespoke

Width

2000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

4000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

1200 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

1220 mm

Guidance for specification option:

EverGrate™ 38 mm Resin Moulded GRP Panel.

Bespoke

Height

36 mm

Guidance for specification option:

Wonder Yarn 36 mm.

30 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

38 mm

Guidance for specification option:

EverGrate™ 38 mm Resin Moulded GRP Panel.

Bespoke

Guidance for specification option:

  • Buzon Pedestal A-PED: 24–395 mm.
  • Buzon Pedestal DPH: 17–1070 mm.

Warranty description

Six year

Uniclass

Ss_30_14_50_80 Synthetic grass surfacing systemsPrimary

CAWS

Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfacing systems

System manufacturer

Evergreens UK Group.

Pedestals

Buzon pedestal A-PED.

Guidance for specification option:

  • Type: A-PED head – Aluminium, TH15 – Zinc Alloy and Locking Nut – Steel with exterior coating.
  • Head: Ø 90 mm.
  • Base: Ø 90–170 mm.
  • Height adjustment: 24–395 mm.
  • Weight: 0.245–0.83 kg.
  • Fire rating: Class A1 – BS EN 13501-1.
  • Colour: Silver.

Buzon pedestal DPH.

Guidance for specification option:

  • Type: Copolymer Polypropylene (CPP).
  • Head: Ø 145–155 mm.
  • Base: Ø 170–200 mm.
  • Height adjustment: 17–1070 mm.
  • Weight: 0.094–2.567 kg.
  • Colour: Black.

Shock absorption

30 mm Forcefield FR Foam.

Guidance for specification option:

  • Material: Closed-cell, crosslinked polyethylene foam.
  • Primary backing: PET-fabric.
  • Density: 30 kg/m³.
  • Width: 1200 mm -0/+20.
  • Length: 1600 mm -0/+40.
  • Height: 30 mm.
  • Water permeability: 20000 mm/h - 1.
  • Compression stress: 32 kPa ISO 3386/1 (at 25% deflection); 84 kPa ISO 3386/1 (at 50% deflection).
  • Colour: White.

Wearing surface

-

Fibres

Wonder Yarn 36 mm.

Guidance for specification option:

  • Primary backing: 100% PP black with fleece, U.V. stabilized, weight 172 g/m².
  • Secondary backing: Black latex compound with a base of Styrene butadiene (SBR) with drainage hole, weight 836 g/m².
  • Water-permeability: 60 litre/min/m².
  • Pile height: 36 mm ±10%.
  • Face weight: 1750 g/m² ±10%.
  • Total weight: 2758 g/m² ±100 g/m².
  • Tuft gauge: 3/8-gauge.
  • Stitches per 10 cm linear: 15 ±1.
  • Stitches per m²: 15 750 ±10%.
  • Colour: Mix of light and dark green + caramel thatch.
  • UV stability: Meets DIN 53387 standard.
  • Colour fastness: Xenon Test: Blue Scale > 7 Grey Scale > 4.

Anchorage

-

Fill material

EverRoof system sand infill.

Guidance for specification option:

10 kg/m².

Perimeter

Hidden Margin - Under Transition.

Hidden Margin.

Pebble Margin.

Resin Margin.

Manufacturer guidance

A 250 mm aggregate margin is required using 30–50 mm Scottish pebbles (minimum of 20 kg/linear meter). This can be incorporated as a visual margin to all sides or alternatively be installed as a hidden margin detail. Refer to the manufacturer's literature for details.

Type

8000 / 8 dTex PE Monofilament straight.

5000 / 8 dTex PE Monofilament curled (UV Stabilized).

Manufacturer guidance

Wonder Yarn 36 mm yarn type.

Roll length

25 000 mm.

Bespoke.

Manufacturer guidance

Wonder Yarn 36 mm. Standard 25 000 mm. Larger roll lengths available on request.

Roll width

2000 mm.

4000 mm.

Manufacturer guidance

Wonder Yarn 36 mm.

Panel Type

EverGrate™ 38 mm resin moulded GRP panel.

Guidance for specification option:

  • Type: Isophthalic or General Polyester resin moulded GRP grating panel.
  • Width: 1220 mm.
  • Length: 3660 mm.
  • Thickness: 38 mm.
  • Weight: 19.8 kg/m² = 88.41 kg per panel .
  • Permeability: Fully permeable with 38 mm bar centres.
  • Finish: Gritted.
  • Colour: Dark grey.
  • Quality assurance: ISO 9001:20155.

Sustainability data

Material

Polyethene

Guidance for specification option:

Artificial grass.

Aggregate

Guidance for specification option:

Stone/ pebbles.

Polyethylene

Guidance for specification option:

30 mm Forcefield FR Foam.

Glass Reinforced Plastic (GRP)

Guidance for specification option:

EverGrate™ 38 mm Resin Moulded GRP Panel.

Aluminium

Guidance for specification option:

Buzon Pedestal A-PED.

Show more
