EVR-3 - Artificial Grass System

Verified by manufacturer 2 months ago

Evergreens UK Group

Four part artificial grass system.

Jump to:
BOS
 +44 (0)1572 768208 Website

Application

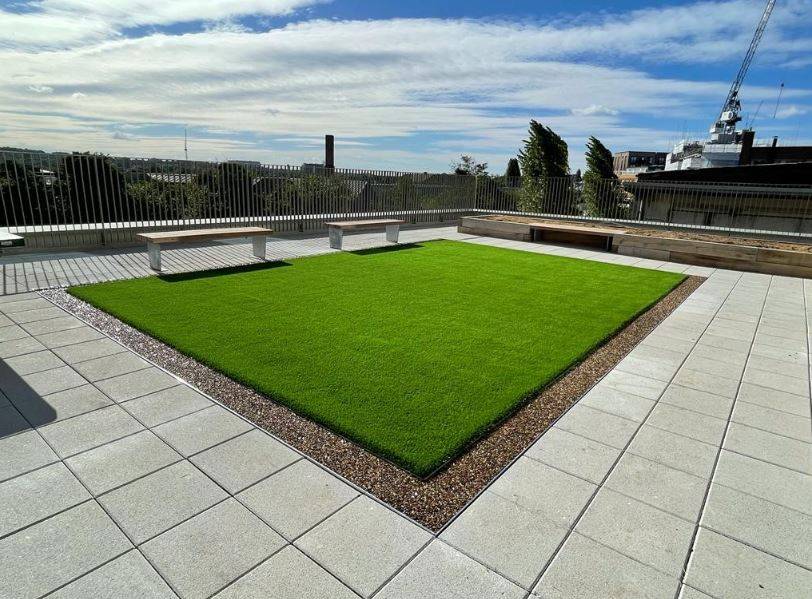

EVR 3 is used where the roof requires additional build-up for level transitions and level floor finishes. This system is suited for straight and angular designed spaces and is particularly suitable for inverted roofs, as paving acts as ballast to help secure insulation against wind uplift.

Description

The EVR3 system consists of the Wonder Yarn 36mm artificial grass, 30mm Forcefield foam, 600 x 600 x 50 mm concrete pavers and Buzon pedestals. The EVR 3 system has a weight of approximately 120 kg/m².


Features and benefits:

  • Environmentally friendly, free of lead and cadmium.
  • Standard 25 m roll length with larger roll lengths available on request.
  • Good vertical drainage and additionally allows adjustment of the deck to desired levels.
  • Fire tested to Broof(t4).
  • Wind speed tested up to 100 mph.
  • Critical fall height tested to 1.5m.

General information

Color

Green

Finish

Tufted

Material

Polyethene

Guidance for specification option:

Artificial grass.

Aggregate

Guidance for specification option:

Stone/ pebbles.

Polyethylene

Guidance for specification option:

30 mm Forcefield FR Foam.

Concrete

Guidance for specification option:

50 mm Concrete Paver.

Aluminium

Guidance for specification option:

Buzon Pedestal A-PED.

Show more

Length

25000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

1600 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

600 mm

Guidance for specification option:

50 mm Concrete Paver.

Bespoke

Width

2000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

4000 mm

Guidance for specification option:

Wonder Yarn 36 mm.

1200 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

600 mm

Guidance for specification option:

50 mm Concrete Paver.

Bespoke

Height

36 mm

Guidance for specification option:

Wonder Yarn 36 mm.

50 mm

Guidance for specification option:

50 mm Concrete Paver.

30 mm

Guidance for specification option:

30 mm Forcefield FR Foam.

Bespoke

Guidance for specification option:

  • Buzon Pedestal A-PED: 24–395 mm.
  • Buzon Pedestal DPH: 17–1070 mm.

Uniclass

Ss_30_14_50_80 Synthetic grass surfacing systemsPrimary

CAWS

Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfacing systems

System manufacturer

Evergreens UK Group.

Pedestals

Buzon pedestal A-PED.

Guidance for specification option:

  • Type: A-PED head – Aluminium, TH15 – Zinc Alloy and Locking Nut – Steel with exterior coating.
  • Head: Ø 90 mm.
  • Base: Ø 90–170 mm.
  • Height adjustment: 24–395 mm.
  • Weight: 0.245–0.83 kg.
  • Fire rating: Class A1 – BS EN 13501-1.
  • Colour: Silver.

Buzon pedestal DPH.

Guidance for specification option:

  • Type: Copolymer Polypropylene (CPP).
  • Head: Ø 145–155 mm.
  • Base: Ø 170–200 mm.
  • Height adjustment: 17–1070 mm.
  • Weight: 0.094–2.567 kg.
  • Colour: Black.

Shock absorption

30 mm Forcefield FR Foam.

Guidance for specification option:

  • Material: Closed-cell, crosslinked polyethylene foam.
  • Primary backing: PET-fabric.
  • Density: 30 kg/m³.
  • Width: 1200 mm -0/+20.
  • Length: 1600 mm -0/+40.
  • Height: 30 mm.
  • Water permeability: 20000 mm/h - 1.
  • Compression stress: 32 kPa ISO 3386/1 (at 25% deflection); 84 kPa ISO 3386/1 (at 50% deflection).
  • Colour: White.

Wearing surface

-

Fibres

Wonder Yarn 36 mm.

Guidance for specification option:

  • Primary backing: 100% PP black with fleece, U.V. stabilized, weight 172 g/m².
  • Secondary backing: Black latex compound with a base of Styrene butadiene (SBR) with drainage hole, weight 836 g/m².
  • Water-permeability: 60 litre/min/m².
  • Pile height: 36 mm ±10%.
  • Face weight: 1750 g/m² ±10%.
  • Total weight: 2758 g/m² ±100 g/m².
  • Tuft gauge: 3/8-gauge.
  • Stitches per 10 cm linear: 15 ±1.
  • Stitches per m²: 15 750 ±10%.
  • Colour: Mix of light and dark green + caramel thatch.
  • UV stability: Meets DIN 53387 standard.
  • Colour fastness: Xenon Test: Blue Scale > 7 Grey Scale > 4.

Anchorage

-

Fill material

EverRoof system sand infill.

Guidance for specification option:

10 kg/m².

Perimeter

Hidden Margin - Under Transition.

Hidden Margin.

Pebble Margin.

Resin Margin.

Type

8000 / 8 dTex PE Monofilament straight.

5000 / 8 dTex PE Monofilament curled (UV Stabilized).

Manufacturer guidance

Wonder Yarn 36 mm yarn type.

Roll length

25 000 mm.

Bespoke.

Manufacturer guidance

Wonder Yarn 36 mm. Standard 25 000 mm. Larger roll lengths available on request.

Roll width

2000 mm.

4000 mm.

Manufacturer guidance

Wonder Yarn 36 mm.

Paver type

50 mm concrete paver.

Guidance for specification option:

  • Width: 600 mm.
  • Length: 600 mm.
  • Thickness: 50 mm.
  • Weight: 120 kg/m².
  • Colour: Natural.

Sustainability data

Material

Polyethene

Guidance for specification option:

Artificial grass.

Aggregate

Guidance for specification option:

Stone/ pebbles.

Polyethylene

Guidance for specification option:

30 mm Forcefield FR Foam.

Concrete

Guidance for specification option:

50 mm Concrete Paver.

Aluminium

Guidance for specification option:

Buzon Pedestal A-PED.

Show more
