EXOS. Accessible Washbasins

Verified by manufacturer over a year ago

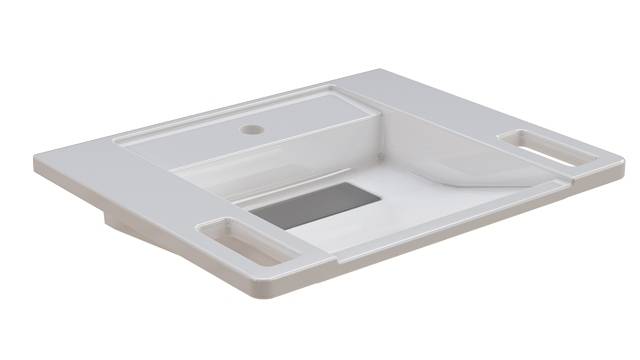

(ANMW0001) 203.0000.000 Wheelchair Accessible Washbasin with Integrated Grab Rails

KWC DVS Limited Variant:

Multiple washbasins constructed from MIRANIT resin-bonded mineral material.

Jump to:
+44 (0)1246 458900 Website

Application

Medical environment, with wheelchair accessibility as an option.

Description

Multiple washbasins constructed from MIRANIT resin-bonded mineral material


Features and benefits:

  • With pore-free, smooth gelcoat high-polished surface (temperature-resistant up to 80°C)
  • storage surfaces and integral back panel with integrated brackets for wall mounting.
  • The unit has up to five seamless moulded bowls, no overflow and lowered tap ledge with tap hole.
  • Variable gaps between bowls, available with or without apron or gel-coated edges. Individual washbasin length up to 3600 mm, with or without splashback.
  • Mounting material, DN 32 strainer waste and anti-theft device for waste cover with InoxPlus coating included.

General information

Color

White

Finish

Gelcoat

Material

Resin-bonded mineral

Shape

Rectangle

Length

340 mm

Width

380 mm

500 mm

Height

90 mm

Uniclass

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/335 Washbasins

Product range

Washbasins

Specification data - Wall-hung washbasins

Form

Wall hung wash basin.

Materials

-

Body

MIRANIT resin-bonded mineral.

Finish and colour

Alpine white.

Guidance for specification option:

Pore-free, smooth gelcoat high-polished surface.

Size

380 x 90 x 340 mm.

Water supply, overflow and waste holes

-

Water supply

One tap hole.

Overflow

None.

Waste

DN 32 strainer waste.

Integral accessories

Not required.

Intergrated mounting brackets.

Splashback.

Guidance for specification option:

Insert requirement, available 10–100 mm.

Execution

Integral back panel with integrated brackets for wall mounting.

Product Reference

(ANMW0001) 203.0000.000

(ANMW0002) 203.0000.001

(ANMW0010) 203.0000.003

(ANMW0011) 203.0000.004

Basin length

Manufacturer's standard.

Guidance for specification option:

Insert requirement, available 600–3600 mm.

Edge finish

Not required.

Guidance for specification option:

Insert apron requirements.

Gelcoat-edges.

Spacing

Manufacturer's standard.

Guidance for specification option:

Insert requirement, 600 mm minimum (380 mm bowl), 700 mm minimum (500 mm bowl).

Wheelchair access

Integrated grab rails.

Height

Manufacturer's standard.

Guidance for specification option:

Insert requirement, available up to 150 mm.
