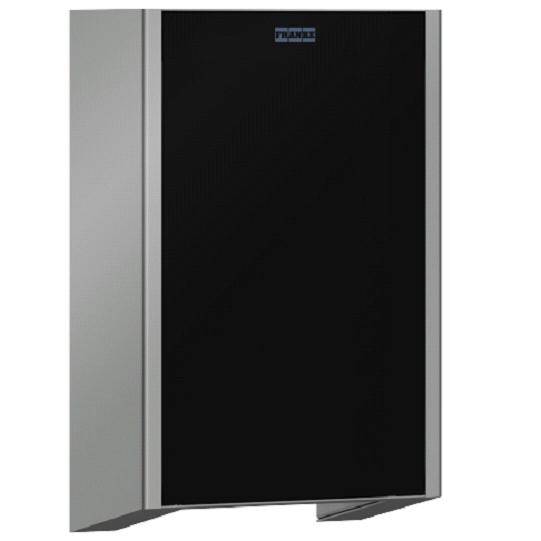

EXOS. Hand Dryer
Verified by manufacturer over a year ago
(EXOS220W) 201.0479.677
(EXOS220W) 201.0479.677
Stainless steel, wall mounted, hand dryer.
Application
Wall mounting design.
Description
Stainless steel, wall mounted, hand dryer.
Features and benefits:
- 1.2 mm stainless steel with satin finish.
- InoxPlus surface refinement - InoxPlus-coated main housing.
- Material thickness 1.2 mm.
- Contactless opto-electronic sensor for touch-free operation,
- Adjustable hot air temperature.
- Sensor range adjustable from 10–250 mm.
- Protection from continuous operation with automatic switch-off after 60 seconds.
- Air speed adjustable.
- Cable and plug not included.
- Front cover available in different versions.
General information
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 325 mm |
Width | 200 mm |
Height | 120 mm Manufacturer guidanceProjection. |
Uniclass | |
CAWS | N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Operation | Automatic. |
Electrical supply | |
Rated operational voltage (Ue) | 230 V a.c. |
Frequency | 50–60 Hz. |
Body | |
Material | Stainless steel. |
Finish | Satin. |
Dimensions | 200 x 325 x 120 mm. |
Product Reference | (EXOS220B) 201.0479.676 Guidance for specification option: InoxPlus-coated main housing, black toughened safety glass front panel. (EXOS220W) 201.0479.677 Guidance for specification option: InoxPlus-coated main housing, white toughened safety glass front panel. (EXOS220X) 201.0479.675 Guidance for specification option: InoxPlus-coated main housing and front panel. |
Accessories | None. (ZEXOS220) 201.0479.679. Guidance for specification option: Interchangeable front panel for EXOS hand dryer, InoxPlus-coated front panel. (ZEXOS220B) 201.0479.680. Guidance for specification option: Interchangeable front panel for EXOS hand dryer, black toughened safety glass front panel. (ZEXOS220W) 201.0479.682. Guidance for specification option: Interchangeable front panel for EXOS hand dryer, white toughened safety glass front panel. |
Motor | 500 W Air. |
TotalWattage | 1000 W. |
Volume | 80 m³/h. |
Heater | 500 W. |
CenterlineAirVelocity | 95-115 m/s. |
Front panel | White. |
