Expanded Metal Ceilings

Verified by manufacturer 4 months ago

LMD-St 213 BWS - Accentuated joints, ball-impact resistant

Lindner Group Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • EPD

    EPD

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

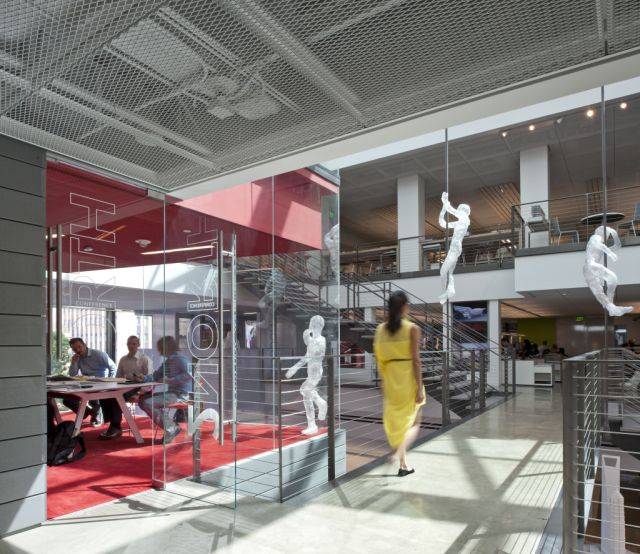

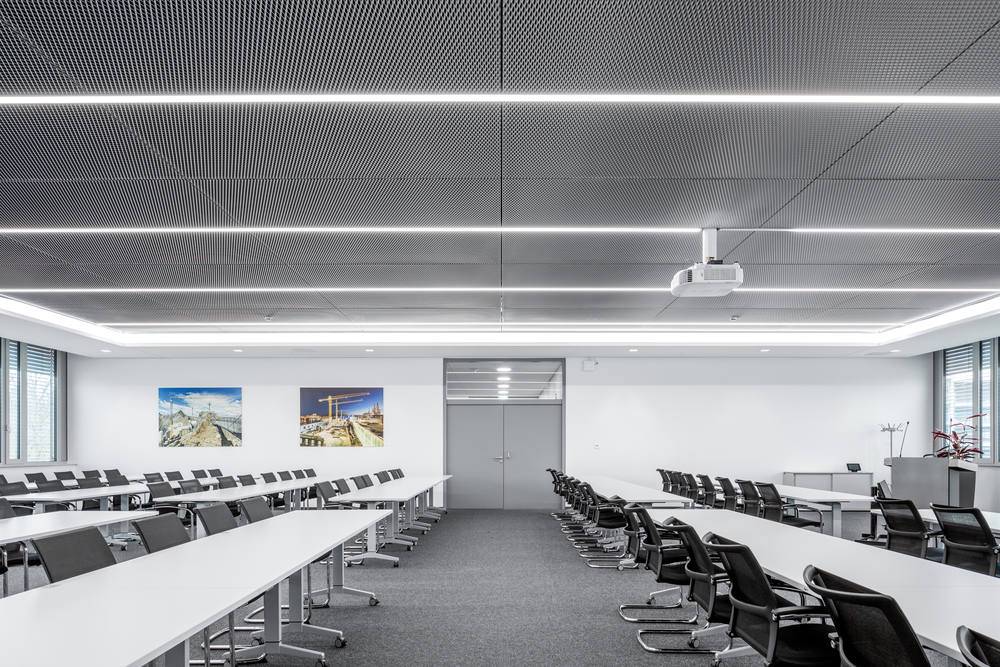

A range of hook-on expanded metal ceilings.

Jump to:
BOS
020 8246 6333 Website

Application

  • Recreation and culture.
  • Workplace.
  • Transport.
  • Public institutions.
  • Education.
  • Public areas.
  • Hotels and gastronomy.

Description

A range of hook-on expanded metal ceilings with powder coated visible surface, hook-on and/ or swing-down and slide types, supported by a concealed suspension system. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.


Features and benefits:

  • Available in six styles including ball-impact resistant, corridor and heated/ chilled ceilings.
  • The products have a specific EPD according to the valid standards (EN 15804/ ISO 14025).

General information

Color

Other

Finish

Powder-coated

Guidance for specification option:

Electrostatically applied.

Material

Steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Product range

Ceilings

Specification data - Modular suspended ceiling systems

System performance

Fire performance to BS EN 13501, A2-s1, d0.

Ceiling support

Metal suspended ceiling hangers.

Ceiling units

Expanded metal infill units.

System accessories

None.

LMD-RK 20 – Inspection hatch expanded metal.

Standard

To EN 13964.

Third-party certification

TAIM e.V.

Acoustic infills

Not required.

Acustica – Acoustic fabric inlay.

Colour

9006 acc. to Lindner.

Guidance for specification option:

Manufacturer's standard.

RAL.

Guidance for specification option:

Insert requirements.

NCS.

Guidance for specification option:

Insert requirements.

Durability

To DIN EN 13964, exposure class A.

Fire resistance

To EN 13501-2, 30 minutes.

Joint width

20 mm.

25 mm.

30 mm.

Luminaires

Not required.

SHL 298 – Recessed/Surface-Mounted Luminaire for sports halls.

SYS 298 – Recessed/Surface-Mounted Luminaire for sports halls.

Mesh

MESHdesign.

Panel size

Guidance for specification option:

Length: 2503000 mm, width: 20012500 mm. Consult manufacturer's literature and insert requirements.

Powder coating

COLOURline.

MOODline.

Sound absorption

-

Manufacturer guidance

Dependent on level of perforation and acoustic inlay. Consult manufacturer.

Type

LMD-St 213 BWS Type 3, Hook-On, expanded metal turned up.

LMD-St 213 BWS Type 4, Hook-On, expanded metal bordered.

LMD-St 213 BWS Type 5, Hook-On/Swing-Down, expanded metal bordered.

LMD-St 213 BWS Type 6, Hook-On/Swing-Down, expanded metal turned up.

LMD-St 213 BWS Type 7, Hook-On/Swing-Down, expanded metal bordered with opposite angle.

Wall connection

Open.

U-profile.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Steel

Manufacturing plant location

Recyclability

yes

Expected Life

50 year
