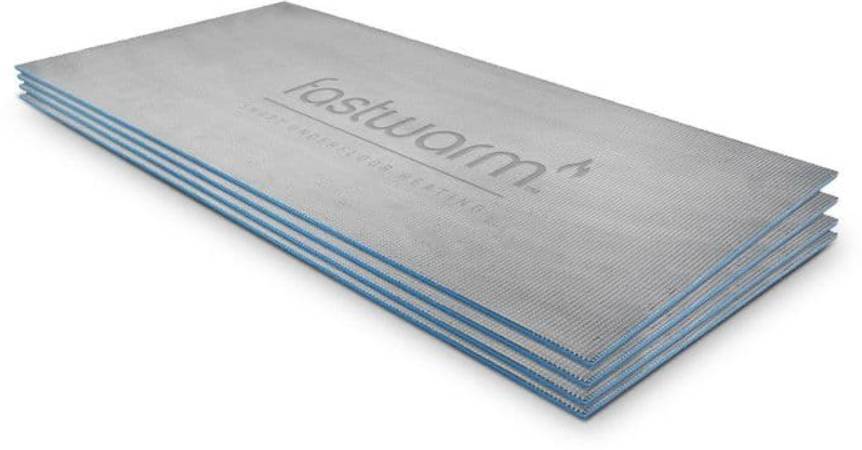

Fastwarm® Tile Backer Insulation Boards

Verified by manufacturer 5 days ago

Fastwarm Underfloor Heating

Ultra-light weight XPS insulation boards designed for use when installing electric underfloor heating on to a concrete, screed or wooden subfloor. Also suitable for use on walls in wet areas.

Jump to:
+44 (0)1268 744479 Website

Application

  • Suitable for use on walls and floors (correct installation method must be followed - please check).
  • Suitable for wet rooms and replacing plasterboard in bathrooms.
  • Suitable choice for use when installing electric underfloor heating on to a concrete, screed or wooden subfloor.

Description

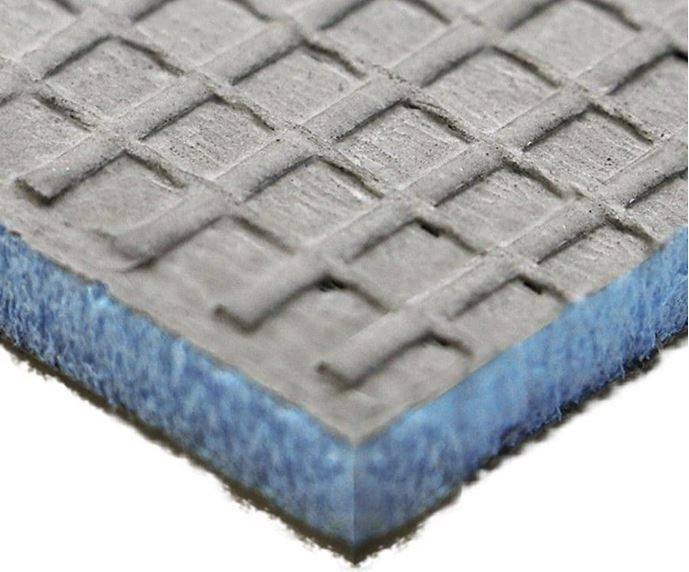

Fastwarm tile backer boards are built with high thermal performance. Made from high-density extruded polystyrene with reinforced coatings, they’re suitable for Fastwarm Sticky Mats, FastGrid, and Loose Cables.


The ultra-light weight backer board can be easily cut to size or to work around fixed appliances using a craft knife and are suitable for transporting on site due to their lightweight but strong structure.


Tile backer boards can be mechanically fixed to timber subfloors using screws and washers and / or fixed to solid subfloors using a flexible tile adhesive. The boards are moisture resistant and will reduce movement within the subfloor, making tiling on top of the system very simple.


Tile backer boards have been engineered to withstand compression values of up to 30 tonnes per m², whilst being extremely lightweight, highly efficient and competitively priced - making this durable thermal insulation a suitable choice for use when installing electric underfloor heating on to a concrete, screed or wooden subfloor.


Features and benefits:

  • Waterproof.
  • Approved by Instarmac (Ultra Tile adhesive manufacturer)
  • Super high insulation values per m².
  • Excellent sound insulation.
  • Cuts with a utility knife.
  • Thermal conductivity value of 0.027 W/mK.
  • Suitable choice for use as a thermal barrier with underfloor heating systems.

General information

Color

Grey

Blue

Finish

Cement

Guidance for specification option:

Cementitious coating.

Material

Extruded polystyrene (XPS)

Fiber-glass

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

Warranty description

Lifetime

Uniclass

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

M40/110 Tiling to

M40/5 Tiling to

M40/470 Intermediate substrate

M40/27 Intermediate substrate

Specification data - Extruded polystyrene (XPS) boards

Fire performance

Euroclass E.

Compressive strength (minimum) at 10% compression

30 t/m².

Manufacturer guidance

To DIN 52612.

Thermal conductivity (maximum)

0.027 W/mk.

Water permeability

To DIN 1048, 1000 @ 10 bar.

Manufacturer guidance

Tested at 10 bar (X mm of cement).

Thickness

6 mm.

10 mm.

12.5 mm.

20 mm.

30 mm.

50 mm.

Face size (length x width)

1200 x 600 mm.

Facing

Cementitious.

Edges

Square.

Reinforcement

Fibreglass mesh.

Tensile strength

To DIN 52612, 0.027.

Bending strength

350 kPa.

Material density

>30 kg/m³.

Water absorption

To ISO 2896, <0.1 vol %.

Load

Vertical tile weight load: 50 kg/m².

Sustainability data

Country of product manufacture

Europe

Material

Extruded polystyrene (XPS)

Fiber-glass
