FCFcl Plus 120
FCFcl Plus 120
Designed to protect the building void between the inner and outer construction elements.
Application
- Floor and wall joints.

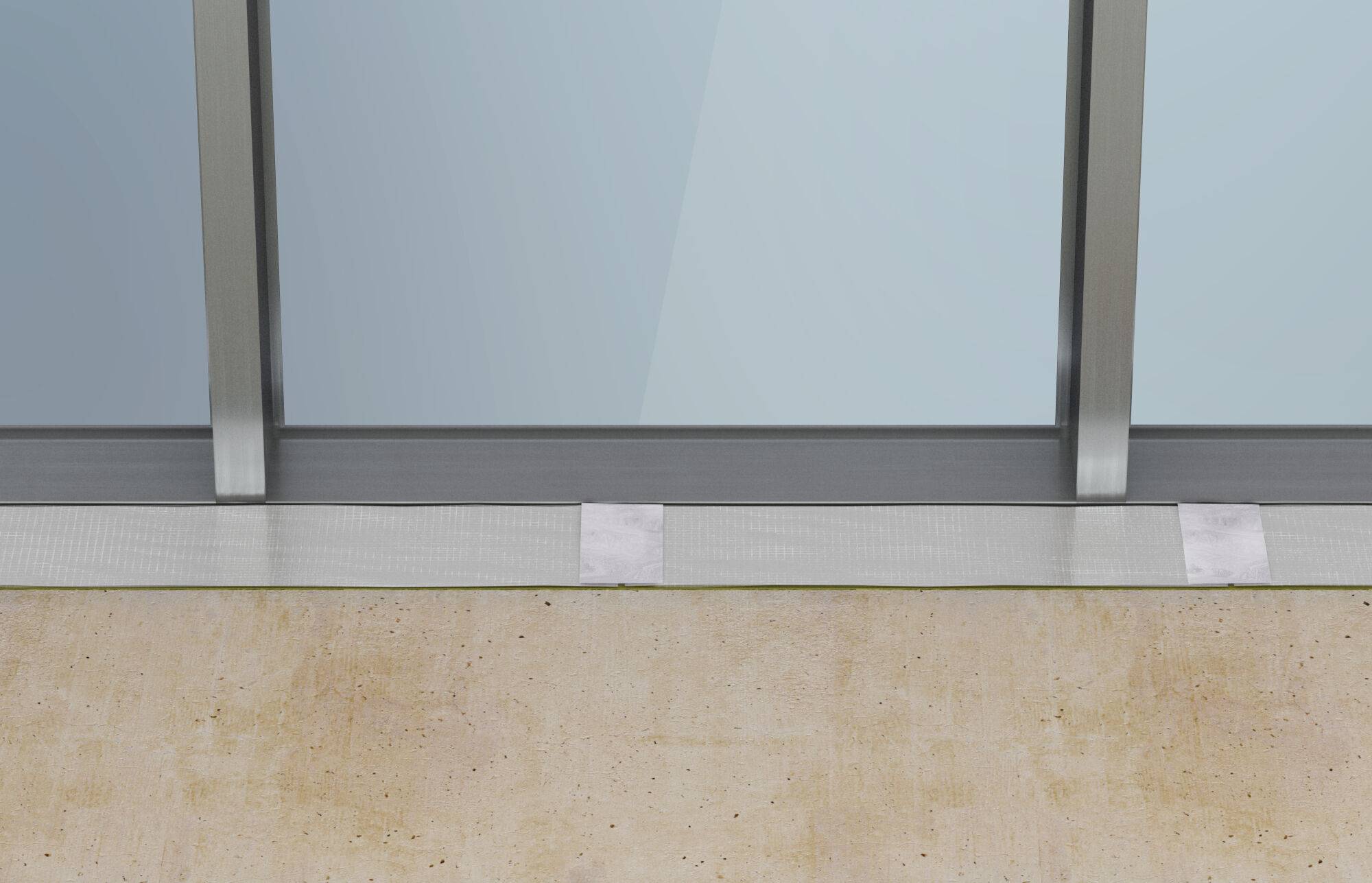

- Curtain wall perimeter joints.
- Horizontal and vertical cavity barrier applications for rainscreen and brickwork facade.
Building materials:
- Concrete slabs.
- Curtain wall assemblies.
- Aerated concrete.
- Blockwork masonry.
- Flexible wall assemblies.
Description
Designed to protect the building void between the inner and outer construction elements. Rainscreens, curtain walls and brickwork facades.

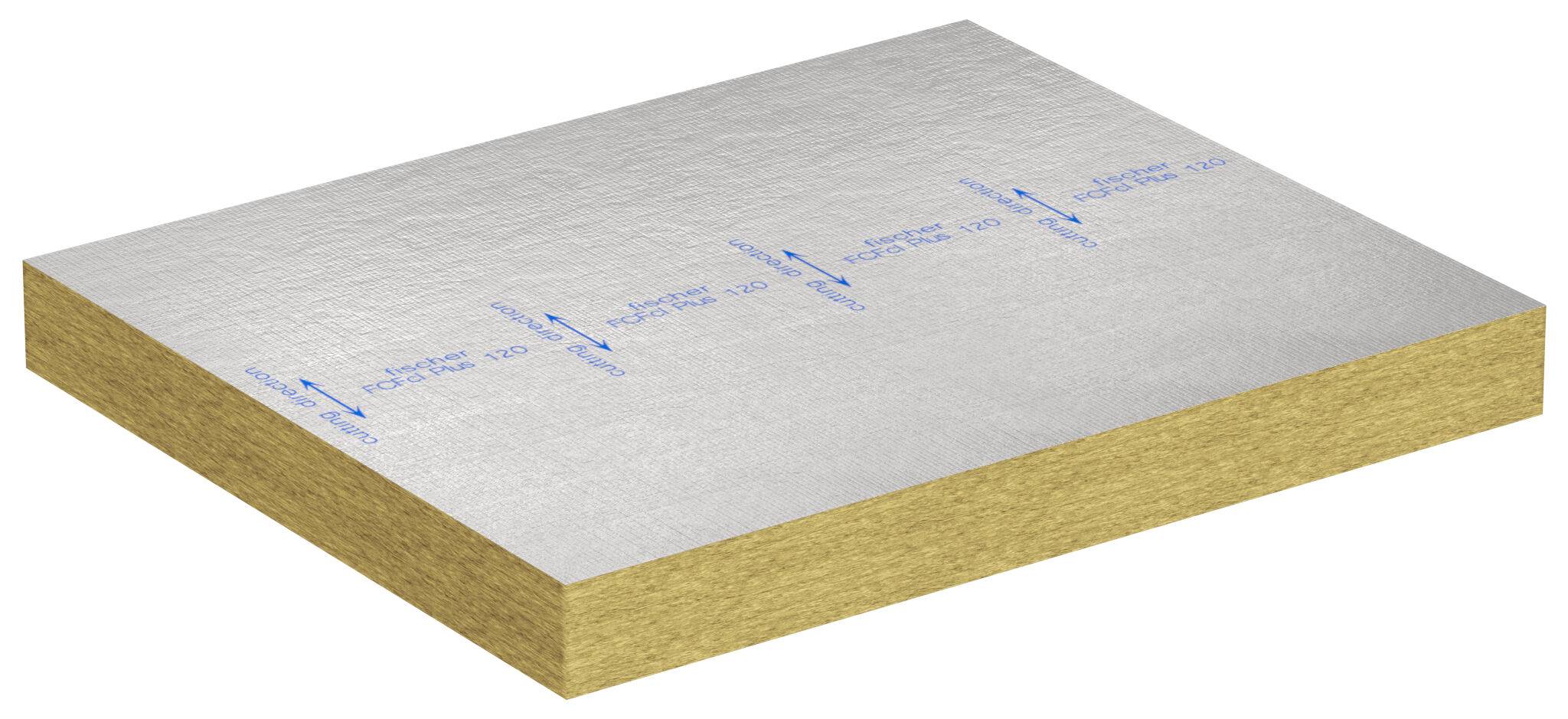

Comprised of a one piece, closed dimension stone wool core. The product is encased with an aluminum foil face which provides excellent resistance to smoke. The FCFcl Cavity Clad Plus provides a resilient lateral compression when it is required to ensure a tight fit for curtain wall applications.
It can be used for vertical and horizontal linear joint, rainscreen and brickwork façade applications without compression.
Features and benefits:
- Tested to cyclic movement conditions.
- FCFcl Plus is easy to compress.
- No compression needed for certain applications.
- Tested on both rigid and flexible structures.
- Can be used for cavities up to 450mm.
- Tested to EN 1366-4, EOTA TR031 and EN 1364-4
- Classified to EN 13501-1 and EN 13501-2
- Acoustic insulation without brackets.
- Easy installation up to 150 mm joint because brackets are not required.
- Can be effortlessly fixed with DHM insulation fixings.
- Can be used at concrete slab edges where masonry support brackets are fixed.
General information
Color | Silver Yellow |
Finish | Foil |
Material | Stone wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 1200 mm |
Height | 120 mm 100 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | P10/420 Sleeved mineral wool small cavity barriers P10/435 Ventilated cavity barriers P10/70 Sleeved small cavity barriers P10/77 Ventilated cavity barriers |
SKU Code | 570917 |
Specification data - Mineral wool fire-stopping
Classification data | |
Material | |

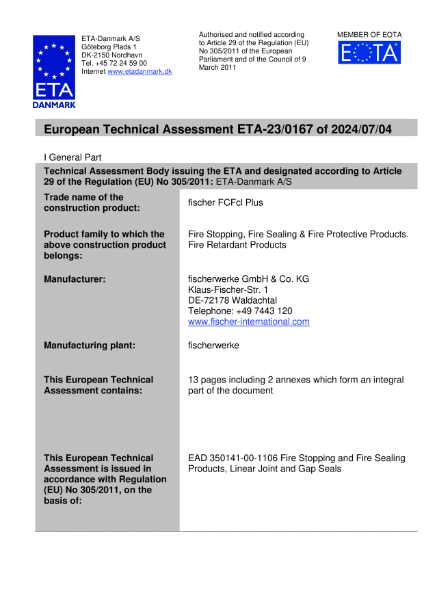

Third-party certification | European Technical Assessment ETA-23/0167. |
Type | Structural stone wool composite. Guidance for specification option: Yellow. |
Density | 70 kg/m³. |
Facing | Foil. Guidance for specification option: Silver. |
Fire performance | Fire resistance up to E 240 and EI 180. |
Sound insulation rating | Acoustic performance: 27 dB. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Accessories | None. Aluminium foil tape. Guidance for specification option: 558505. 45 m roll of 100 mm-wide aluminium foil tape. |
Attachment | Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceFixing points: 300 mm. |
Thickness | 120 mm. |
Thermal Conductivity: | 0.35 W/m·K. |
Sustainability data
Material | Stone wool |
