Finish Facacdes Viso - Flat Panel Rainscreen System
Verified by manufacturer 1 day ago
Flat panel aluminium rainscreen system.
Application
Suitable for all building types.
Description
Viso is a flat panel rainscreen system, manufactured in-house from quality 3 mm aluminium. The Viso system is rivet fixed to an aluminium support frame during installation for a durable, CWCT tested cladding system.
Features and benefits:
- Prevents moisture penetration and build up in external walls.
- Increases the thermal capabilities of a building.
- Achieve a professional and fully compliant rainscreen without increased costs.
- Prioritises performance.
- Manufactured in panel sizes of 3800 x 1200 mm as standard.
- Bespoke sizes can be manufactured upon request.
- Fully compliant with the latest industry regulations.
- CWCT tested and EN 13501-1 certified. Viso flat panel systems achieve an A1 and A2-s1, d0 fire rating - making them non-combustible in the event of a fire.
General information
Color | Other |
Material | Aluminium |
Shape | Rectangle Hexagon Other Diamond Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
System manufacturer | Finish Facades Ltd. |
Thermal insulation | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Secondary support structure | Aluminium carrier rails. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Vertical | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Cladding panels | |
Material | Viso flat panel, 3 mm aluminium. |
Panel joints | Sealed joints. |
Reveals | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
System accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Fire performance | CWCT tested and EN 13501-1 certified. |
Sustainability data
Material | Aluminium |
Case studies

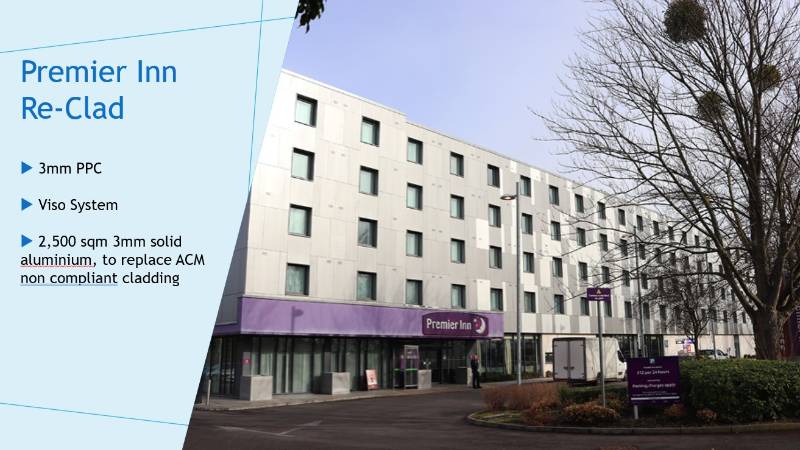

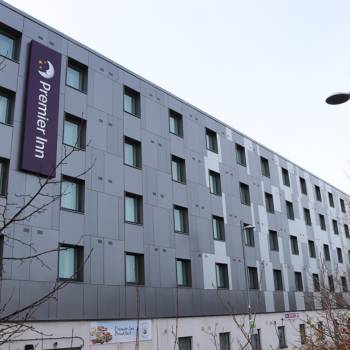

Viso Rainscreen System - Premier Inn Re-Clad
