Fire Rated Access Panel [FIREPAN 60-120] - Custom sizes - Access Panel
Verified by manufacturer 4 months ago
Ceiling Use
Ceiling Use

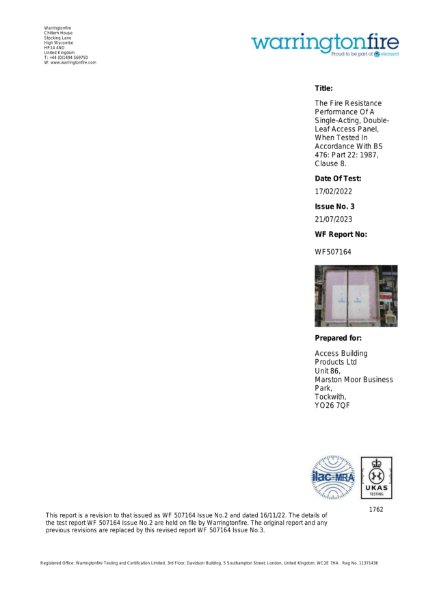

Warringtonfire
Certificate type

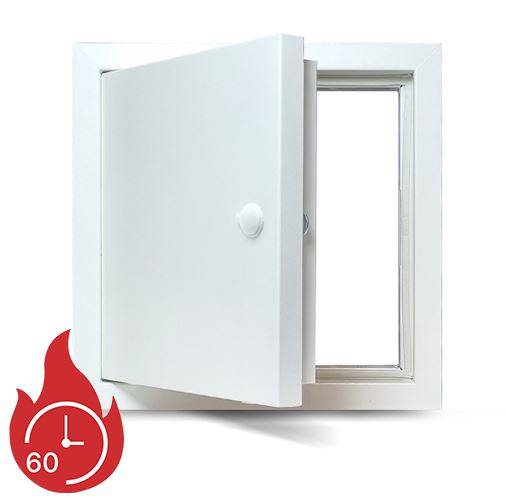

Fire rated access panel, 60 minutes for ceiling use and 120 minutes for wall use. Versatile access panel range available in a wide range of sizes
Application
Ceiling or wall mounted access panel.
Description
Access panel range, fire tested to 60 minutes for ceiling use up to 1200 x 600 mm (single door) and up to 1800 x 1200 mm (double door). Fire tested wall use 120 minutes up to 2280 x 735 mm (single door) and 2280 x 1470 mm (double door).
Features and benefits:
- The panel is made to fit into the opening (the outer frame is an extra 25 mm on each side), 25 mm picture frame (projects beyond the face of the opening), 50 mm deep panel (depth into the opening).
- 60 minute fire rating for ceiling use and 120 minutes for wall use.
- Colour white polyester powder coating, RAL 9010 with 20% gloss.
- Tested to BS 476 part 22: 1987 and Part J compliant.
- Available with budget lock (square end T-key) as standard or tamper proof lock or euro-profile lock (at extra cost).
- 36 dB sound reduction rating.
- Dual purpose for either walls or ceilings.
- Zintec steel for a corrosion resistant finish.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Rectangle Square |
Length | 1200 mm Guidance for specification option: Ceiling use single door (maximum). 1800 mm Guidance for specification option: Ceiling use double door (maximum). 2280 mm Guidance for specification option: Wall use single / door use (maximum). Bespoke Guidance for specification option: Made to order. |
Width | 600 mm Guidance for specification option: Ceiling use single door (maximum). 1200 mm Guidance for specification option: Ceiling use double door (maximum). 735 mm Guidance for specification option: Wall use single door (maximum). 1470 mm Guidance for specification option: Wall use double door (maximum). Bespoke Guidance for specification option: Made to order. |
Height | 50 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 60 minutes to BS 476-22. |
Position | Ceiling-mounted. |
Size | Guidance for specification option: Made to order. Consult manufacturer and insert requirements.
Manufacturer guidanceWhen selecting a access panel, please add 5 mm to the size when creating a structural opening. E.g. An access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm. |
Frame | Exposed picture frame type.Bead for taping and jointing. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Tamper proof lock.Europrofile lock.Manufacturer guidanceNote sizes over 600 x 600 mm on the hinged side have three point locking. Below this it’s a single budget lock. |
Operation | Concealed steel hinges, downward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Pure white, RAL 9010. |
Depth | 50 mm. |
Sound reduction | 36 dB. |
U-value | 0.78 W/(m²·K). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
