Fire Rated Paving Headpiece

Verified by manufacturer 5 months ago

Wallbarn Ltd

Paving headpiece for exterior Class A tiling/ paving projects.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Paving applications for exterior works on balconies, flat roofs and terraces.

Description

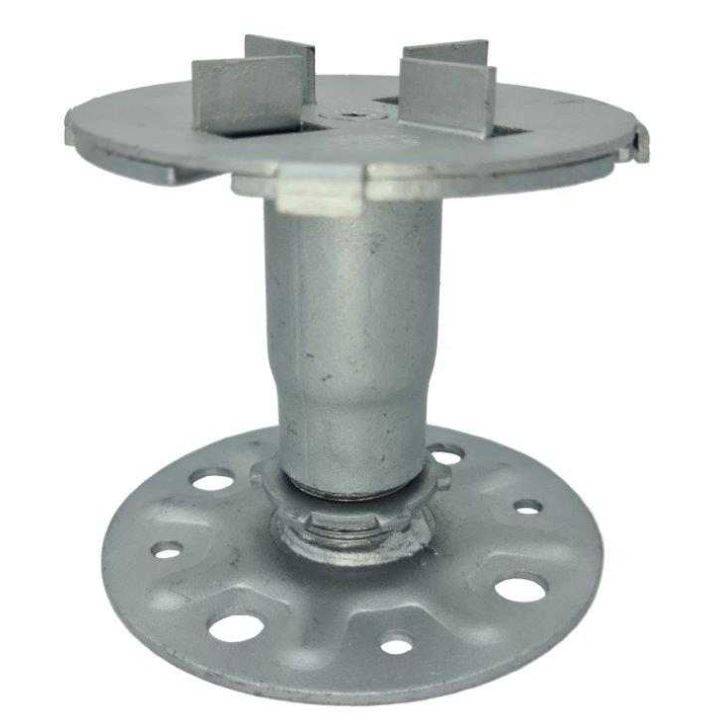

Paving headpiece that fits on to the Class A MetalPad Ex pedestal, Wallbarn's metal fixed height pads and all Wallbarn aluminium rails, without the need for mechanical fixing.


Features and benefits:

  • The lugged headpiece holds the tiles/ slabs securely whilst also providing a gap for drainage between each of the tiles or paving slabs.
  • Made of galvanized steel and coated in Zintec 200 to prevent corrosion.
  • Meets Class A fire rating.

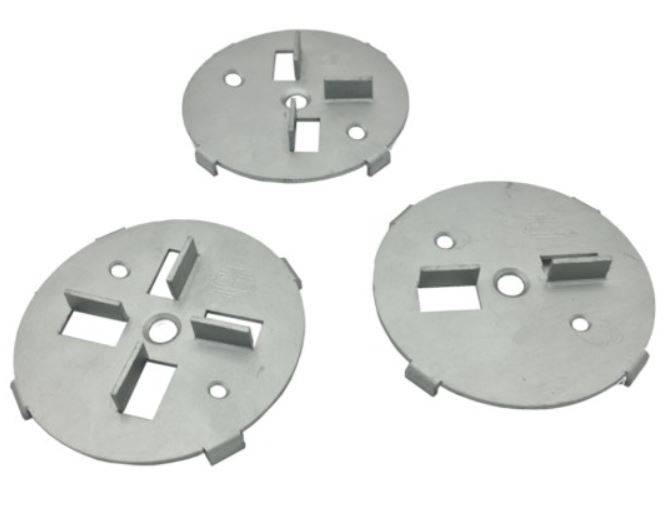

  • Available with different lug positions that make positioning tiles easier for any layout such as brickwork or stretcher bond.
  • Fits directly on to the MetalPad Ex pedestal, metal fixed height pads and all Wallbarn aluminium rails, without the need for mechanical fixing.

General information

Color

Silver

Finish

Galvanized

Coated

Guidance for specification option:

Zintec 200.

Material

Steel

Shape

Other

Length

95 mm

Width

95 mm

Height

3 mm

Warranty description

15 year

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J41/467 Support system for precast concrete paving slabs

J21/467 Support system for precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/395 Support pedestals

Product range

Substructure for Paving and Decking Systems
Fire Rated Paving and Decking Systems

Specification data - Decking and paving pedestals

Pedestal type

Headpiece.

Material

Galvanized steel.

Fire classification

To BS EN 13501-1, Class A1.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
